805.01.00 - CHASSIS REAR, INNER

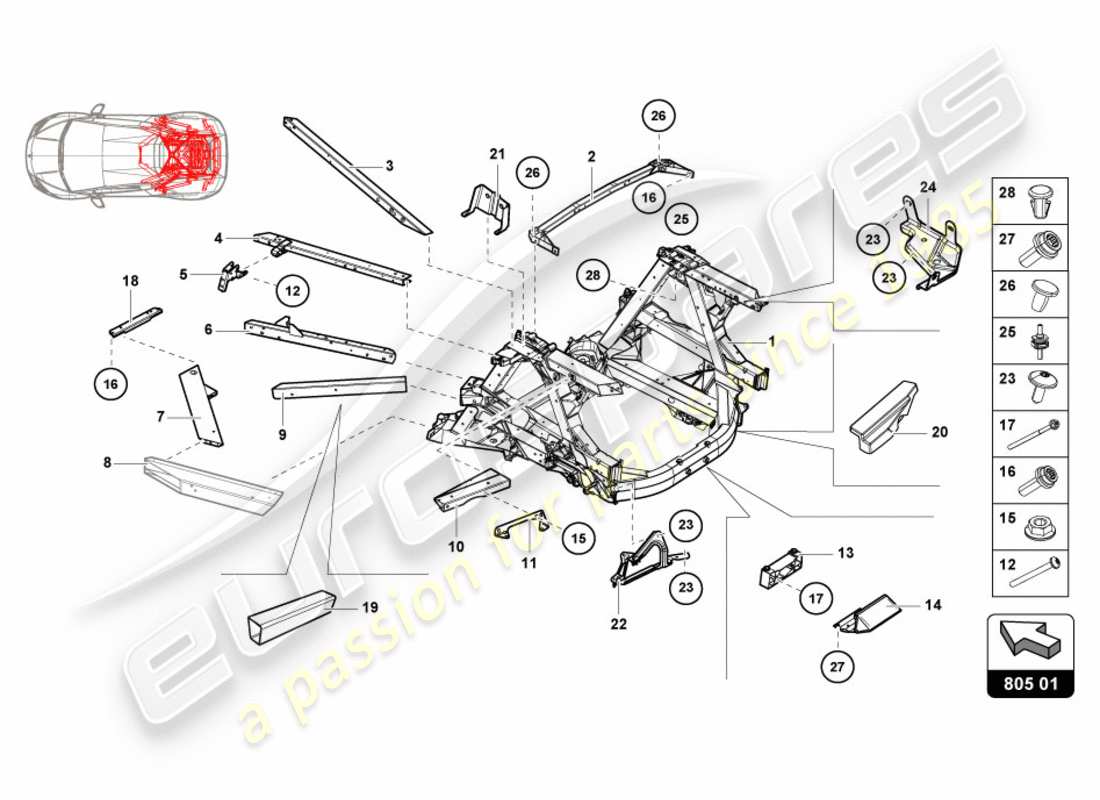

Lamborghini LP580-2 SPYDER (2016) CHASSIS REAR, INNER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4T8813031K
          Frame
          CONTACT YOUR AREA MANAGER-REAR ENGINE BAY
          from £9,500.00
          from £9,500.00
          # 002
          MPN: 4S0813441F
          REINFORCEMENT
          from £115.43
          from £115.43
          # 003
          -
          SUPPORT
          # 004
          -
          SUPPORT
          # 005
          -
          ADAPTER
          # 006
          MPN: 4T8814201E
          SUPPORT
          CONTACT YOUR AREA MANAGER-LEFT LOWER
          from £74.55
          from £74.55
          # 006
          MPN: 4T8814202D
          SUPPORT
          CONTACT YOUR AREA MANAGER-RIGHT LOWER
          from £74.55
          from £74.55
          # 007
          -
          CROSS MEMBER
          # 008
          -
          CROSS MEMBER
          # 009
          MPN: 4S0813253C
          REINFORCEMENT
          CONTACT YOUR AREA MANAGER-LEFT
          from £113.27
          from £113.27
          # 009
          MPN: 4S0813254B
          REINFORCEMENT
          CONTACT YOUR AREA MANAGER-RIGHT
          from £48.16
          from £48.16
          # 010
          MPN: 4T0810251B
          CARRIER
          LEFT
          from £41.47
          from £41.47
          # 010
          MPN: 4T0810252B
          CARRIER
          RIGHT
          from £39.73
          from £39.73
          # 011
          MPN: 4T0810439B
          BRACKET
          LEFT
          from £13.54
          from £13.54
          # 011
          MPN: 4T0810440B
          BRACKET
          RIGHT
          from £7.45
          from £7.45
          # 012
          MPN: N91097301
          HEXAGON SOCKET FLAT HEAD BOLT
          M6X45
          from £1.25
          from £1.25
          # 013
          MPN: 4S0813857B
          REINFORCEMENT
          CONTACT YOUR AREA MANAGER
          from £57.75
          from £57.75
          # 014
          MPN: 4T0813483B
          SUPPORT
          CONTACT YOUR AREA MANAGER
          from £74.42
          from £74.42
          # 015
          MPN: N01508210
          HEXAGON COLLAR NUT
          M6
          from £1.21
          from £1.21
          # 016
          MPN: N91128001
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M8X25
          from £0.95
          from £0.95
          # 017
          MPN: N10683301
          HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
          M10X115
          from £3.90
          from £3.90
          # 018
          MPN: 4S0813239C
          BRACE
          CONTACT YOUR AREA MANAGER
          from £24.54
          from £24.54
          # 019
          MPN: 4S0813945K
          SLEEVE
          TO BE USED FOR REF. 9 - CONTACT YOUR AREA MANAGER-LEFT
          from £166.02
          from £166.02
          # 020
          MPN: 4T0814329
          BRACKET
          VALID FOR 2WD VERSION FOR A MARKET USA, CANADA, SOUTH KOREA AND CHINA-LEFT (EUROPE, USA spec vehicles)
          from £182.02
          from £182.02
          # 020
          MPN: 4T0814330
          BRACKET
          VALID FOR 2WD VERSION FOR A MARKET USA, CANADA, SOUTH KOREA AND CHINA-RIGHT (EUROPE, USA spec vehicles)
          from £156.08
          from £156.08
          # 021
          MPN: 4T7810437B
          BRACKET
          LEFT
          from £24.51
          from £24.51
          # 021
          MPN: 4T7810438B
          BRACKET
          RIGHT
          from £24.51
          from £24.51
          # 022
          -
          ARM
          # 023
          -
          OVAL HEXAGON SOCKET HEAD BOLT
          # 024
          -
          BRACKET
          # 025
          MPN: 4T7813153
          ADJUSTING PIN
          from £227.41
          from £227.41
          # 026
          MPN: N90831902
          CAP CLOSURE
          from £2.04
          from £2.04
          # 027
          MPN: N10664801
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M8X20
          from £1.09
          from £1.09
          # 028
          MPN: 8D5827499
          STOP
          from £0.97
          from £0.97
