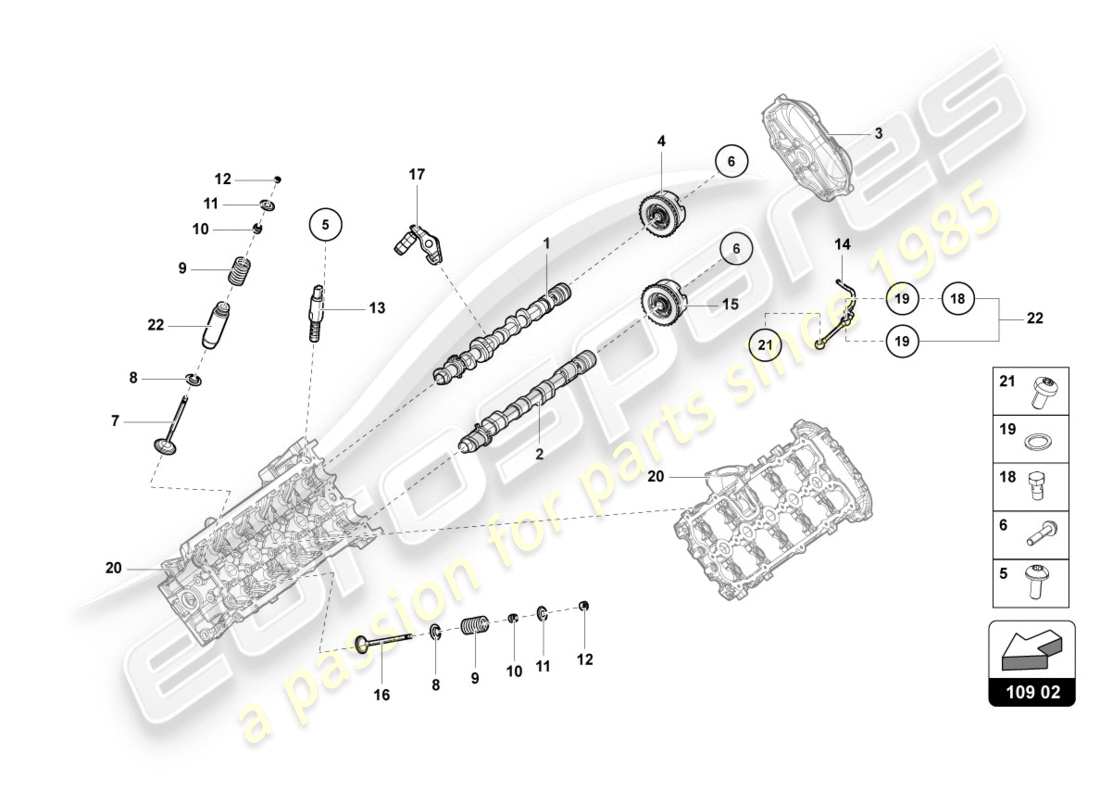

109.02.00 - CAMSHAFT, VALVES

Lamborghini LP580-2 SPYDER (2017) CAMSHAFT, VALVES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 07L109101BQ
                    camshaft
                    INLET CYLINDERS 1-5
                    from £512.74
                    from £512.74
                    # 001
                    MPN: 07L109103AP
                    camshaft
                    INLET CYLINDERS 6-10
                    from £512.74
                    from £512.74
                    # 002
                    MPN: 07L109102AN
                    camshaft
                    OUTLET CYLINDERS 1-5
                    from £512.74
                    from £512.74
                    # 002
                    MPN: 07L109104Q
                    camshaft
                    OUTLET CYLINDERS 6-10
                    from £512.74
                    from £512.74
                    # 003
                    MPN: 07L109285K
                    COVER
                    LEFT
                    from £109.38
                    from £109.38
                    # 003
                    MPN: 07L109286M
                    COVER
                    RIGHT
                    from £181.57
                    from £181.57
                    # 004
                    MPN: 07L109083F
                    CAMSHAFT ADJUSTER UNIT
                    INLET
                    Supersession
                    Supersession
                    # 005
                    MPN: N91068201
                    HEXAGON SOCKET FLAT HEAD BOLT
                    M4X10
                    from £0.53
                    from £0.53
                    # 006
                    MPN: N91042802
                    FLAT HEAD MULTI-POINT SOCKET BOLT
                    M12X1,25X60X30
                    from £3.82
                    from £3.82
                    # 007
                    MPN: 079109601E
                    INLET VALVE
                    103,97MM
                    from £32.86
                    from £32.86
                    # 008
                    MPN: 07L109629A
                    SPRING SUPPORT
                    from £3.38
                    from £3.38
                    # 009
                    MPN: 06E109623
                    VALVE SPRING
                    from £28.97
                    from £28.97
                    # 010
                    MPN: 036109675A
                    VALVE STEM SEAL
                    from £12.84
                    from £12.84
                    # 011
                    MPN: 06E109641A
                    SPRING DISC
                    from £10.86
                    from £10.86
                    # 012
                    MPN: 036109651A
                    COTTER, SPLIT
                    from £2.73
                    from £2.73
                    # 013
                    MPN: 07L109257
                    CONTROL VALVE
                    from £86.90
                    from £86.90
                    # 014
                    MPN: 07L121455J
                    COOLANT PIPE
                    LEFT
                    from £77.73
                    from £77.73
                    # 014
                    MPN: 07L121455L
                    COOLANT PIPE
                    RIGHT
                    from £77.73
                    from £77.73
                    # 015
                    MPN: 07L109084E
                    CAMSHAFT ADJUSTER UNIT
                    OUTLET
                    Supersession
                    Supersession
                    # 016
                    MPN: 07L109611D
                    EXHAUST VALVE
                    from £32.86
                    from £32.86
                    # 017
                    MPN: 079109409B
                    ROLLER ROCKER ARM
                    from £53.96
                    from £53.96
                    # 018
                    MPN: N0210756
                    BANJO BOLT
                    6
                    from £5.58
                    from £5.58
                    # 019
                    MPN: N0138063
                    SEAL RING
                    10X14
                    from £2.01
                    from £2.01
                    # 020
                    -
                    COMPLETE CYLINDER HEAD
                    # 021
                    MPN: WHT005227
                    OVAL HEXAGON SOCKET HEAD BOLT
                    M6X12
                    from £0.90
                    from £0.90
                    # 022
                    MPN: 06D103415N
                    VALVE GUIDE
                    from £2.73
                    from £2.73
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
