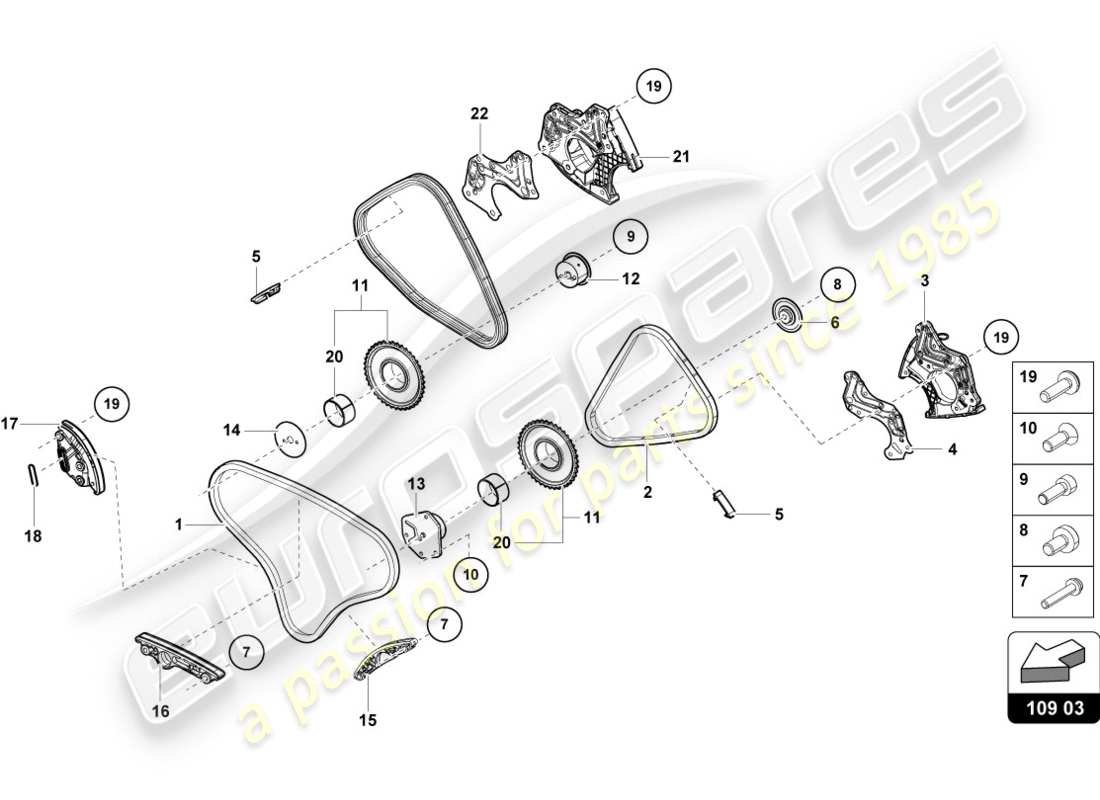

109.03.00 - TIMING CHAIN

Lamborghini LP580-2 SPYDER (2017) TIMING CHAIN Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 06E109465BC
                    TIMING CHAIN
                    UPPER CENTRE
                    Supersession
                    Supersession
                    # 002
                    MPN: 06E109465AS
                    TIMING CHAIN
                    RIGHT
                    Supersession
                    Supersession
                    # 002
                    MPN: 06E109465AT
                    TIMING CHAIN
                    LEFT
                    Supersession
                    Supersession
                    # 003
                    MPN: 079109217S
                    CHAIN TENSIONER
                    LEFT
                    Supersession
                    Supersession
                    # 004
                    MPN: 079109139J
                    SEAL
                    LEFT
                    from £11.51
                    from £11.51
                    # 005
                    MPN: 079109470
                    COVERING
                    from £3.38
                    from £3.38
                    # 006
                    MPN: 079109180A
                    AXIAL BEARING
                    from £12.93
                    from £12.93
                    # 007
                    MPN: N91129001
                    SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
                    M7X36
                    from £3.16
                    from £3.16
                    # 008
                    MPN: N90888502
                    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                    M8X16
                    from £1.65
                    from £1.65
                    # 009
                    MPN: N90962301
                    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                    M10X30
                    from £3.63
                    from £3.63
                    # 010
                    MPN: N90954903
                    HEX SOCKET COUNTERSUNK BOLT
                    M6X18
                    from £0.58
                    from £0.58
                    # 011
                    MPN: 06E109077N
                    CHAIN SPROCKET
                    Z=24
                    from £140.51
                    from £140.51
                    # 012
                    MPN: 079109224E
                    BEARING PIN
                    RIGHT
                    from £55.44
                    from £55.44
                    # 013
                    MPN: 079109224F
                    BEARING PIN
                    LEFT
                    from £61.05
                    from £61.05
                    # 014
                    MPN: 079109180D
                    AXIAL BEARING
                    from £6.58
                    from £6.58
                    # 015
                    MPN: 079109469AL
                    GUIDE RAIL
                    from £19.42
                    from £19.42
                    # 016
                    MPN: 079109469AM
                    GUIDE RAIL
                    from £16.91
                    from £16.91
                    # 017
                    MPN: 079109507AP
                    CHAIN TENSIONER
                    from £80.33
                    from £80.33
                    This part replaces part number 079109507T
                    # 018
                    MPN: 079109139L
                    SEAL
                    from £9.18
                    from £9.18
                    # 019
                    MPN: N10124304
                    OVAL HEXAGON SOCKET HEAD BOLT
                    M6X20
                    from £0.97
                    from £0.97
                    # 020
                    MPN: 079109247P
                    BEARING BUSH
                    from £8.48
                    from £8.48
                    # 021
                    MPN: 079109218AB
                    CHAIN TENSIONER
                    from £103.32
                    from £103.32
                    This part replaces part number 079109218S
                    # 022
                    MPN: 079109139K
                    SEAL
                    RIGHT
                    from £11.51
                    from £11.51
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
