lamborghini lp580-2 spyder (2017) exhaust manifolds parts diagram

253.02.00 - EXHAUST MANIFOLDS

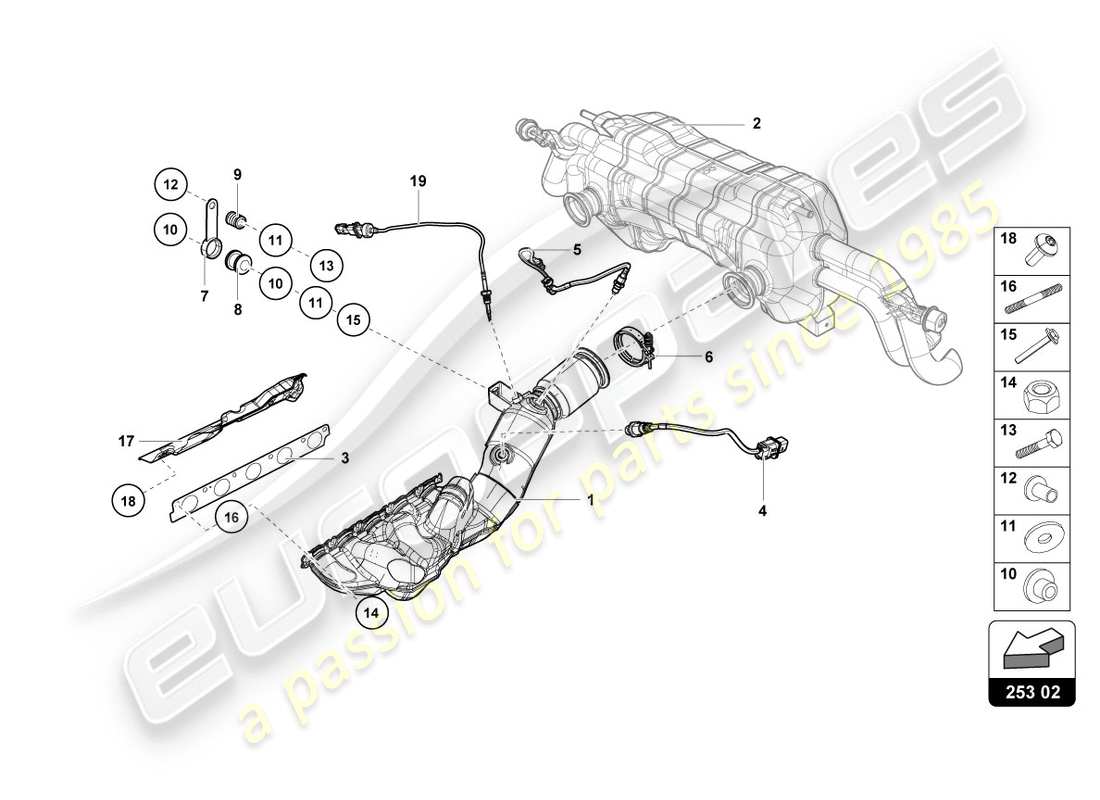

Lamborghini LP580-2 SPYDER (2017) EXHAUST MANIFOLDS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 420251211T
            EXHAUST MANIFOLD WITH CATALYTIC CONVERTER
            LEFT
            from £1,747.66
            from £1,747.66
            # 001
            MPN: 420251212T
            EXHAUST MANIFOLD WITH CATALYTIC CONVERTER
            RIGHT
            from £3,177.56
            from £3,177.56
            # 002
            -
            REAR SILENCER
            # 003
            MPN: 07L253039P
            SEAL
            Supersession
            Supersession
            # 004
            MPN: 4S0906262F
            LAMBDA PROBE
            6 PIN BLACK RIGHT
            from £199.74
            from £199.74
            # 004
            MPN: 4S0906262G
            LAMBDA PROBE
            6 PIN BLACK LEFT
            from £199.74
            from £199.74
            # 005
            MPN: 4S0906262H
            LAMBDA PROBE
            4 PIN BLACK
            from £109.86
            from £109.86
            # 006
            MPN: 420251143
            CLIP
            from £55.00
            from £55.00
            # 007
            MPN: 4A0253295R
            STRAP
            RIGHT
            from £11.34
            from £11.34
            # 007
            MPN: 8K0253295
            STRAP
            LEFT
            from £2.79
            from £2.79
            # 008
            MPN: 3B0253149
            RUBBER BUSH
            from £7.53
            from £7.53
            # 009
            MPN: 893253353
            PRESSURE SPRING
            from £8.51
            from £8.51
            # 010
            MPN: 4B0253205D
            SPACER PIPE
            LEFT
            from £6.83
            from £6.83
            # 010
            MPN: 4B0253205G
            SPACER PIPE
            RIGHT
            from £4.80
            from £4.80
            # 011
            MPN: N01167026
            WASHER
            8,4X24X2
            from £0.75
            from £0.75
            # 012
            MPN: 4B0253205C
            SPACER SLEEVE
            from £2.02
            from £2.02
            # 013
            MPN: N0403016
            HEXAGON BOLT
            M8X48
            from £1.84
            from £1.84
            # 014
            MPN: N90894601
            HEXAGON NUT, SELF-LOCKING
            M8
            from £1.47
            from £1.47
            # 016
            MPN: N91021502
            ROUND HD. SCREW
            M8X25
            from £1.34
            from £1.34
            # 017
            MPN: 420199455
            GUARD PLATE
            LEFT
            from £53.62
            from £53.62
            # 017
            MPN: 420199456
            GUARD PLATE
            RIGHT
            from £29.49
            from £29.49
            # 018
            MPN: N90780901
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.52
            from £0.52
            # 019
            MPN: 4S0919529B
            TEMPERATURE SENSOR
            2 PIN
            from £97.97
            from £97.97
            # 020
            MPN: 4S0906303
            BRACKET
            (UK, USA spec vehicles)
            from £5.97
            from £5.97
