lamborghini lp580-2 spyder (2017) a/c condenser parts diagram

260.01.00 - A/C CONDENSER

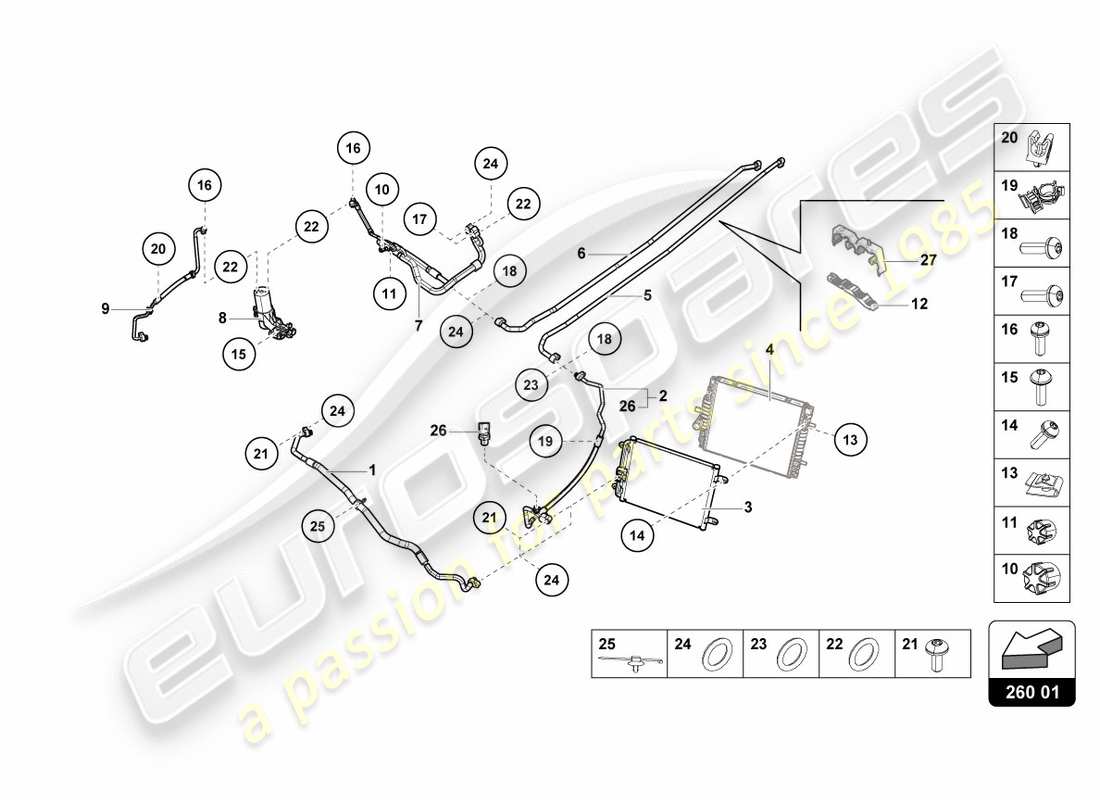

Lamborghini LP580-2 SPYDER (2017) A/C CONDENSER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 4S0816750D
                        PIPE
                        from £129.27
                        from £129.27
                        # 002
                        MPN: 4S0816726G
                        PIPE
                        Supersession
                        Supersession
                        # 003
                        MPN: 4S0816411A
                        A/C CONDENSER
                        from £326.84
                        from £326.84
                        # 004
                        -
                        COOLER FOR COOLANT
                        # 007
                        MPN: 4S0820738C
                        PIPE
                        from £675.29
                        from £675.29
                        # 008
                        MPN: 4S0820191D
                        DRIER
                        from £66.10
                        from £66.10
                        # 009
                        MPN: 4S0816741A
                        PIPE
                        from £81.46
                        from £81.46
                        # 010
                        -
                        BUNGS
                        # 011
                        -
                        BUNGS
                        # 012
                        -
                        RETAINING BASE
                        # 013
                        MPN: N90342503
                        SPEED NUT
                        M6X19,5X18
                        from £0.98
                        from £0.98
                        # 014
                        MPN: N10347003
                        SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD
                        M6X16
                        from £3.28
                        from £3.28
                        # 015
                        MPN: N10156206
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X30
                        from £0.98
                        from £0.98
                        # 016
                        MPN: N10347103
                        HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                        M6X20
                        from £0.81
                        from £0.81
                        # 017
                        MPN: N10414402
                        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
                        M8X28
                        from £1.87
                        from £1.87
                        # 018
                        MPN: N10347404
                        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
                        M6X35
                        from £0.73
                        from £0.73
                        # 019
                        MPN: 4S0260759B
                        CLIP
                        from £1.84
                        from £1.84
                        # 020
                        MPN: N90943501
                        HOSE BRACKET
                        from £0.84
                        from £0.84
                        # 021
                        MPN: N91193003
                        HEX SOCKET HEAD BOLT (COMBI)
                        M6X28
                        from £1.79
                        from £1.79
                        # 022
                        MPN: 3D0260749C
                        SEAL RING
                        9,5X2,5
                        from £3.50
                        from £3.50
                        # 023
                        MPN: 4E0260749A
                        SEAL RING
                        11X2,5
                        from £3.82
                        from £3.82
                        # 024
                        MPN: 4E0260749B
                        SEAL RING
                        13,7X2,5
                        from £3.50
                        from £3.50
                        # 025
                        MPN: N90926601
                        CABLE TIES
                        4,6X200MM 6,5/2,5-3,5MM OUTER
                        from £1.13
                        from £1.13
                        # 026
                        MPN: 4H0959126B
                        PRESSURE SENDER
                        Supersession
                        Supersession
                        This part replaces part number 4H0959126A
                        # 027
                        -
                        RETAINING BASE
                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
