lamborghini lp580-2 spyder (2017) power steering parts diagram

422.01.00 - POWER STEERING

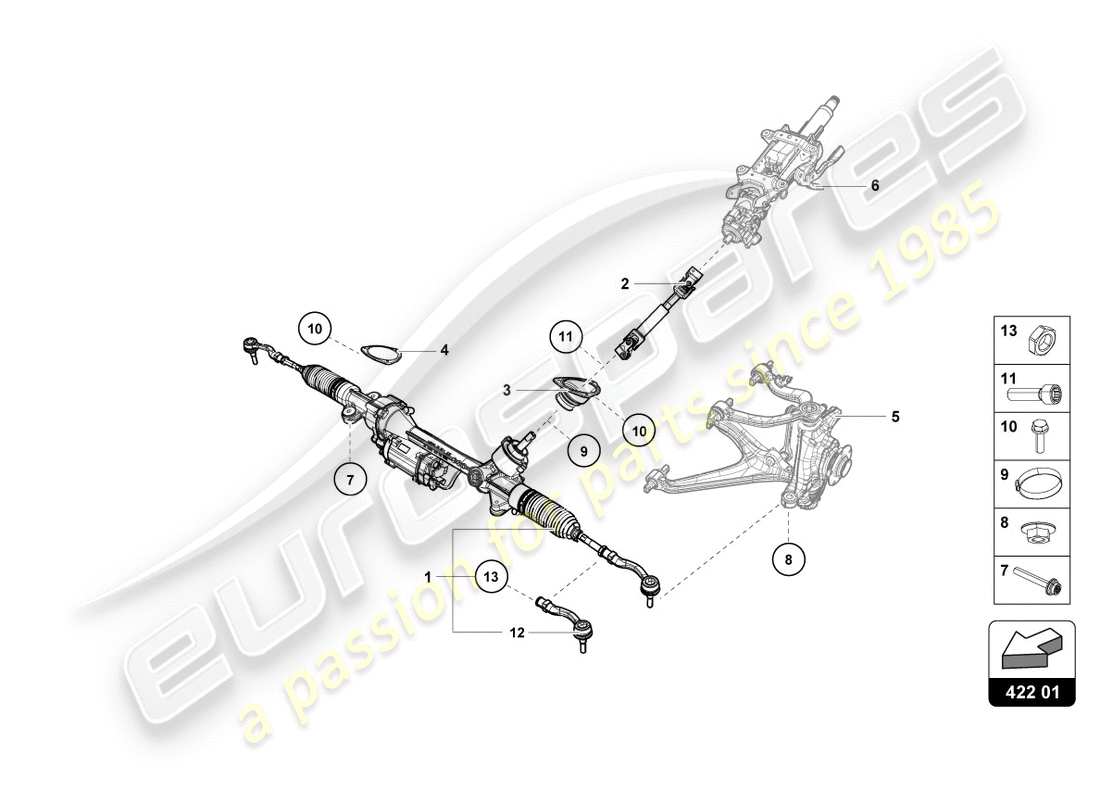

Lamborghini LP580-2 SPYDER (2017) POWER STEERING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 4S1423050K
STEERING GEAR WITH INT. TRACK ROD JOINT
LHD (EUROPE, USA spec vehicles)
from £8,261.66
from £8,261.66
# 001
MPN: 4S1423050L
STEERING GEAR WITH INT. TRACK ROD JOINT
ACTIVE DYNAMIC STEERING- LHD (EUROPE, USA spec vehicles)
from £5,633.15
from £5,633.15
# 001
MPN: 4S2423050K
STEERING GEAR WITH INT. TRACK ROD JOINT
RHD (UK spec vehicles)
from £6,177.87
from £6,177.87
This part replaces part number 4S2423050F
# 001
MPN: 4S2423050L
STEERING GEAR WITH INT. TRACK ROD JOINT
ACTIVE DYNAMIC STEERING- RHD (UK spec vehicles)
from £3,740.23
from £3,740.23
# 002
MPN: 4S1419753B
INTERMEDIATE STEERING SHAFT
LHD (EUROPE, USA spec vehicles)
from £150.28
from £150.28
# 002
MPN: 4S2419753B
INTERMEDIATE STEERING SHAFT
RHD (UK spec vehicles)
from £150.28
from £150.28
# 003
MPN: 4S0423429B
SEAL
Driver side
from £10.87
from £10.87
# 004
MPN: 4S0423430B
SEAL
PASSENGER SIDE
from £10.87
from £10.87
# 005
-
Steering Column
# 006
-
Steering Column
# 007
MPN: N91153101
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X70-M10X70-ITR-TM
from £1.87
from £1.87
# 008
MPN: WHT004593
12 POINT SOCKET SHOULDERED NUT SELF-LOCKING
M12X1,5-M12X1,5
from £2.95
from £2.95
# 009
MPN: N10715301
CLAMP
57,5X10X0,8
from £2.77
from £2.77
# 010
MPN: N90533003
BOLT, HEX. HD. (COMBI.) SELF-LOCKING
M5X10-M5X10
from £1.93
from £1.93
# 011
MPN: N10518405
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
M8X30-M8X30
from £2.28
from £2.28
# 012
MPN: 4S0423811B
TIE ROD END
LEFT
from £105.05
from £105.05
# 012
MPN: 4S0423812B
TIE ROD END
RIGHT
from £105.05
from £105.05
# 013
MPN: N01116417
HEXAGON NUT
M16X1.5-M16X1,5
from £2.90
from £2.90
