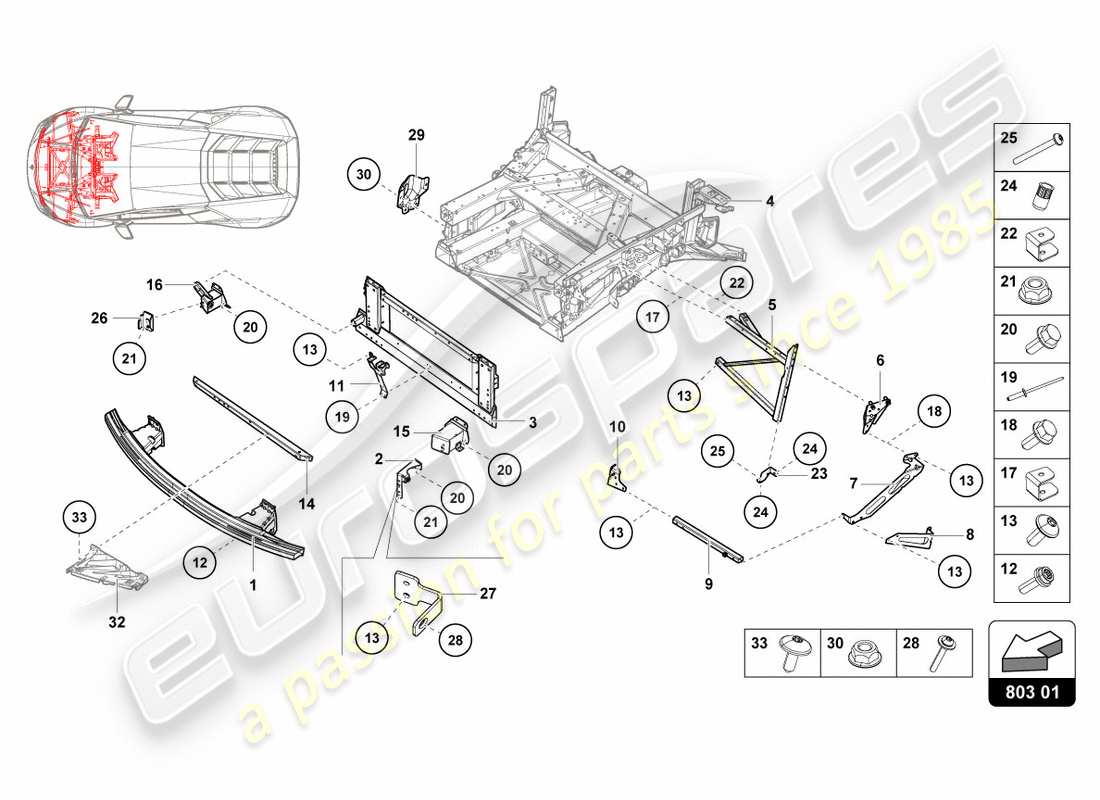

803.01.00 - FRONT FRAME

Lamborghini LP580-2 SPYDER (2017) FRONT FRAME Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 4T0807109C
      STORAGE FRAME
      CONTACT YOUR AREA MANAGER-FRONT (EUROPE, UK spec vehicles)
      from £2,091.38
      from £2,091.38
      # 001
      MPN: 4T0807109D
      STORAGE FRAME
      CONTACT YOUR AREA MANAGER-FRONT (USA spec vehicles)
      from £1,621.22
      from £1,621.22
      # 002
      MPN: 4T0805177A
      MOUNTING BAR
      LEFT
      Supersession
      Supersession
      # 002
      MPN: 4T0805178A
      MOUNTING BAR
      RIGHT
      Supersession
      Supersession
      # 003
      MPN: 4T0805851C
      CROSS MEMBER
      CONTACT YOUR AREA MANAGER-FRONT
      from £619.95
      from £619.95
      # 004
      -
      CHASSIS
      # 005
      MPN: 4T0806191B
      BRACE
      CONTACT YOUR AREA MANAGER-LEFT
      from £907.90
      from £907.90
      # 005
      MPN: 4T0806192B
      BRACE
      CONTACT YOUR AREA MANAGER-RIGHT
      from £907.90
      from £907.90
      # 006
      MPN: 4T0806125D
      SUPPORT
      LEFT
      Supersession
      Supersession
      This part replaces part number 4T0806125C
      # 006
      MPN: 4T0806126D
      SUPPORT
      CONTACT YOUR AREA MANAGER-RIGHT
      Supersession
      Supersession
      # 007
      MPN: 4T0805327C
      ARM
      CONTACT YOUR AREA MANAGER-LEFT FRONT
      from £61.04
      from £61.04
      # 007
      MPN: 4T0805328C
      ARM
      CONTACT YOUR AREA MANAGER-RIGHT FRONT
      from £122.08
      from £122.08
      # 008
      MPN: 4T0805379C
      ARM
      CONTACT YOUR AREA MANAGER-LEFT FRONT
      from £54.60
      from £54.60
      # 008
      MPN: 4T0805380C
      ARM
      CONTACT YOUR AREA MANAGER-RIGHT FRONT
      from £109.20
      from £109.20
      # 009
      MPN: 4T0805667C
      REINFORCEMENT
      LEFT
      Supersession
      Supersession
      # 009
      MPN: 4T0805668C
      REINFORCEMENT
      RIGHT
      Supersession
      Supersession
      # 010
      MPN: 4T0805255D
      REINFORCEMENT
      LEFT
      from £27.63
      from £27.63
      # 010
      MPN: 4T0805256D
      REINFORCEMENT
      RIGHT
      from £27.63
      from £27.63
      # 011
      MPN: 4T0805532B
      ARM
      CONTACT YOUR AREA MANAGER
      from £63.36
      from £63.36
      # 012
      MPN: N91104901
      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
      M8X25
      from £1.07
      from £1.07
      # 013
      MPN: N91042302
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.63
      from £0.63
      # 014
      MPN: 4T0805563B
      LOCK CARRIER
      CONTACT YOUR AREA MANAGER
      from £100.26
      from £100.26
      # 015
      MPN: 4T0807551E
      ARM
      CONTACT YOUR AREA MANAGER-LEFT
      from £247.73
      from £247.73
      This part replaces part number 4T0807551D
      # 016
      MPN: 4T0807552E
      ARM
      CONTACT YOUR AREA MANAGER-RIGHT
      from £194.98
      from £194.98
      This part replaces part number 4T0807552D
      # 017
      MPN: 4S0806507B
      RETAINING PLATE
      LEFT
      from £10.34
      from £10.34
      # 017
      MPN: 4S0806508B
      RETAINING PLATE
      RIGHT
      from £18.17
      from £18.17
      # 018
      MPN: N90533005
      HEXAGON HEAD BOLT (COMBI)
      M6X20
      from £1.21
      from £1.21
      This part replaces part number N90533002
      # 019
      MPN: N90692402
      POP RIVET
      4,8X10 N906924
      from £1.13
      from £1.13
      # 020
      MPN: N10049308
      HEXAGON HEAD BOLT (COMBI)
      M8X20
      from £1.06
      from £1.06
      # 021
      MPN: N10609201
      HEXAGON COLLAR NUT
      M8
      from £0.53
      from £0.53
      # 022
      MPN: 4S0805371B
      RETAINING PLATE
      LEFT
      from £16.44
      from £16.44
      # 022
      MPN: 4S0805372B
      RETAINING PLATE
      RIGHT
      from £16.44
      from £16.44
      # 023
      MPN: 4T0805259B
      BRACKET
      CONTACT YOUR AREA MANAGER-LEFT LOWER
      from £8.37
      from £8.37
      # 023
      MPN: 4T0805260B
      BRACKET
      CONTACT YOUR AREA MANAGER-RIGHT LOWER
      from £8.37
      from £8.37
      # 024
      MPN: N91097301
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X45
      from £1.23
      from £1.23
      # 025
      MPN: N10009507
      HEXAGON HEAD BOLT (COMBI)
      M6X18
      from £0.52
      from £0.52
      # 026
      MPN: 4T0803662
      REINFORCEMENT
      (USA spec vehicles)
      from £19.72
      from £19.72
      # 027
      MPN: 4T0805618
      ARM
      from £26.55
      from £26.55
      # 028
      MPN: N10442204
      HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
      M6X40
      from £1.28
      from £1.28
      # 029
      MPN: 4T0806591B
      BRACKET
      LEFT
      from £40.12
      from £40.12
      # 029
      MPN: 4T0806592B
      BRACKET
      RIGHT
      from £40.12
      from £40.12
      # 030
      MPN: N01508210
      HEXAGON COLLAR NUT
      M6 (UK, USA spec vehicles)
      from £1.21
      from £1.21
      # 031
      MPN: WHT007052
      FLOW DRILL SCREW
      from £0.52
      from £0.52
      # 032
      -
      BRACKET
      # 033
      MPN: N91042302
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.63
      from £0.63
