lamborghini lp580-2 spyder (2017) fuses parts diagram

971.11.00 - FUSES

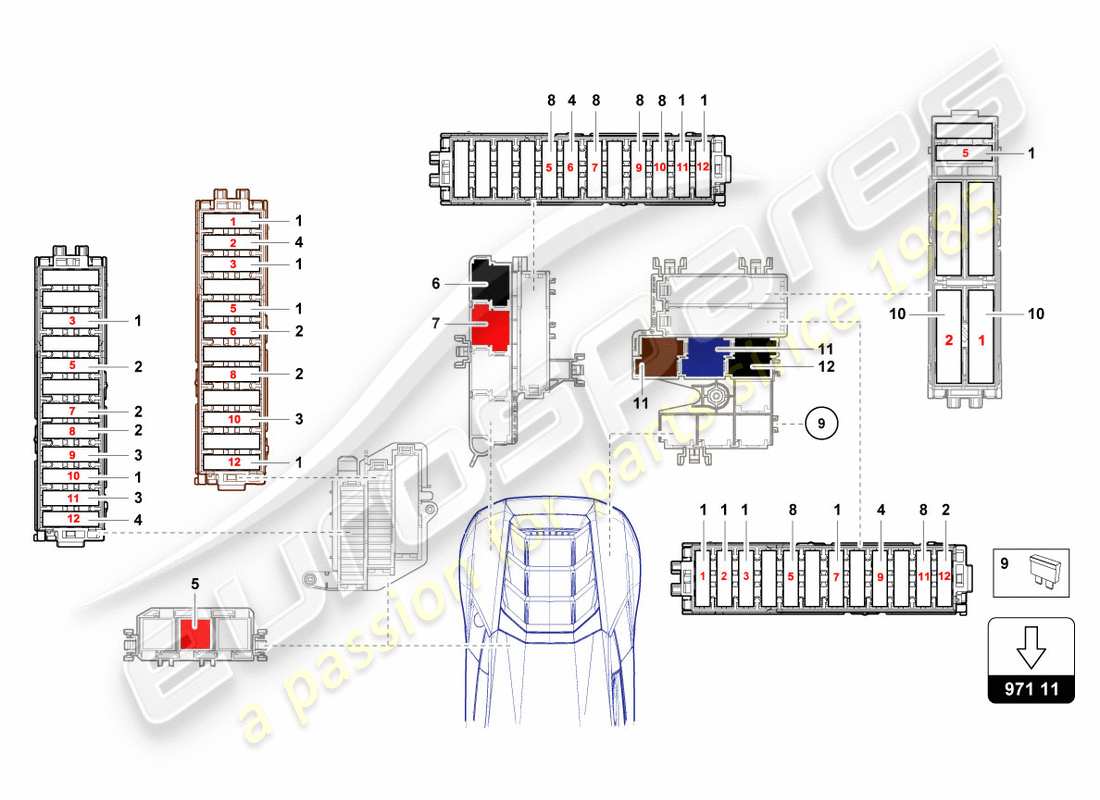

Lamborghini LP580-2 SPYDER (2017) FUSES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: N01713116
FLAT FUSE 19/2X5
5A-5A -LT BROWN-
from £0.75
from £0.75
# 002
MPN: N01713115
FLAT FUSE 19/2X5
30A-30A-LT GREEN-
from £0.52
from £0.52
# 003
MPN: N01713113
FLAT FUSE 19/2X5
20A-20A -YELLOW-
from £0.78
from £0.78
# 004
MPN: N01713111
FLAT FUSE 19/2X5
10A-10A -RED-
from £0.77
from £0.77
# 005
MPN: 4H0951253C
RELAY
RED- /646
from £15.47
from £15.47
# 006
MPN: 4H0951253A
RELAY
BLACK- /646
from £15.47
from £15.47
This part replaces part number 8D0951253A which we have in stock - and 1 more. Click to view details
# 007
MPN: 4H0951253A
RELAY
RED- /646
from £15.47
from £15.47
This part replaces part number 8D0951253A which we have in stock - and 1 more. Click to view details
# 008
MPN: N01713112
FLAT FUSE 19/2X5
15A-15A -LT BLUE-
from £0.75
from £0.75
# 009
MPN: N01713120
FLAT FUSE 19/2X5
40A-40A -ORANGE-
from £0.92
from £0.92
# 010
MPN: N10251901
FLAT FUSE 29/2X8
50A MAXI FUSE-40A -ORANGE-
from £3.63
from £3.63
# 011
MPN: 4H0951253A
RELAY
SPECIFY COLOR : BROWN OR BLUE- /646
from £15.47
from £15.47
This part replaces part number 8D0951253A which we have in stock - and 1 more. Click to view details
# 012
MPN: 4H0951253C
RELAY
BLACK- /646
from £15.47
from £15.47
