lamborghini lp580-2 spyder (2018) dashboard parts diagram

857.03.00 - DASHBOARD

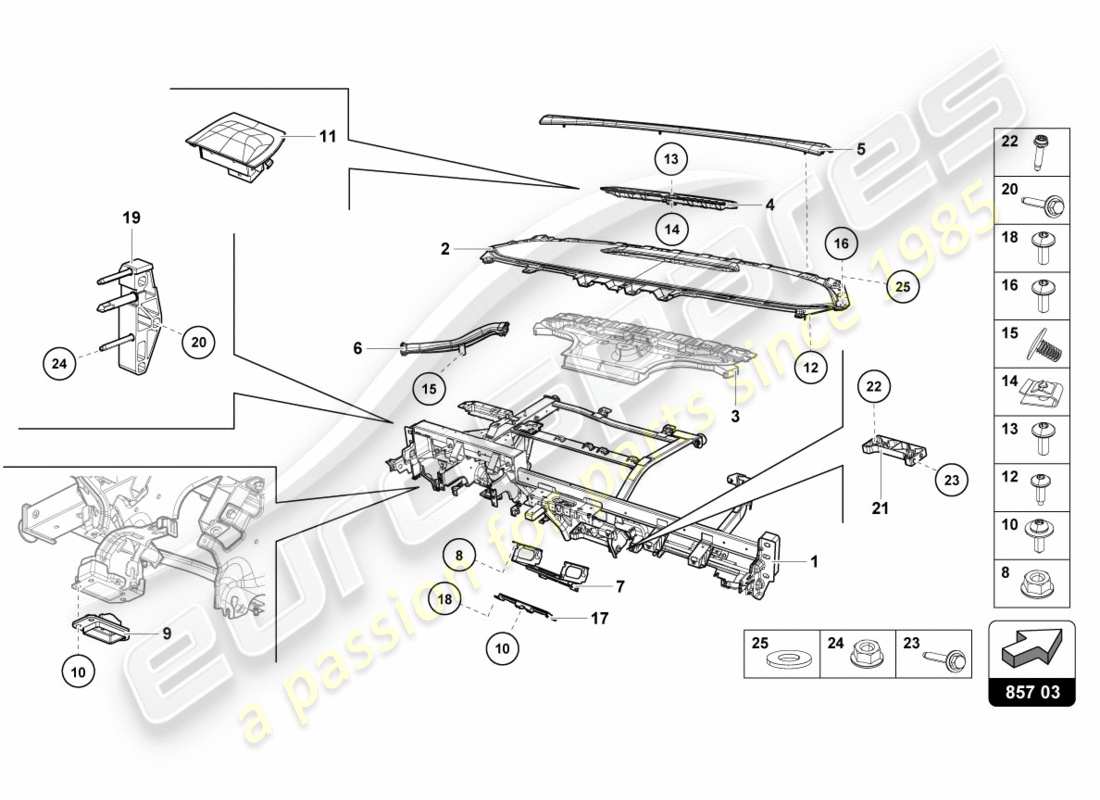

Lamborghini LP580-2 SPYDER (2018) DASHBOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4T1858003F
          CROSS MEMBER FOR DASH PANEL
          LHD (EUROPE, USA spec vehicles)
          from £1,361.82
          from £1,361.82
          # 001
          MPN: 4T2858003D
          CROSS MEMBER FOR DASH PANEL
          RHD (UK spec vehicles)
          from £630.11
          from £630.11
          # 002
          MPN: 4T1857003B
          DASHBOARD
          LEATHER - SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
          from £1,608.25
          from £1,608.25
          # 002
          MPN: 4T1857003C
          DASHBOARD
          ALCANTARA - SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
          from £910.69
          from £910.69
          # 002
          MPN: 4T2857003B
          DASHBOARD
          LEATHER - SUPPLY VIN- RHD (UK spec vehicles)
          from £1,608.25
          from £1,608.25
          # 002
          MPN: 4T2857003C
          DASHBOARD
          ALCANTARA - SUPPLY VIN- RHD (UK spec vehicles)
          from £677.25
          from £677.25
          # 003
          -
          DASHBOARD - LOWER PART, CENTER
          # 004
          MPN: 4T0819632B
          AIR VENT
          from £48.50
          from £48.50
          # 005
          MPN: 4T0858345AGU2
          COVER
          ARTIFICIAL LEATHER-BROWN
          from £427.14
          from £427.14
          # 005
          MPN: 4T0858345AQG8
          COVER
          ARTIFICIAL LEATHER-BLACK
          from £246.82
          from £246.82
          # 006
          MPN: 4T1819869
          AIR GUIDE CHANNEL
          LHD-LEFT (EUROPE, USA spec vehicles)
          from £23.52
          from £23.52
          # 006
          MPN: 4T1819870
          AIR GUIDE CHANNEL
          LHD-RIGHT (EUROPE, USA spec vehicles)
          from £23.52
          from £23.52
          # 006
          MPN: 4T2819869
          AIR GUIDE CHANNEL
          RHD-LEFT (UK spec vehicles)
          from £23.52
          from £23.52
          # 006
          MPN: 4T2819870
          AIR GUIDE CHANNEL
          RHD-RIGHT (UK spec vehicles)
          from £23.52
          from £23.52
          # 007
          MPN: 4T1035329
          RETAINER FOR RADIO UNIT
          LHD (EUROPE, USA spec vehicles)
          from £358.83
          from £358.83
          # 007
          MPN: 4T2035329
          RETAINER FOR RADIO UNIT
          RHD (UK spec vehicles)
          from £358.83
          from £358.83
          # 008
          MPN: N10017307
          HEXAGON COLLAR NUT
          M5
          from £1.16
          from £1.16
          # 009
          MPN: 470858357
          TRIM
          'OBD'
          from £26.85
          from £26.85
          # 010
          MPN: N10738101
          HEX SOCKET HEAD BOLT (COMBI)
          M5X16
          from £0.55
          from £0.55
          # 011
          MPN: 4H0907539
          SUN SENSOR
          from £6.99
          from £6.99
          # 012
          MPN: N90897402
          HEXAGON SOCKET HEAD PANEL BOLT
          5X16
          from £0.52
          from £0.52
          # 013
          MPN: N10738101
          HEX SOCKET HEAD BOLT (COMBI)
          M5X16
          from £0.52
          from £0.52
          # 014
          MPN: N01166623
          WASHER
          6,4X18X1,6
          from £0.96
          from £0.96
          This part replaces part number WHT000909
          # 015
          MPN: 400863119
          BUNGS
          8X14,5
          from £0.53
          from £0.53
          This part replaces part number 008930807
          # 016
          MPN: N90944603
          OVAL HEXAGON SOCKET HEAD BOLT
          M5X12
          from £0.71
          from £0.71
          # 017
          MPN: 4T0857167
          ARM
          from £9.18
          from £9.18
          # 018
          MPN: N90944604
          OVAL HEXAGON SOCKET HEAD BOLT
          M5X12
          from £0.72
          from £0.72
          # 019
          MPN: 4S1857021A
          SECURING BRACKET
          LEFT LHD (EUROPE, USA spec vehicles)
          from £17.36
          from £17.36
          # 019
          MPN: 4S1857022A
          SECURING BRACKET
          RIGHT LHD (EUROPE, USA spec vehicles)
          from £17.36
          from £17.36
          # 019
          MPN: 4S2857021A
          SECURING BRACKET
          LEFT RHD (UK spec vehicles)
          from £17.36
          from £17.36
          # 019
          MPN: 4S2857022A
          SECURING BRACKET
          RIGHT RHD (UK spec vehicles)
          from £17.36
          from £17.36
          # 020
          MPN: N10770301
          FITTED BOLT, HEXAGON HEAD
          M8X75
          from £1.28
          from £1.28
          # 021
          MPN: 4S0857245
          SUPPORT
          from £16.03
          from £16.03
          # 022
          MPN: N90870602
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M8X35
          from £2.06
          from £2.06
          # 023
          MPN: N90966002
          HEXAGON HEAD BOLT (COMBI)
          M8X25
          from £1.79
          from £1.79
          # 024
          MPN: N90761103
          HEXAGON COLLAR NUT SELF-LOCKING
          M8
          from £1.47
          from £1.47
          # 025
          MPN: N91109201
          WASHER
          5,3X20X1
          from £0.98
          from £0.98
          This part replaces part number 008400508
