lamborghini lp580-2 spyder (2018) cross member rear parts diagram

871.04.00 - CROSS MEMBER REAR

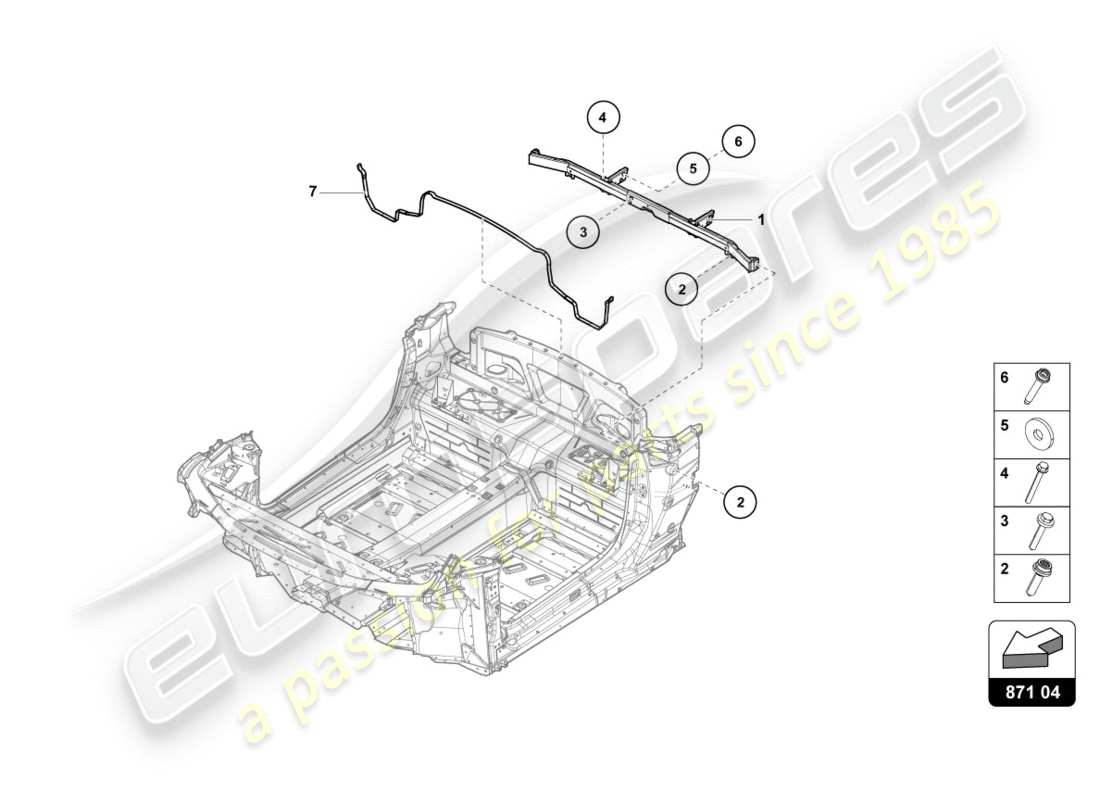

Lamborghini LP580-2 SPYDER (2018) CROSS MEMBER REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 4T7701061
    CROSS MEMBER
    rear
    from £506.46
    from £506.46
    # 002
    MPN: N10665002
    FLAT HEAD MULTI-POINT SOCKET BOLT
    M8X30
    from £3.55
    from £3.55
    # 003
    MPN: N90696702
    HEXAGON HEAD BOLT (COMBI)
    M8X50
    from £3.38
    from £3.38
    # 004
    MPN: N91073402
    HEX COLLARED BOLT
    M8X75
    from £2.52
    from £2.52
    # 005
    MPN: N90477302
    WASHER
    8,4X24X3
    from £0.54
    from £0.54
    # 006
    MPN: N10682501
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
    M8X50
    from £1.89
    from £1.89
    # 007
    MPN: 4T7825403B
    SEAL FOR CONV. TOP STOWAGE BOX
    from £7.70
    from £7.70
