lamborghini lp610-4 coupe (2016) complete cylinder head parts diagram

103.06.00 - COMPLETE CYLINDER HEAD

Lamborghini LP610-4 COUPE (2016) COMPLETE CYLINDER HEAD Parts Diagram

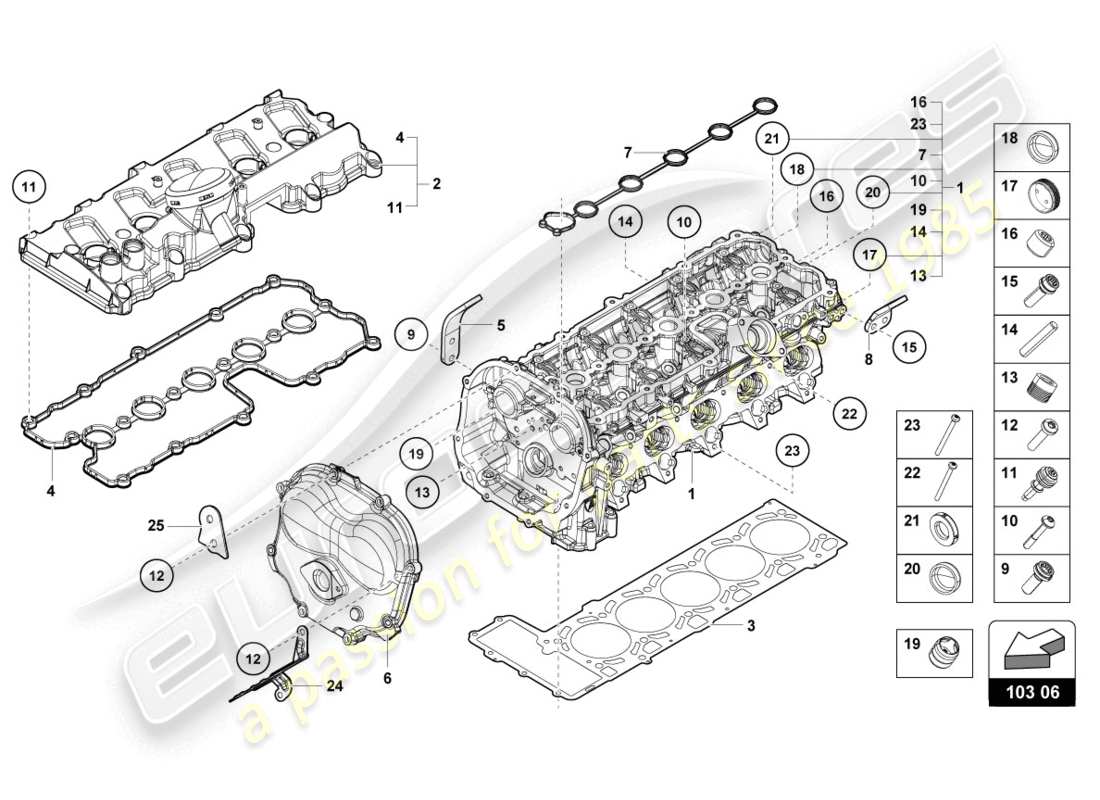

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 07L103063BC
                  COMPLETE CYLINDER HEAD
                  CYLINDERS 6-10 LEFT
                  from £6,527.23
                  from £6,527.23
                  # 002
                  MPN: 07L103471AA
                  CYLINDER HEAD COVER WITH GASKET
                  LEFT
                  Supersession
                  Supersession
                  # 003
                  MPN: 07L103383BA
                  CYLINDER HEAD GASKET
                  CYLINDERS 6-10 LEFT
                  from £105.49
                  from £105.49
                  This part replaces part number 07L103383AH - and 1 more. Click to view details
                  # 004
                  MPN: 07L103483J
                  SEAL
                  from £31.12
                  from £31.12
                  # 005
                  MPN: 07L103390M
                  TRANSPORTATION SHACKLE
                  from £11.51
                  from £11.51
                  # 006
                  MPN: 07L109285K
                  COVER
                  LEFT
                  from £109.38
                  from £109.38

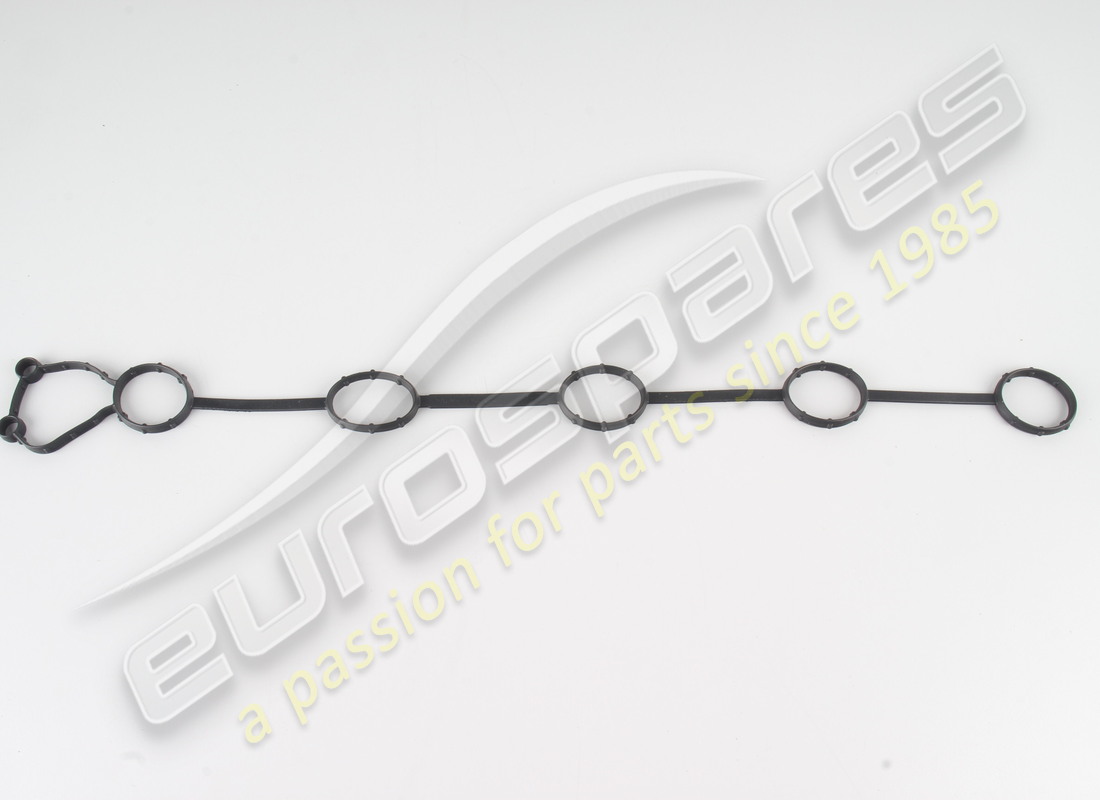

                  # 007
                  MPN: 07L103649A
                  SEAL
                  CYLINDERS 6-10
                  from £13.84
                  from £13.84
                  # 008
                  MPN: 07L103390R
                  TRANSPORTATION SHACKLE
                  from £4.28
                  from £4.28
                  # 009
                  MPN: N91084201
                  SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
                  M8X25
                  from £2.13
                  from £2.13
                  # 010
                  MPN: N91127602
                  HEXAGON SOCKET FLAT HEAD BOLT
                  M6X35X16
                  from £1.27
                  from £1.27
                  # 011
                  MPN: 06B103831J
                  HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE
                  from £6.19
                  from £6.19
                  # 012
                  MPN: N91068001
                  HEXAGON SOCKET FLAT HEAD BOLT
                  M6X28
                  from £1.07
                  from £1.07
                  # 013
                  MPN: 07L109291
                  BUNGS
                  from £8.00
                  from £8.00
                  # 014
                  MPN: N0145555
                  THREADED PIN
                  M8X44
                  from £2.34
                  from £2.34
                  # 015
                  MPN: N91139201
                  SCREW WITH INT. SERRATIONS
                  M8X20
                  from £1.31
                  from £1.31
                  # 016
                  MPN: N10630302
                  SEALING PLUG
                  M10X1
                  from £2.34
                  from £2.34
                  # 017
                  MPN: 06B103113C
                  END CAP
                  26
                  from £5.41
                  from £5.41
                  # 018
                  MPN: N0119078
                  END CAP
                  14
                  from £0.92
                  from £0.92
                  # 019
                  MPN: 079103175H
                  NON-RETURN VALVE
                  from £19.07
                  from £19.07
                  # 020
                  MPN: 036103113A
                  END CAP
                  36,6
                  from £5.41
                  from £5.41
                  # 021
                  MPN: 06D103377
                  WASHER
                  from £3.55
                  from £3.55
                  # 022
                  MPN: WHT001411
                  SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                  M10X138
                  from £2.95
                  from £2.95
                  # 023
                  MPN: N10720801
                  ROUND-HEAD SCREW
                  from £0.66
                  from £0.66
                  # 024
                  -
                  ARM
                  # 025
                  -
                  ARM
                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
