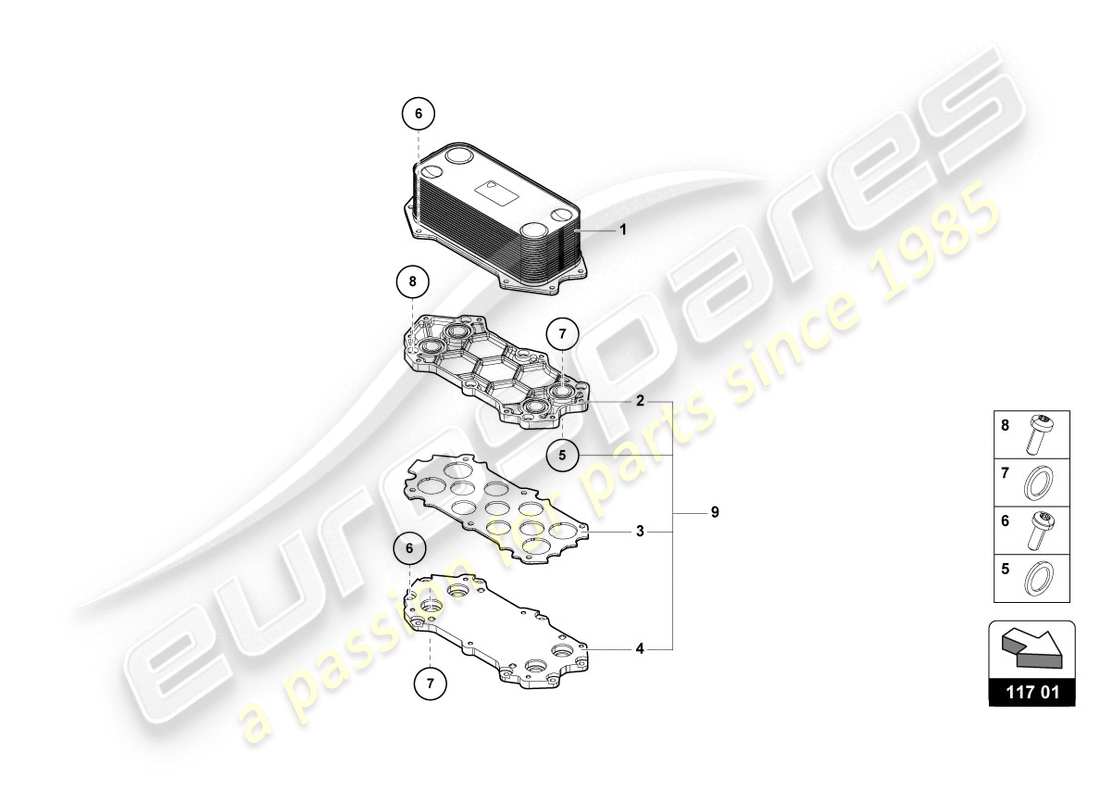

117.01.00 - GEAR OIL COOLER

Lamborghini LP610-4 COUPE (2016) GEAR OIL COOLER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 07L117021H
    OIL COOLER
    Supersession
    Supersession
    # 002
    -
    BASE PLATE
    FROM MY18
    # 003
    -
    SEAL
    FROM MY18
    # 004
    -
    BASIC PLATE
    FROM MY18
    # 005
    MPN: WHT006493A
    O-RING
    ALSO INCLUDED IN REF.9-20.4X2.4-N
    from £1.87
    from £1.87
    # 006
    MPN: N10196103
    OVAL SOCKET HEAD BOLT WITH HEX DRIVE
    M6X18
    from £0.78
    from £0.78
    # 007
    MPN: N90958101
    O-RING
    26X3
    from £16.30
    from £16.30
    # 008
    MPN: N10196107
    HEXALOBULAR FLANGE SCREW
    M6X18
    from £1.93
    from £1.93
    # 009
    -
    ADAPTER FOR OIL COOLER
    FROM MY18
