lamborghini lp610-4 coupe (2016) cooler for coolant parts diagram

121.02.00 - COOLER FOR COOLANT

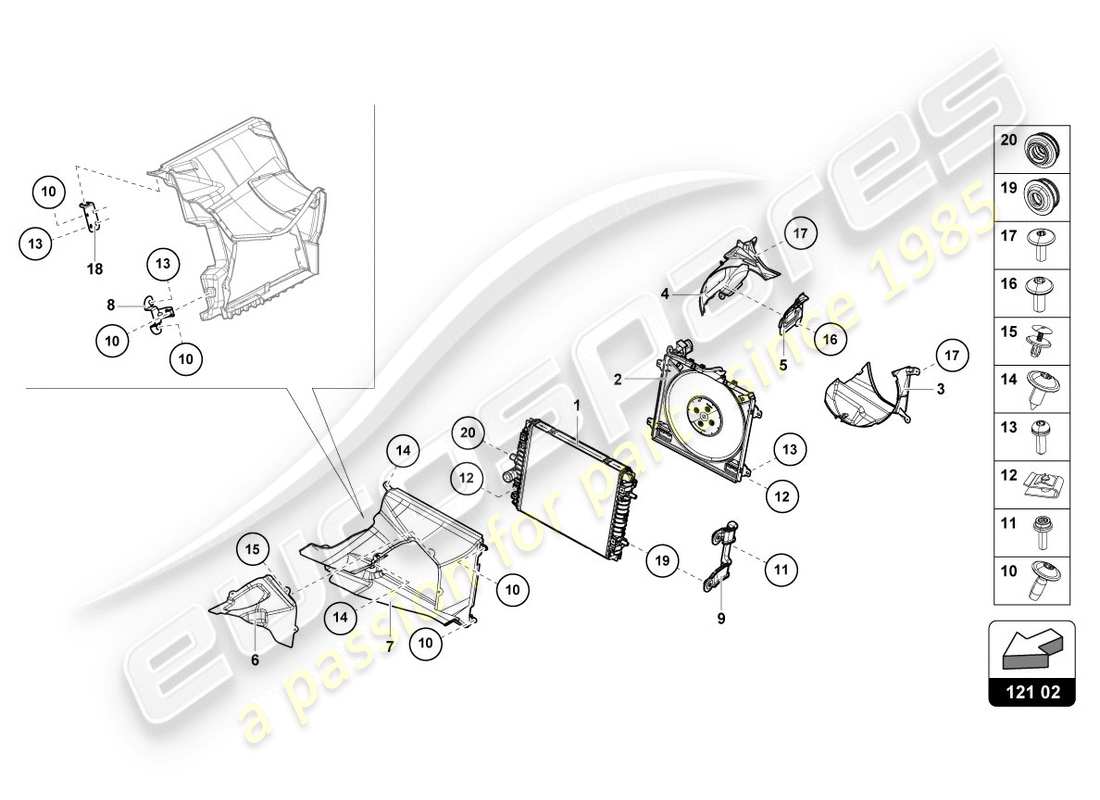

Lamborghini LP610-4 COUPE (2016) COOLER FOR COOLANT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 4S0121252B
              ADDITIONAL COOLER FOR COOLANT
              LEFT A. RIGHT
              from £242.10
              from £242.10
              # 002
              MPN: 4S0121203C
              RADIATOR FAN WITH FAN RING
              400W
              from £557.70
              from £557.70
              This part replaces part number 4S0121203B
              # 003
              MPN: 4T0807945
              AIR GUIDE
              LEFT
              from £17.74
              from £17.74
              # 003
              MPN: 4T0807946
              AIR GUIDE
              RIGHT
              from £17.74
              from £17.74
              # 004
              MPN: 4T0809963
              AIR GUIDE
              LEFT
              from £28.19
              from £28.19
              # 004
              MPN: 4T0809964
              AIR GUIDE
              RIGHT
              from £28.19
              from £28.19
              # 005
              MPN: 4T0807167
              AIR GUIDE
              LEFT
              from £8.13
              from £8.13
              # 005
              MPN: 4T0807168
              AIR GUIDE
              RIGHT
              from £8.13
              from £8.13
              # 006
              MPN: 4T0807161A
              AIR GUIDE
              LEFT
              from £8.09
              from £8.09
              # 006
              MPN: 4T0807162A
              AIR GUIDE
              RIGHT
              from £8.09
              from £8.09
              # 007
              MPN: 4T0807157A
              AIR GUIDE
              LEFT
              from £29.19
              from £29.19
              # 007
              MPN: 4T0807158A
              AIR GUIDE
              RIGHT
              from £29.19
              from £29.19
              # 008
              MPN: 4T0815533
              BRACKET
              from £27.20
              from £27.20
              # 009
              MPN: 4S0121259C
              BRACKET
              LEFT
              from £116.60
              from £116.60
              # 009
              MPN: 4S0121260C
              BRACKET
              RIGHT
              from £77.73
              from £77.73
              # 010
              MPN: N90918702
              HEXAGON SOCKET HEAD PANEL BOLT
              from £0.50
              from £0.50
              # 011
              MPN: N10664901
              SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
              M8X16
              from £1.69
              from £1.69
              # 012
              MPN: N90342503
              SPEED NUT
              M6X19,5X18
              from £0.98
              from £0.98
              # 013
              MPN: N91073301
              HEXAGON SOCKET FLAT HEAD BOLT
              M6X12
              from £0.49
              from £0.49
              # 014
              MPN: N91136801
              HEXAGON SOCKET HEAD PANEL BOLT
              4,2X11
              from £0.53
              from £0.53
              # 015
              MPN: 701867299E
              CLIP
              from £0.52
              from £0.52
              # 016
              MPN: N91057001
              OVAL HEAD PANEL SCREW
              5X16
              from £0.53
              from £0.53
              # 017
              MPN: N91042302
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.63
              from £0.63
              # 018
              MPN: 4T0805289
              BRACKET
              from £22.48
              from £22.48
              # 019
              MPN: 420121275A
              RUBBER BUSH
              from £3.85
              from £3.85
              # 020
              MPN: 4S0121275
              RUBBER BUSH
              from £6.45
              from £6.45
