131.03.00 - Secondary Air Pump

Lamborghini LP610-4 COUPE (2016) SECONDARY AIR PUMP Parts Diagram

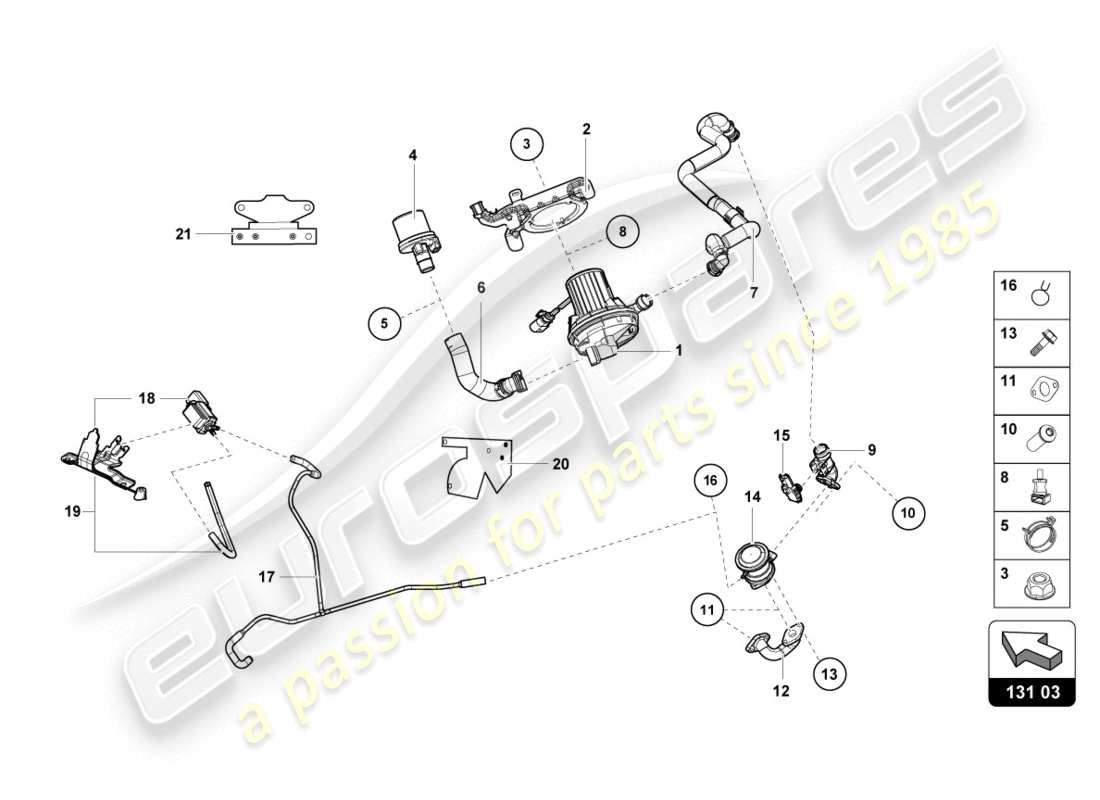

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 4S0906601
                        Secondary Air Pump
                        from £129.35
                        from £129.35
                        # 002
                        MPN: 4S0906407E
                        RETAINER FOR PUMP
                        LEFT
                        from £29.44
                        from £29.44
                        # 002
                        MPN: 4S0906408E
                        RETAINER FOR PUMP
                        RIGHT
                        from £29.44
                        from £29.44
                        # 003
                        MPN: N90488004
                        HEX. NUT WITH WASHER
                        M6
                        from £0.52
                        from £0.52
                        # 004
                        MPN: 420906321
                        AIR FILTER
                        from £15.15
                        from £15.15
                        # 005
                        MPN: 06A145917
                        SPRING BAND CLAMP
                        32X12
                        from £1.31
                        from £1.31
                        # 006
                        MPN: 4S0131461
                        CONNECTING PIPE
                        LEFT
                        from £11.15
                        from £11.15
                        # 006
                        MPN: 4S0131461A
                        CONNECTING PIPE
                        RIGHT
                        from £6.83
                        from £6.83
                        # 007
                        MPN: 4S0131605A
                        CONNECTING PIPE
                        RIGHT
                        from £52.07
                        from £52.07
                        # 007
                        MPN: 4S0131605B
                        CONNECTING PIPE
                        LEFT
                        from £52.07
                        from £52.07
                        # 008
                        MPN: 06A133567F
                        STOP BUFFER
                        from £5.10
                        from £5.10
                        # 009
                        MPN: 07L131119
                        ADAPTER
                        from £5.59
                        from £5.59
                        # 010
                        MPN: N10451408
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X16
                        from £0.93
                        from £0.93
                        # 011
                        MPN: 06A131120D
                        SEAL
                        from £4.67
                        from £4.67
                        # 012
                        MPN: 07L131166E
                        ADAPTER
                        LEFT
                        from £36.81
                        from £36.81
                        # 012
                        MPN: 07L131166G
                        ADAPTER
                        RIGHT
                        from £36.81
                        from £36.81
                        # 013
                        MPN: N10124306
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X20
                        from £0.89
                        from £0.89
                        # 014
                        MPN: 07L131101N
                        KOMBI VALVE
                        from £52.79
                        from £52.79
                        This part replaces part number 07L131101F which we have in stock - and 1 more. Click to view details
                        # 015
                        MPN: 06L906052
                        PRESSURE SENSOR
                        Supersession
                        Supersession
                        This part replaces part number 06E906052 which we have in stock
                        # 016
                        MPN: N10210501
                        CLAMP
                        9,5X5X0,5
                        from £1.04
                        from £1.04
                        # 017
                        MPN: 07L131055H
                        PRESSURE CONTROLLINE
                        from £26.24
                        from £26.24
                        # 018
                        -
                        SOLENOID VALVE
                        # 019
                        MPN: 07L131425D
                        BRACKET
                        from £114.14
                        from £114.14
                        # 020
                        MPN: 07L133106A
                        HEAT INSULATION
                        from £9.52
                        from £9.52
                        # 021
                        MPN: 079133105B
                        HEAT INSULATION
                        from £22.83
                        from £22.83
