201.06.00 - ACTIVATED CHARCOAL CONTAINER

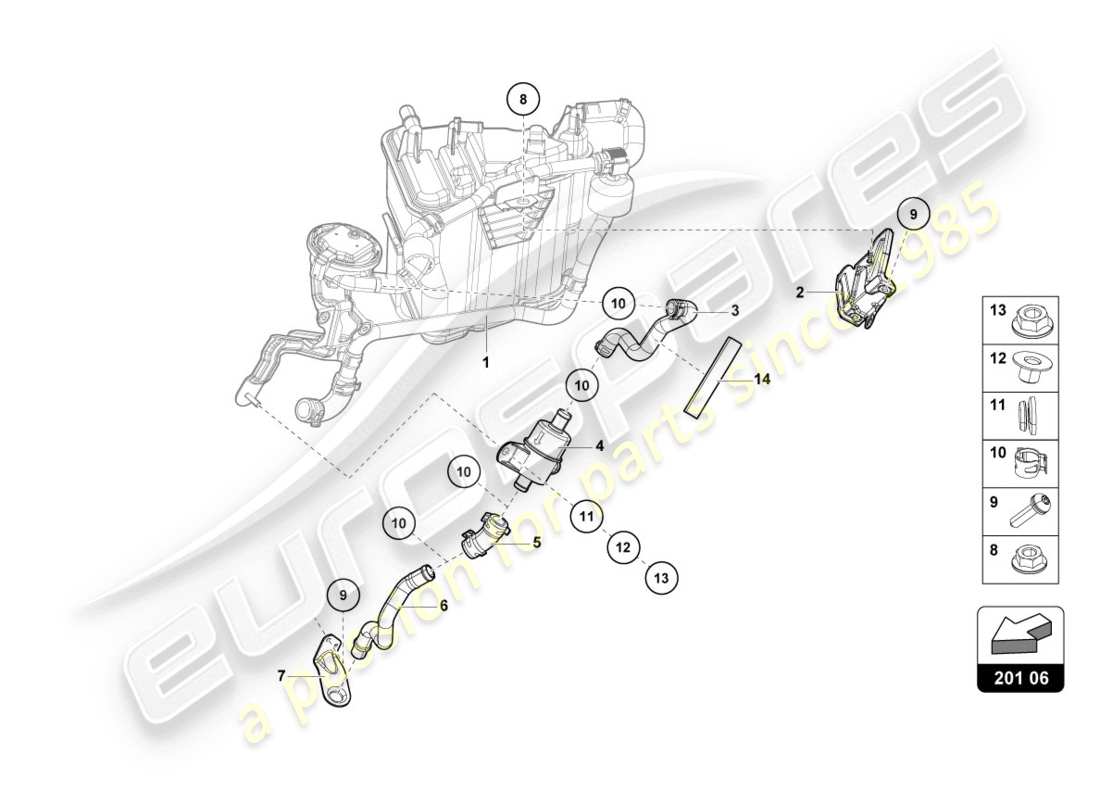

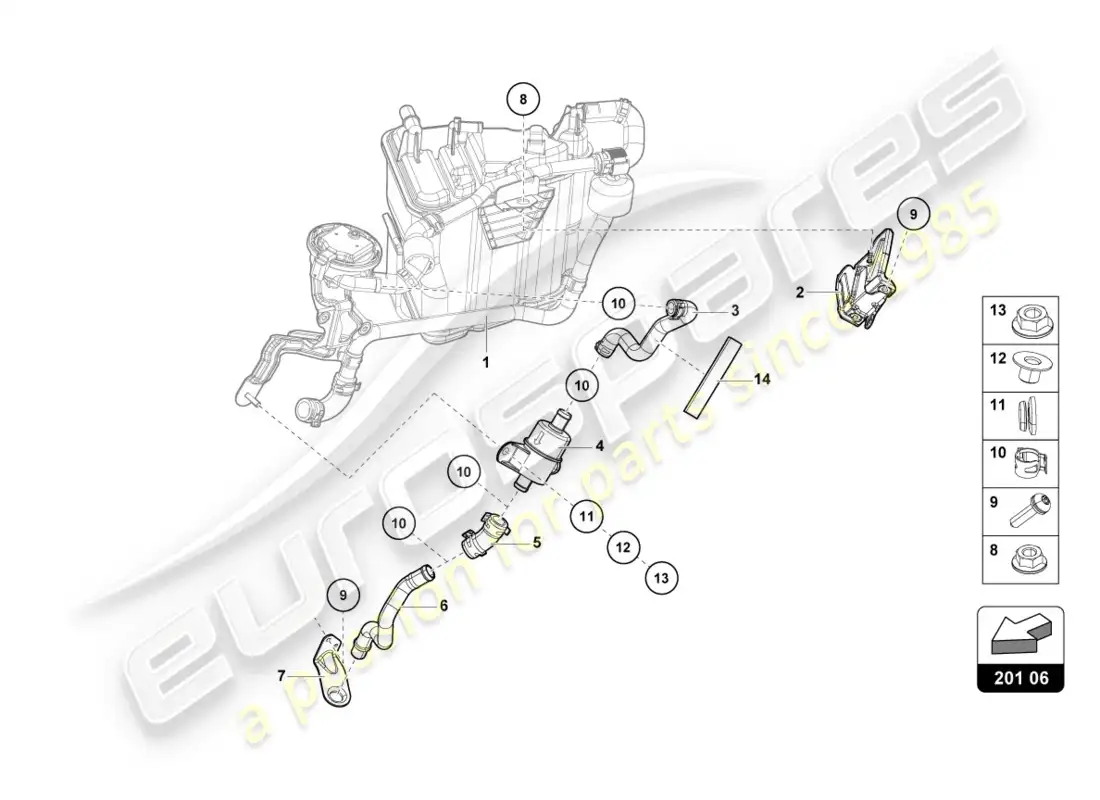

Lamborghini LP610-4 COUPE (2016) ACTIVATED CHARCOAL CONTAINER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
ACTIVATED CHARCOAL CONTAINER

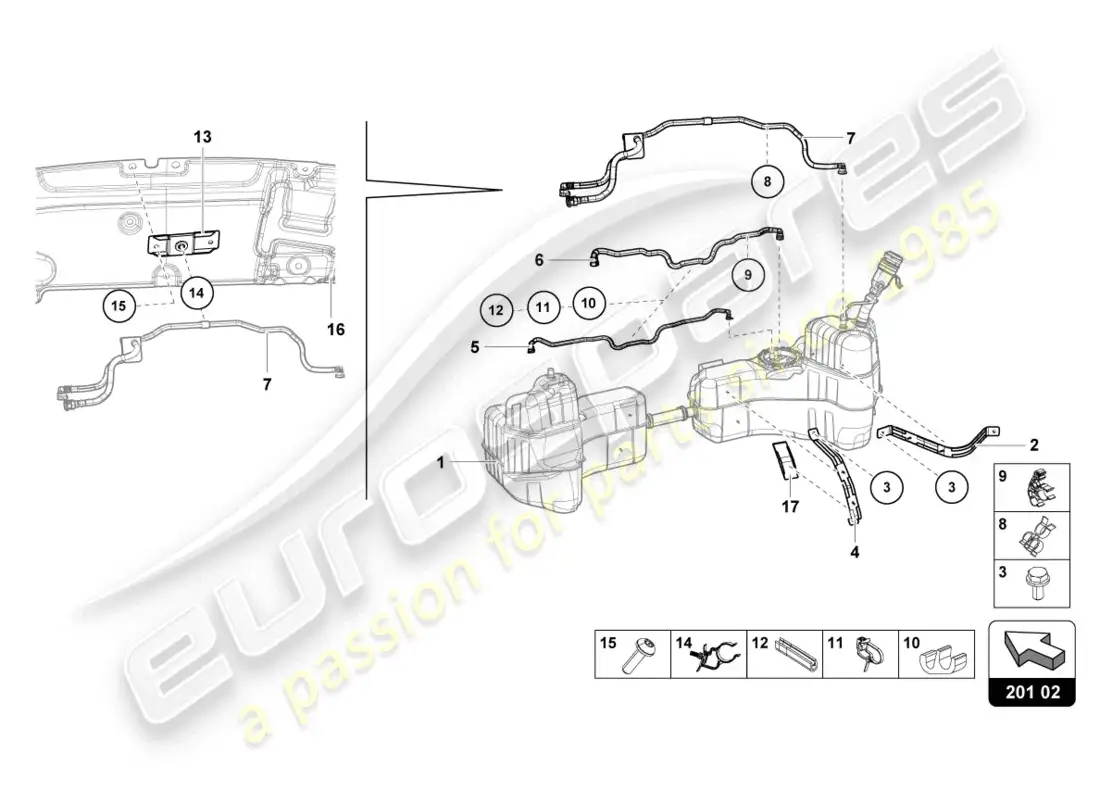

SEE ILLUSTRATION : 201.02
# 002
MPN: 4S0201187E
BRACKET
from £13.93
from £13.93
# 003
MPN: 4S0906272B
HOSE
from £4.99
from £4.99
# 004
MPN: 4S0201752
KOMBI VALVE
from £52.79
from £52.79
# 005
MPN: 4S0201389C
AIR LINE
from £1.98
from £1.98
# 006
MPN: 4S0201411A
AIR LINE
from £36.91
from £36.91
# 007
MPN: 4S0201171
BRACKET
from £3.83
from £3.83
# 008
MPN: N91205301
HEXAGON FLANGE NUT, SELF-LOCKING
M6
from £1.46
from £1.46
# 009
MPN: N0902619
HEXAGON HEAD BOLT (COMBI)
M6X20
from £1.13
from £1.13
# 010
MPN: 4B0422379A
SPRING BAND CLAMP
25X12
from £1.28
from £1.28
# 011
MPN: 431129669
GROMMET
from £4.33
from £4.33
# 012
MPN: 1K0129734B
BUSH
from £4.88
from £4.88
This part replaces part number 6N0129734
# 013
MPN: N01508210
HEXAGON COLLAR NUT
M6
from £0.47
from £0.47
# 014
MPN: 4T0127237
HEAT SHIELD
from £0.56
from £0.56
