lamborghini lp610-4 coupe (2016) oil filter parts diagram

301.01.00 - OIL FILTER

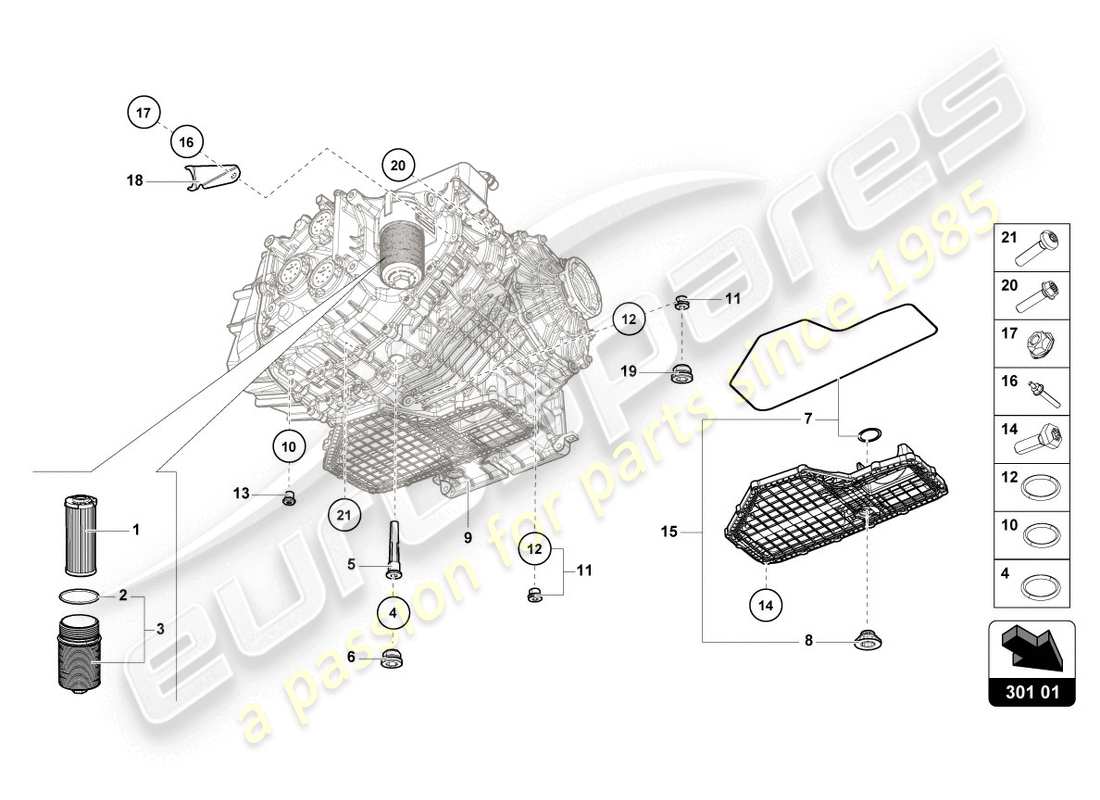

Lamborghini LP610-4 COUPE (2016) OIL FILTER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 0BH325183B
        FILTER ELEMENT
        BUY ALSO THE O-RING- N 910 845 01
        from £31.09
        from £31.09
        # 002
        MPN: N91084501
        O-RING
        63,09X3,53
        from £4.55
        from £4.55
        # 003
        MPN: 0BH325159
        FILTER HOUSING WITH HEAT SHIELD
        from £15.09
        from £15.09
        # 004
        MPN: N0438092
        SEAL RING
        24X29
        from £1.67
        from £1.67
        # 005
        MPN: 0BH321363
        OIL PIPE
        SERVICE INSPECTION
        from £2.95
        from £2.95
        # 006
        MPN: N90215404
        SEALING PLUG
        1 MAGNETIC PLUG M24X1, 5 WITH WASHER PER SERVICE INSPECTION-M24X1,5
        from £4.88
        from £4.88
        # 007
        MPN: 0BZ398359
        GASKET SET FOR OIL SUMP
        from £29.49
        from £29.49
        # 008
        MPN: WHT006863
        SEAL BOLT WITH SEALING RING
        1 MAGNETIC PLUG M27 WITH WASHER PER SERVICE INSPECTION-M18X1 0BZ.321.359.B
        from £3.77
        from £3.77
        # 009
        -
        AUTOMATIC GEARBOX
        SEE ILLUSTRATION : 300.01
        # 010
        MPN: N0138132
        SEAL RING
        12X17X1,5
        from £2.18
        from £2.18
        # 011
        MPN: WHT005257
        SEALING PLUG
        1 MAGNETIC PLUG M16X1. 0 WITH WASHER PER SERVICE INSPECTION- VALID FOR 2WD FROM GEARBOX SERIAL ID NUMBER 2 - FOR AWD VALID FROM GEARBOX SERIAL ID 1350-M16X1
        from £16.56
        from £16.56
        # 012
        -
        SEAL RING
        NOT SOLD SEPARATELY - ORDER REF 11
        # 013
        MPN: N10637901
        SEALING PLUG
        PLUG M18X1, 5 PER SERVICE INSPECTION-M12X1,5X12
        from £3.90
        from £3.90
        # 014
        MPN: N10745101
        HEXAGON SOCKET FLAT HEAD BOLT
        M12X50-M6X20
        from £1.13
        from £1.13
        # 015
        MPN: 0BZ321359B
        oil sump
        (EUROPE spec vehicles)
        Supersession
        Supersession
        # 016
        MPN: N91020902
        DOUBLE STUD WITH HEXAGON DRIVE
        M8X45-M6X12-M8X45/M6X12
        from £12.41
        from £12.41
        # 017
        MPN: N02300214
        HEXAGON NUT, SELF-LOCKING
        M6-M6
        from £1.25
        from £1.25
        # 018
        MPN: 0BZ301433
        ARM
        from £6.01
        from £6.01
        # 019
        MPN: 4T0398001
        SEALING PLUG
        UNTIL GEARBOX ID GRAZIANO 1 FOR 2WD , 1349 FOR AWD-M18
        from £7.18
        from £7.18
        # 020
        MPN: N91145501
        MULTI-POINT SOCKET HEAD BOLT WITH COLLAR
        M8X35
        from £1.77
        from £1.77
        # 021
        MPN: N10736001
        HEXAGON SOCKET FLAT HEAD BOLT
        M8X35
        from £0.95
        from £0.95
