lamborghini lp610-4 coupe (2016) mechatronic with software parts diagram

325.05.00 - MECHATRONIC WITH SOFTWARE

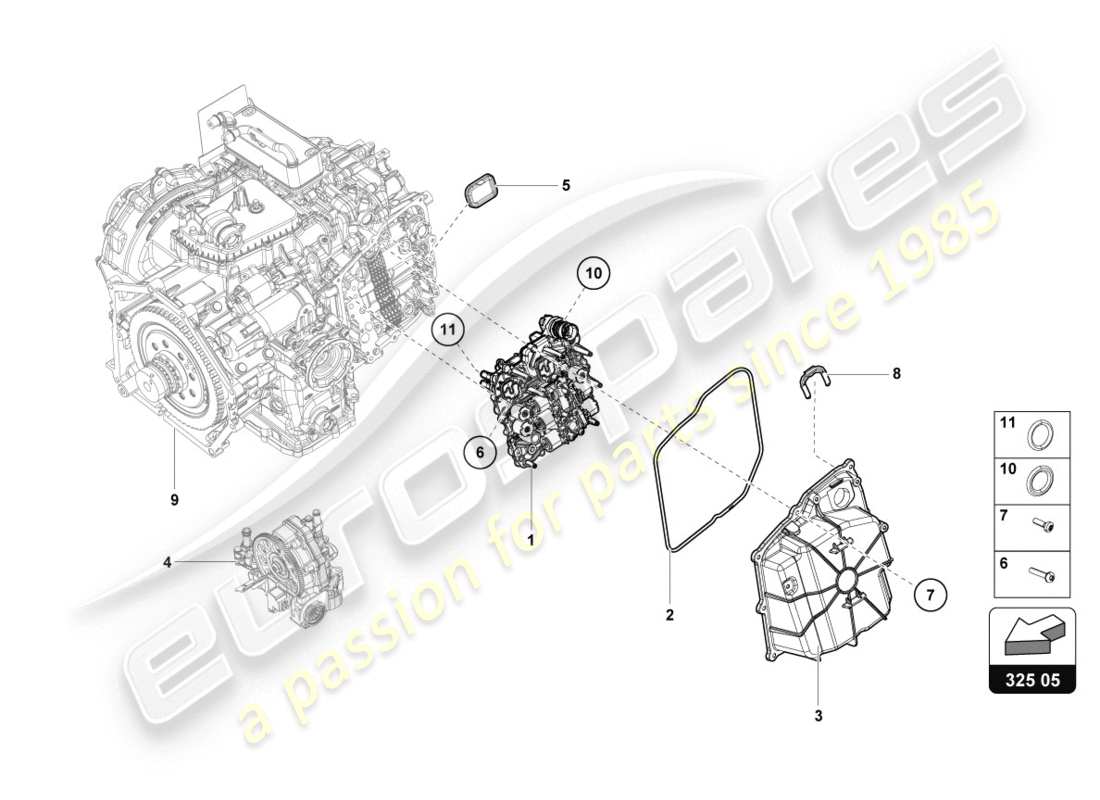

Lamborghini LP610-4 COUPE (2016) MECHATRONIC WITH SOFTWARE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4T0927155D
          MECHATRONIC WITH SOFTWARE
          0BH927711F (EUROPE, UK spec vehicles)
          from £2,118.38
          from £2,118.38
          # 001
          MPN: 4T0927155E
          MECHATRONIC WITH SOFTWARE
          0BH927711F (USA spec vehicles)
          from £2,118.38
          from £2,118.38
          # 002
          MPN: 0BZ321116
          SEAL
          from £17.82
          from £17.82
          # 003
          MPN: 0BZ325201A
          COVER
          from £320.79
          from £320.79
          # 004
          -
          HYDRAULICS CONTROL UNIT
          SEE ILLUSTRATION : 325.03
          # 005
          MPN: 0BZ301455
          SEAL
          from £7.48
          from £7.48
          # 006
          MPN: N10554002
          ROUND HD. SCREW
          M6X35
          from £1.16
          from £1.16
          # 007
          MPN: N10745101
          HEXAGON SOCKET FLAT HEAD BOLT
          M6X20
          from £1.13
          from £1.13
          # 008
          MPN: 0BH325147
          Retaining Clip
          from £1.98
          from £1.98
          # 009
          -
          AUTOMATIC GEARBOX
          SEE ILLUSTRATION : 300.01
          # 010
          -
          O-RING
          INCLUDED IN REF.: 1
          # 011
          -
          O-RING
          INCLUDED IN REF.: 1
