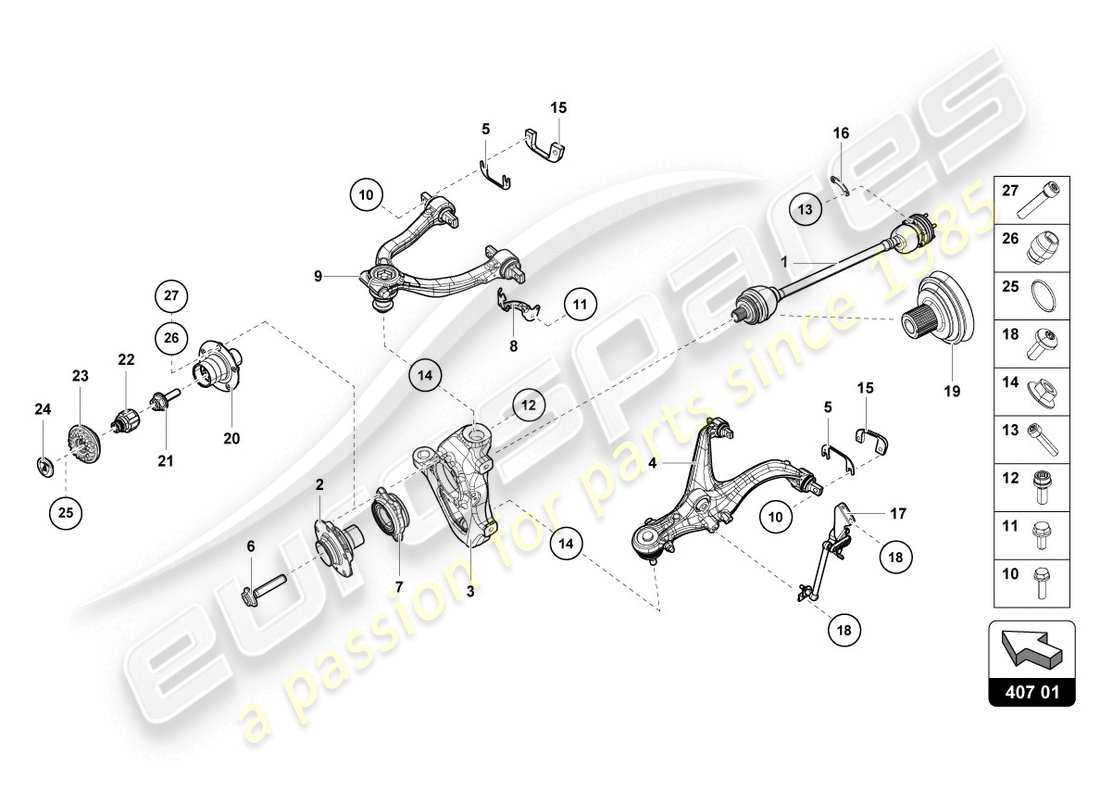

407.01.00 - AXLE SHAFT

Lamborghini LP610-4 COUPE (2016) AXLE SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 4T0407271B
        DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
        CONTACT YOUR AREA MANAGER-FRONT
        from £465.18
        from £465.18
        This part replaces part number 4T0407271
        # 002
        MPN: 4D0407613E
        WHEEL HUB
        from £109.86
        from £109.86
        # 003
        MPN: 4T0407245D
        WHEEL BEARING HOUSING
        CONTACT YOUR AREA MANAGER-LEFT
        from £472.50
        from £472.50
        # 003
        MPN: 4T0407246D
        WHEEL BEARING HOUSING
        CONTACT YOUR AREA MANAGER-RIGHT
        from £472.50
        from £472.50
        # 004
        MPN: 4T0407151E
        WISHBONE
        CONTACT YOUR AREA MANAGER-LEFT LOWER
        from £626.86
        from £626.86
        # 004
        MPN: 4T0407152B
        WISHBONE
        CONTACT YOUR AREA MANAGER-RIGHT LOWER
        Supersession
        Supersession
        # 005
        MPN: 4S0407203C
        BALANCING PLATE
        1MM
        from £4.88
        from £4.88
        # 005
        MPN: 4S0407203D
        BALANCING PLATE
        2MM
        from £4.88
        from £4.88
        # 005
        MPN: 4S0407203E
        BALANCING PLATE
        3MM
        from £4.88
        from £4.88
        # 005
        MPN: 4S0407203G
        BALANCING PLATE
        0,5MM
        from £4.88
        from £4.88
        # 005
        MPN: 4S0407203H
        BALANCING PLATE
        1,5MM
        from £6.23
        from £6.23
        # 006
        MPN: 4B0407643A
        SHOULDERED BOLT
        M16X1,5X72
        from £5.95
        from £5.95
        # 007
        MPN: 4E0407625E
        DOUBLE (ANGLED) BALL BEARING WITH FLANGE
        85MM
        from £143.97
        from £143.97
        # 008
        MPN: 4S0611841G
        BRACKET
        UNTIL VIN HLA07068-LEFT FRONT
        from £7.35
        from £7.35
        # 008
        MPN: 4S0611842G
        BRACKET
        UNTIL VIN HLA07068-RIGHT FRONT
        from £7.35
        from £7.35
        # 009
        MPN: 4T0407505A
        WISHBONE
        CONTACT YOUR AREA MANAGER-LEFT UPPER
        from £472.50
        from £472.50
        # 009
        MPN: 4T0407506A
        WISHBONE
        CONTACT YOUR AREA MANAGER-RIGHT UPPER
        from £503.23
        from £503.23
        # 010
        MPN: N10706902
        HEXAGON FLANGE SCREW
        M10X55
        from £2.32
        from £2.32
        # 011
        MPN: WHT007142
        HEXAGON BOLT
        M10X42
        from £5.10
        from £5.10
        # 012
        MPN: WHT000237
        BALL SCREW
        M12X1,5X45
        from £3.93
        from £3.93
        # 013
        MPN: N91108201
        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
        M8X48
        from £2.15
        from £2.15
        # 014
        MPN: WHT004898
        HEXAGON COLLAR NUT SELF-LOCKING
        M14X1,5
        from £3.77
        from £3.77
        # 015
        MPN: 4T0806569
        BALANCING PLATE
        15,0MM
        from £20.21
        from £20.21
        # 016
        MPN: 420407357
        SPACER
        15,0MM
        from £1.38
        from £1.38
        # 017
        MPN: 4T0941273A
        POSITION SENSOR
        LEFT
        from £84.23
        from £84.23
        # 017
        MPN: 4T0941274A
        POSITION SENSOR
        RIGHT
        from £88.62
        from £88.62
        # 018
        MPN: N10405604
        OVAL HEXAGON SOCKET HEAD BOLT
        M6X14
        from £0.82
        from £0.82
        # 019
        -
        STUB AXLE
        # 020
        -
        WHEEL HUB
        # 021
        -
        SHOULDERED BOLT
        # 022
        -
        SUSPENSION BLOCKS
        # 023
        -
        NUT
        # 024
        -
        HUP CAP
        # 025
        MPN: 470698009
        O-RING
        from £5.93
        from £5.93
        # 026
        MPN: 470615315
        FOLLOWER
        from £13.05
        from £13.05
        # 027
        MPN: WHT008292
        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
        M6X16
        from £1.21
        from £1.21
