521.01.00 - DRIVE SHAFT

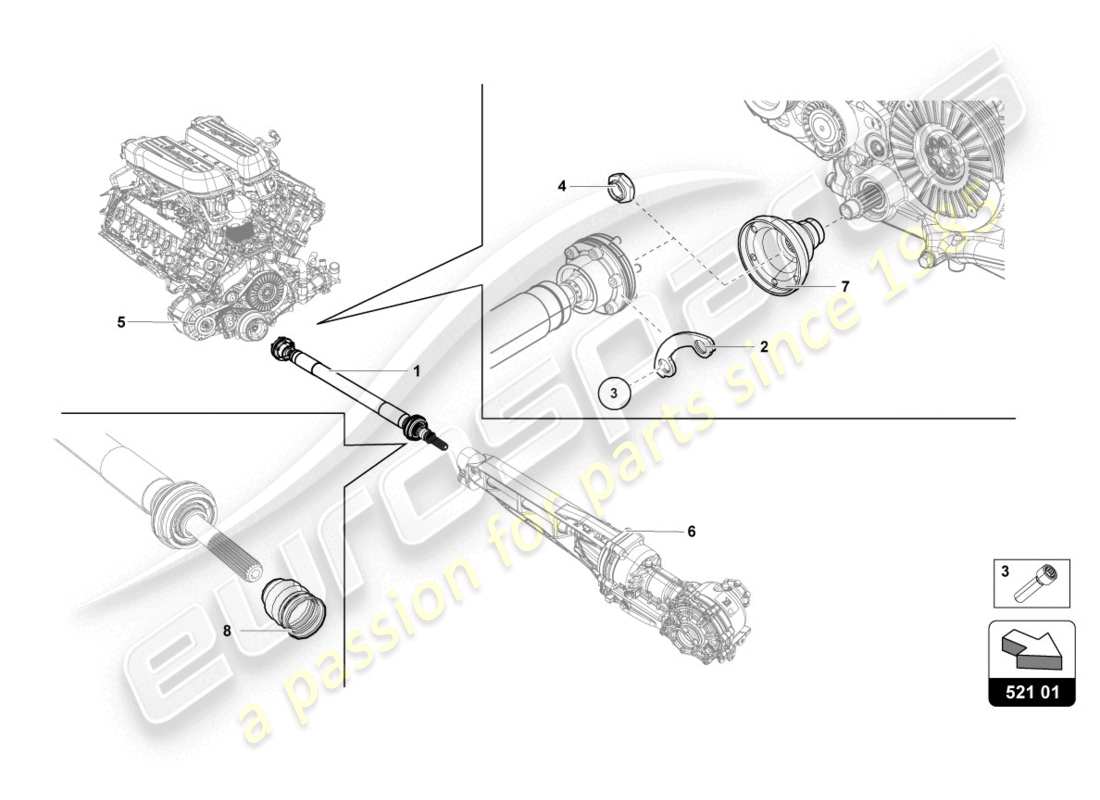

Lamborghini LP610-4 COUPE (2016) DRIVE SHAFT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0521101
CARDAN SHAFT
from £775.16
from £775.16
# 002
MPN: 420407357
SPACER
15,0MM
from £1.38
from £1.38
# 003
MPN: N10698301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X38X28
from £1.43
from £1.43
# 004
MPN: 086311495
HEXAGON NUT
M10X1,5
from £19.77
from £19.77
# 005
-
engine
SEE ILLUSTRATION : 100.01
# 006
-
front axle differential
SEE ILLUSTRATION : 409.01
# 007
MPN: 086311807C
FLANGE
from £98.58
from £98.58
# 008
MPN: 4T0598777
DUST COVER
from £78.95
from £78.95
