lamborghini lp610-4 coupe (2016) abs unit with control unit parts diagram

614.01.00 - ABS UNIT WITH CONTROL UNIT

Lamborghini LP610-4 COUPE (2016) ABS UNIT WITH CONTROL UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001

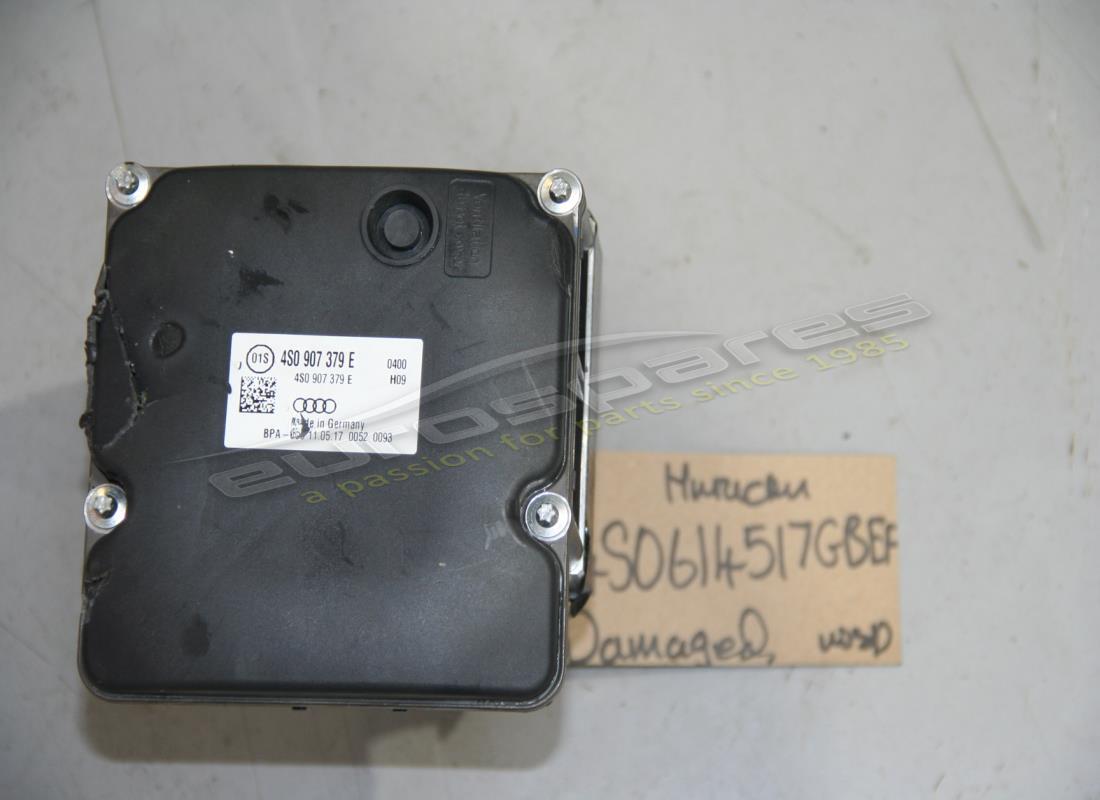

          MPN: 4S0614517GBEF

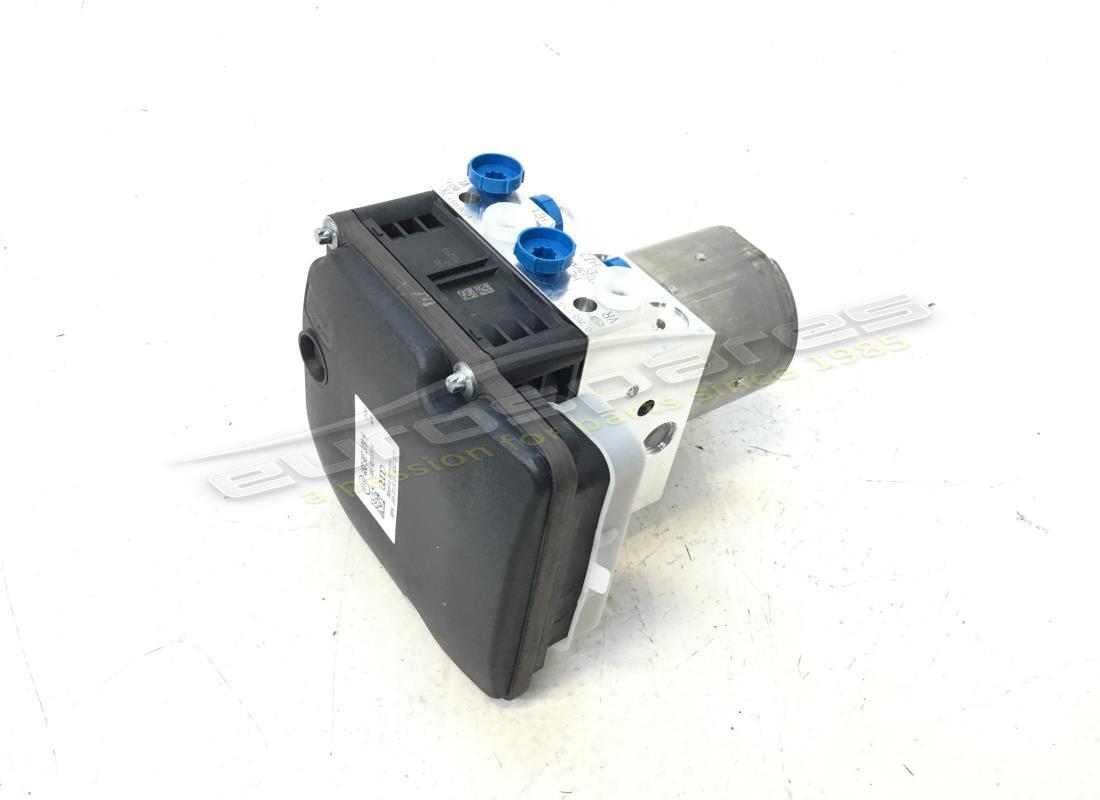

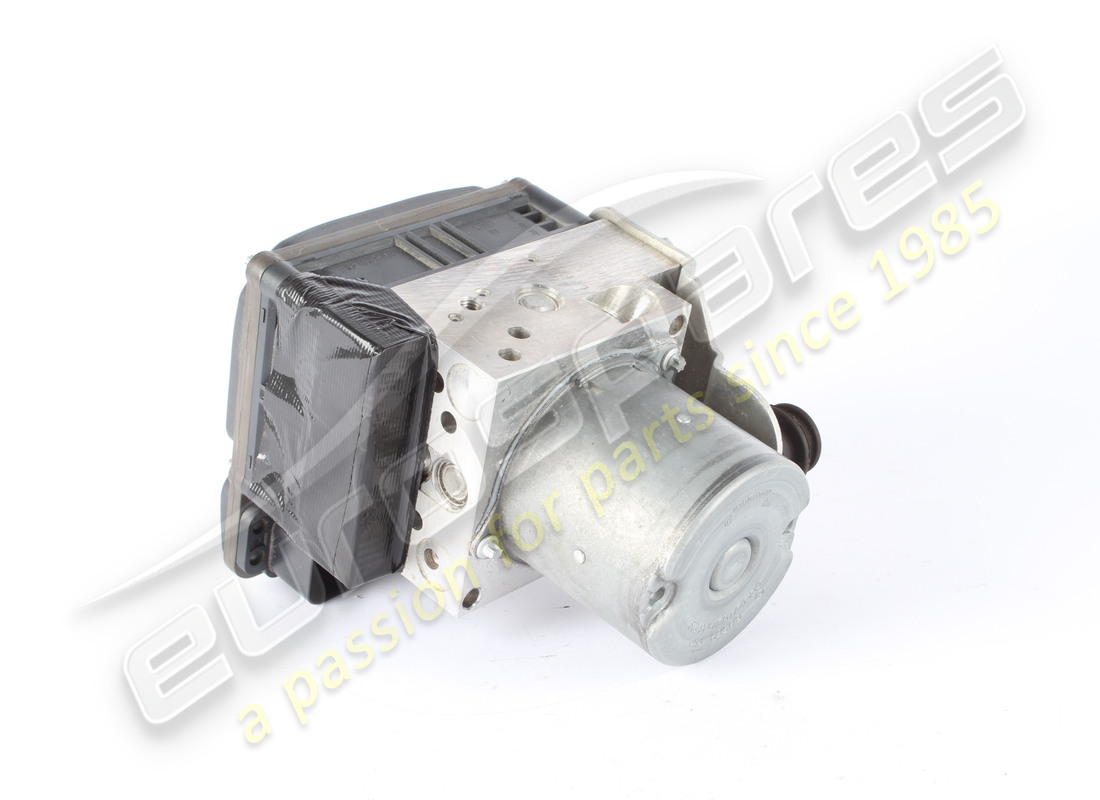

          ABS UNIT WITH CONTROL UNIT
          FILLED AND VENTED SOFTWARE: VERSION:
          from £5,140.73
          from £5,140.73
          # 002
          MPN: 4S0614235B
          BRACKET
          from £32.09
          from £32.09
          # 003
          MPN: 4S0614119C
          BRACKET
          from £17.65
          from £17.65
          # 004
          MPN: N10049308
          HEXAGON HEAD BOLT (COMBI)
          M8X20
          from £1.13
          from £1.13
          # 005
          MPN: N10664801
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M8X20
          from £1.09
          from £1.09
          # 006
          MPN: 8K0614177
          DECOUPLING ELEMENT
          from £1.93
          from £1.93
          # 007
          MPN: N90488004
          HEX. NUT WITH WASHER
          M6
          from £0.54
          from £0.54
          # 008
          MPN: 701947149A
          BEADING
          from £2.38
          from £2.38
