lamborghini lp610-4 coupe (2016) chassis parts diagram

805.02.00 - CHASSIS

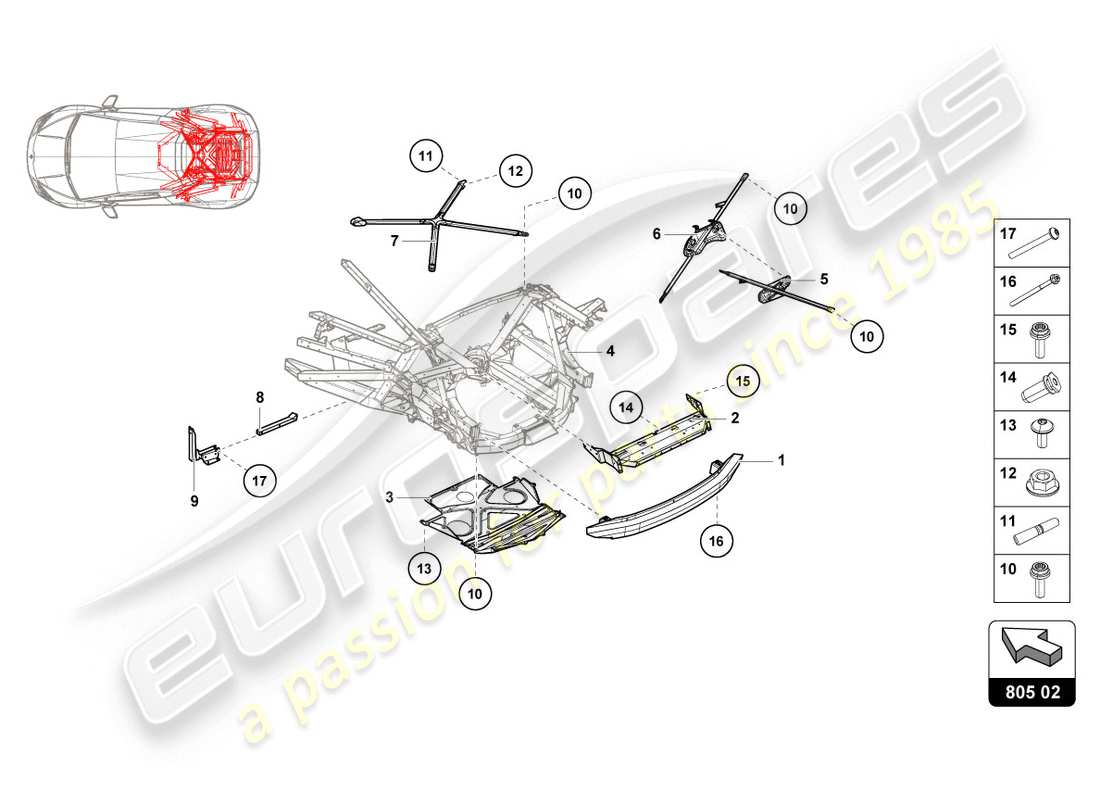

Lamborghini LP610-4 COUPE (2016) CHASSIS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 4T0807313B
      CROSS MEMBER
      CONTACT YOUR AREA MANAGER-REAR
      from £719.82
      from £719.82
      # 002
      MPN: 4T8813335B
      REAR CARRIER
      CONTACT YOUR AREA MANAGER
      from £1,464.75
      from £1,464.75
      # 003
      MPN: 4S0825203D
      UNDERBODY TRIM
      CONTACT YOUR AREA MANAGER
      from £126.02
      from £126.02
      # 004
      -
      Frame
      CONTACT YOUR AREA MANAGER - SEE ILLUSTRATION : 805.01-REAR ENGINE BAY
      # 005
      MPN: 4S0813905C
      BRACE
      CONTACT YOUR AREA MANAGER
      from £42.75
      from £42.75
      # 006
      MPN: 4S0813906C
      BRACE
      CONTACT YOUR AREA MANAGER
      from £77.73
      from £77.73
      # 007
      MPN: 4T8814587E
      SUPPORT ELEMENT
      from £295.71
      from £295.71
      # 008
      MPN: 4T0801781B
      SUPPORT
      CONTACT YOUR AREA MANAGER-LEFT
      from £49.54
      from £49.54
      # 008
      MPN: 4T0801782B
      SUPPORT
      CONTACT YOUR AREA MANAGER-RIGHT
      from £49.54
      from £49.54
      # 009
      MPN: 4T0814541B
      BRACKET
      CONTACT YOUR AREA MANAGER-LEFT
      from £162.99
      from £162.99
      # 009
      MPN: 4T0814542B
      BRACKET
      CONTACT YOUR AREA MANAGER-RIGHT
      from £90.79
      from £90.79
      # 010
      MPN: N91128001
      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
      M8X25
      from £0.82
      from £0.82
      # 011
      MPN: N91145002
      THREADED PIN
      M8X42
      from £2.21
      from £2.21
      # 012
      MPN: N90798808
      HEXAGON COLLAR NUT
      M8
      from £1.41
      from £1.41
      # 013
      MPN: N91042302
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.63
      from £0.63
      # 014
      MPN: 8H0806221
      COMPENSATING PIECE
      from £5.15
      from £5.15
      # 015
      MPN: N91176701
      INNER MULTIPOINT FITTING SCREW
      M8X8.5X22
      from £1.60
      from £1.60
      # 016
      MPN: N10714501
      SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
      M8X90X80
      from £1.28
      from £1.28
      # 017
      MPN: N91097301
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X45
      from £1.15
      from £1.15
      # 018
      -
      RETAINING BRACKET
      SEE ILLUSTRATION : 505.01 REF 6
      # 019
      MPN: N10405604
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X14
      from £0.72
      from £0.72
