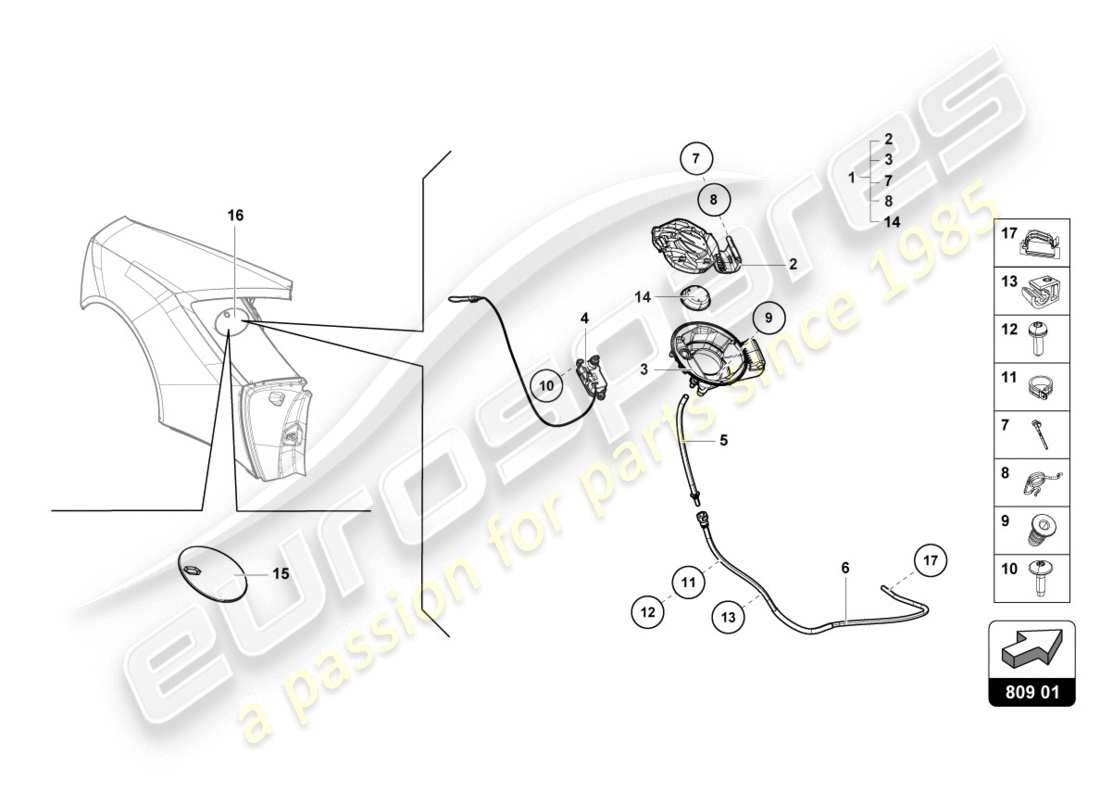

809.01.00 - FUEL FILLER FLAP

Lamborghini LP610-4 COUPE (2016) FUEL FILLER FLAP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 002
                  -
                  FUEL FILLER FLAP
                  # 002
                  MPN: 4T0809905C
                  FUEL FILLER FLAP
                  CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
                  from £28.15
                  from £28.15
                  # 003
                  -
                  FUEL FILLER FLAP
                  # 003
                  MPN: 4T0809999C
                  FUEL FILLER FLAP
                  CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
                  from £35.11
                  from £35.11
                  # 004
                  MPN: 4L0862153D
                  THROTTLE CONTROL ELEMENT
                  CAN'T BE INSTALLED ON VEHICLES EQUIPPED WITH PN 4T0809906C
                  from £11.75
                  from £11.75
                  # 004
                  MPN: 8V0862153A
                  THROTTLE CONTROL ELEMENT
                  CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
                  from £11.75
                  from £11.75
                  # 005
                  MPN: 4T0809937
                  VENT HOSE
                  from £5.10
                  from £5.10
                  # 006
                  MPN: 4T0809978
                  VENT HOSE
                  from £18.98
                  from £18.98
                  # 007
                  MPN: 4T0809910
                  SOCKET PIN
                  from £7.23
                  from £7.23
                  # 008
                  MPN: 4T0809931
                  SPRING
                  from £4.85
                  from £4.85
                  # 009
                  MPN: 470103226
                  HOSE CONNECTOR
                  from £3.25
                  from £3.25
                  # 010
                  MPN: N90732103
                  HEXAGON SOCKET OVAL HEAD BOLT
                  4X16
                  from £0.53
                  from £0.53
                  # 011
                  MPN: N0206015
                  CLAMP
                  12X15
                  from £1.39
                  from £1.39
                  # 012
                  -
                  BALL SCREW
                  # 012
                  MPN: N10347103
                  HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                  M6X20
                  from £0.81
                  from £0.81
                  # 013
                  MPN: 1H9609738A
                  CLIP
                  from £3.55
                  from £3.55
                  # 014
                  -
                  SEAL
                  # 014
                  MPN: 4T0809974A
                  SEAL
                  CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
                  from £18.37
                  from £18.37
                  # 015
                  MPN: 4T0809907A
                  FUEL FILLER FLAP
                  CAN'T BE INSTALLED ON VEHICLES EQUIPPED WITH PN 4T0809906C-OUTER
                  from £62.06
                  from £62.06
                  # 015
                  MPN: 4T0809907B
                  FUEL FILLER FLAP
                  CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C-OUTER
                  from £112.83
                  from £112.83
                  # 016
                  -
                  WING
                  # 017
                  MPN: 420853139
                  CLIP
                  from £1.27
                  from £1.27
