lamborghini lp610-4 coupe (2016) engine cover with insp. cover parts diagram

827.02.00 - ENGINE COVER WITH INSP. COVER

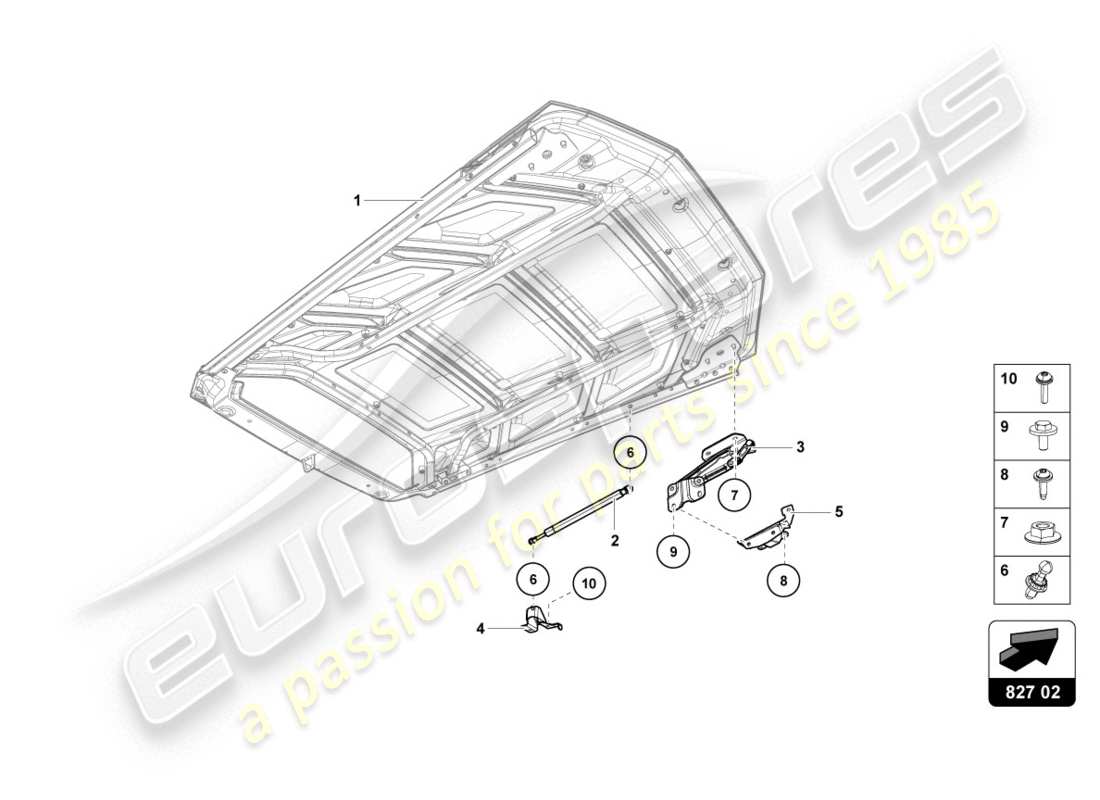

Lamborghini LP610-4 COUPE (2016) ENGINE COVER WITH INSP. COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      -
      REAR LID
      SEE ILLUSTRATION : 827.01
      # 002
      MPN: 4T0827552A
      GAS FILLED STRUT
      from £46.79
      from £46.79
      Genuine Lamborghini (no longer available to order)
      GAS SPRING STABILUS MOTORE Genuine Lamborghini - Used In stock
      # 003
      MPN: 4T0827301B
      HINGE
      LEFT
      from £78.47
      from £78.47
      HINGE Genuine Lamborghini - New (to order)
      HINGE Genuine Lamborghini - Used In stock
      # 003
      MPN: 4T0827302B
      HINGE
      RIGHT
      from £78.47
      from £78.47
      HINGE Genuine Lamborghini - New (to order)
      HINGE Genuine Lamborghini - Used In stock
      # 004
      MPN: 4T0809505B
      ARM
      LEFT
      from £29.87
      from £29.87
      MOUNTING BRACKET Genuine Lamborghini - New (to order)
      MOUNTING BRACKET Genuine Lamborghini - Used In stock
      # 004
      MPN: 4T0809506B
      ARM
      RIGHT
      from £29.87
      from £29.87
      MOUNTING BRACKET Genuine Lamborghini - New (to order)
      MOUNTING BRACKET Genuine Lamborghini - Used In stock
      # 006
      MPN: 6X0827439C
      BALL STUD
      M8
      from £4.45
      from £4.45
      BALL PIN Genuine Lamborghini - New (to order)
      # 007
      MPN: N90643905
      HEXAGON HEAD BOLT (COMBI)
      M8X25
      from £1.23
      from £1.23
      HEXAGON HEAD BOLT M8X25-S1 Genuine Lamborghini - New In stock
      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
      # 008
      MPN: N90969901
      HEX SOCKET HEAD LOCATING BOLT
      M6X25
      from £0.78
      from £0.78
      HEXALOBULAR SOCKETM6X25 Genuine Lamborghini - New (to order)
      HEX SOCKET HEAD LOCATING BOLT Genuine Porsche Part - New (to order)
      # 009
      MPN: N90643905
      HEXAGON HEAD BOLT (COMBI)
      M8X25
      from £1.23
      from £1.23
      HEXAGON HEAD BOLT M8X25-S1 Genuine Lamborghini - New In stock
      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
      # 010
      MPN: N91048802
      SCREW WITH INT. SERRATIONS
      M8X20
      from £1.69
      from £1.69
      12-POINT SOCKET M8X20 Genuine Lamborghini - New In stock
      SCREW WITH INT. SERRATIONS Genuine Porsche Part - New (to order)
      # 011
      MPN: N90831902
      CAP CLOSURE
      from £2.04
      from £2.04
      CAP CLOSURE Genuine Lamborghini - New (to order)
      # 012
      MPN: 8D0805960
      SPEED NUT
      6,0MM
      from £2.28
      from £2.28
      SPEED NUT 6MM (x 25.1 x 25) Genuine Lamborghini - New In stock
