857.03.00 - DASHBOARD

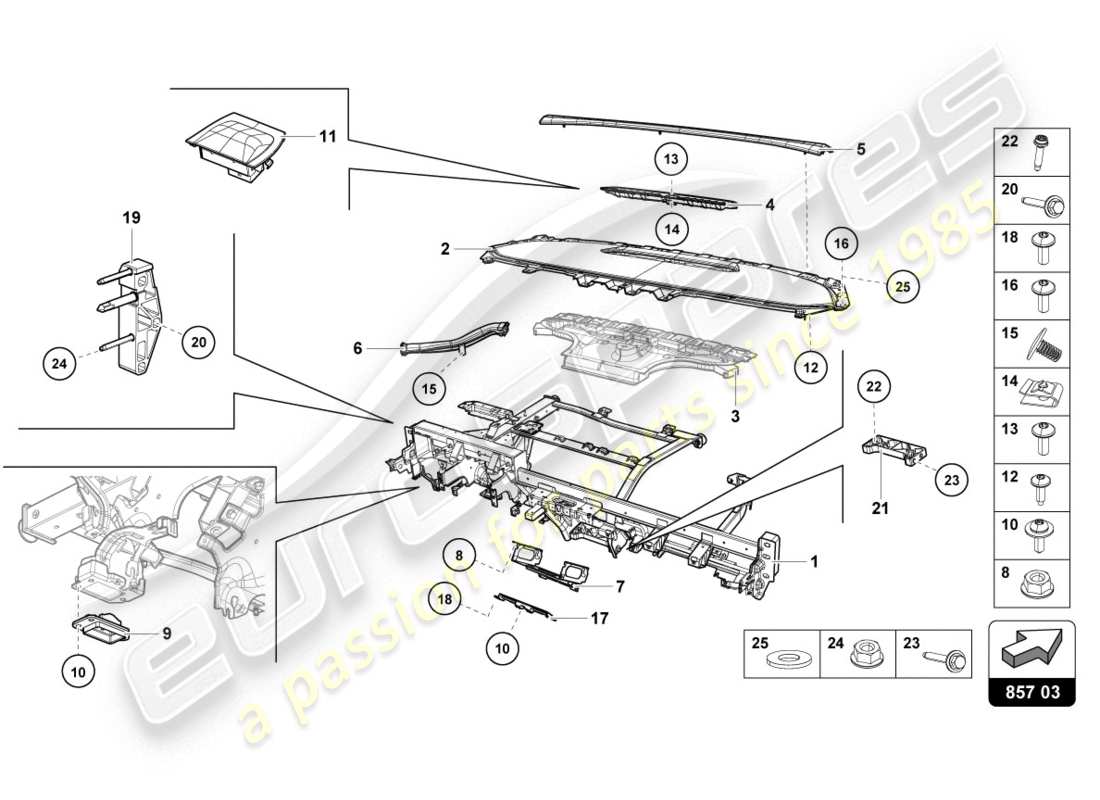

Lamborghini LP610-4 COUPE (2016) DASHBOARD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T1858003F
CROSS MEMBER FOR DASH PANEL
LHD (EUROPE, USA spec vehicles)
from £1,361.82
from £1,361.82
# 001
MPN: 4T2858003D
CROSS MEMBER FOR DASH PANEL
RHD (UK spec vehicles)
from £630.11
from £630.11
# 002
MPN: 4T1857003B
DASHBOARD
LEATHER - SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
from £1,608.25
from £1,608.25
# 002
MPN: 4T1857003C
DASHBOARD
ALCANTARA - SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
from £910.69
from £910.69
# 002
MPN: 4T2857003B
DASHBOARD
LEATHER - SUPPLY VIN- RHD (UK spec vehicles)
from £1,608.25
from £1,608.25
# 002
MPN: 4T2857003C
DASHBOARD
ALCANTARA - SUPPLY VIN- RHD (UK spec vehicles)
from £677.25
from £677.25
# 003
-
DASHBOARD - LOWER PART, CENTER
# 004
MPN: 4T0819632B
AIR VENT
from £48.50
from £48.50
# 005
MPN: 4T0858345AGU2
COVER
ARTIFICIAL LEATHER-BROWN
from £427.14
from £427.14
# 005
MPN: 4T0858345AQG8
COVER
ARTIFICIAL LEATHER-BLACK
from £246.82
from £246.82
# 006
MPN: 4T1819869
AIR GUIDE CHANNEL
LHD-LEFT (EUROPE, USA spec vehicles)
from £23.52
from £23.52
# 006
MPN: 4T1819870
AIR GUIDE CHANNEL
LHD-RIGHT (EUROPE, USA spec vehicles)
from £23.52
from £23.52
# 006
MPN: 4T2819869
AIR GUIDE CHANNEL
RHD-LEFT (UK spec vehicles)
from £23.52
from £23.52
# 006
MPN: 4T2819870
AIR GUIDE CHANNEL
RHD-RIGHT (UK spec vehicles)
from £23.52
from £23.52
# 007
MPN: 4T1035329
RETAINER FOR RADIO UNIT
LHD (EUROPE, USA spec vehicles)
from £358.83
from £358.83
# 007
MPN: 4T2035329
RETAINER FOR RADIO UNIT
RHD (UK spec vehicles)
from £358.83
from £358.83
# 008
MPN: N10017307
HEXAGON COLLAR NUT
M5
from £1.16
from £1.16
# 009
MPN: 470858357
TRIM
'OBD'
from £26.85
from £26.85
# 010
MPN: N10738101
HEX SOCKET HEAD BOLT (COMBI)
M5X16
from £0.55
from £0.55
# 011
MPN: 4H0907539
SUN SENSOR
from £6.99
from £6.99
# 012
MPN: N90897402
HEXAGON SOCKET HEAD PANEL BOLT
5X16
from £0.52
from £0.52
# 013
MPN: N10738101
HEX SOCKET HEAD BOLT (COMBI)
M5X16
from £0.52
from £0.52
# 014
MPN: N01166623
WASHER
6,4X18X1,6
from £0.96
from £0.96
This part replaces part number WHT000909
# 015
MPN: 400863119
BUNGS
8X14,5
from £0.53
from £0.53
This part replaces part number 008930807
# 016
MPN: N90944603
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
from £0.71
from £0.71
# 017
MPN: 4T0857167
ARM
from £9.18
from £9.18
# 018
MPN: N90944604
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
from £0.72
from £0.72
# 019
MPN: 4S1857021A
SECURING BRACKET
LEFT LHD (EUROPE, USA spec vehicles)
from £17.36
from £17.36
# 019
MPN: 4S1857022A
SECURING BRACKET
RIGHT LHD (EUROPE, USA spec vehicles)
from £17.36
from £17.36
# 019
MPN: 4S2857021A
SECURING BRACKET
LEFT RHD (UK spec vehicles)
from £17.36
from £17.36
# 019
MPN: 4S2857022A
SECURING BRACKET
RIGHT RHD (UK spec vehicles)
from £17.36
from £17.36
# 020
MPN: N10770301
FITTED BOLT, HEXAGON HEAD
M8X75
from £1.28
from £1.28
# 021
MPN: 4S0857245
SUPPORT
from £16.03
from £16.03
# 022
MPN: N90870602
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X35
from £2.06
from £2.06
# 023
MPN: N90966002
HEXAGON HEAD BOLT (COMBI)
M8X25
from £1.79
from £1.79
# 024
MPN: N90761103
HEXAGON COLLAR NUT SELF-LOCKING
M8
from £1.47
from £1.47
# 025
MPN: N91109201
WASHER
5,3X20X1
from £0.98
from £0.98
This part replaces part number 008400508
