lamborghini lp610-4 coupe (2016) ignition system parts diagram

905.01.00 - IGNITION SYSTEM

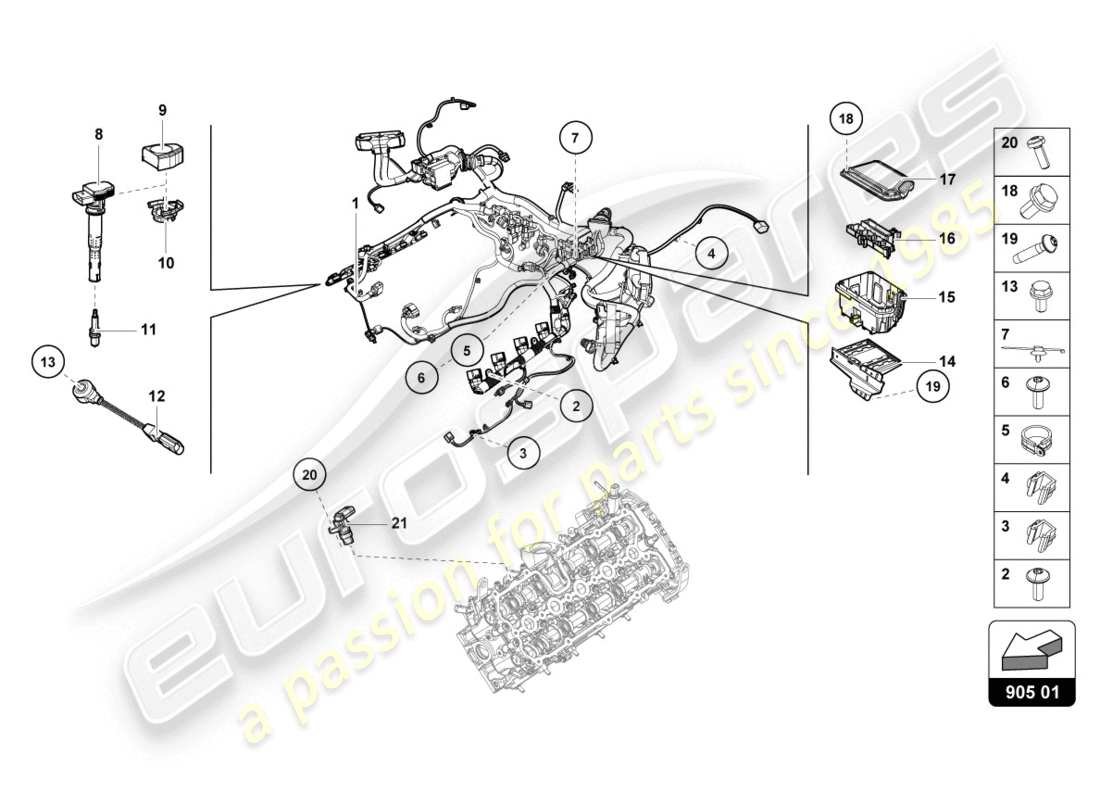

Lamborghini LP610-4 COUPE (2016) IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4S8971713A
          HARNESS FOR ENGINE COMPARTMENT
          from £2,200.52
          from £2,200.52
          # 002
          MPN: N10464802
          OVAL HEXAGON SOCKET HEAD BOLT
          4X12
          from £0.53
          from £0.53
          # 003
          MPN: WHT001999
          CABLE TIE WITH TERMINAL SOCKET
          4,6X200 3,0-6,0MM OUTER
          from £1.43
          from £1.43
          # 004
          MPN: 5M0971838
          CABLE TIE WITH TERMINAL SOCKET
          4,6X200MM
          from £1.70
          from £1.70
          # 005
          MPN: N91123701
          CLAMP
          1-40X15
          from £2.90
          from £2.90
          # 006
          MPN: N90833202
          HEXAGON BOLT
          M6X22
          from £0.54
          from £0.54
          # 007
          MPN: N10646101
          CABLE TIES
          from £0.74
          from £0.74
          # 008
          MPN: 079905115
          IGNITION COIL
          Supersession
          Supersession
          # 009
          MPN: 07L905142
          PROTECTIVE CAP
          UPPER
          from £2.90
          from £2.90
          # 010
          MPN: 07L905116B
          PROTECTIVE CAP
          LOWER
          from £9.34
          from £9.34
          # 011
          MPN: 06H905601C
          SPARK PLUG LONGLIFE
          from £21.15
          from £21.15
          This part replaces part number 06H905601A which we have in stock - and 2 more. Click to view details
          # 012
          MPN: 06E905377A
          KNOCK SENSOR WITH WIRING HARNESS
          GREEN - CYLINDER 4,5
          from £93.82
          from £93.82
          # 012
          MPN: 06E905377C
          KNOCK SENSOR WITH WIRING HARNESS
          GREY - CYLINDER 9, 10_
          from £86.39
          from £86.39
          # 012
          MPN: 07L905377C
          KNOCK SENSOR WITH WIRING HARNESS
          ORANGE - CYLINDER 1- 3 _
          from £76.44
          from £76.44
          # 012
          MPN: 07L905377D
          KNOCK SENSOR WITH WIRING HARNESS
          BROWN - CYLINDER 6-8
          Supersession
          Supersession
          # 013
          MPN: N01024425
          HEXAGON BOLT
          M8X30-M8X30
          from £1.85
          from £1.85
          # 014
          MPN: 4S0937539B
          BRACKET
          LEFT
          from £18.45
          from £18.45
          # 014
          MPN: 4S0937540B
          BRACKET
          RIGHT
          from £18.45
          from £18.45
          # 015
          MPN: 4S0937113A
          HOUSING FOR CONTROL UNITS
          LEFT
          from £19.98
          from £19.98
          # 015
          MPN: 4S0937114A
          HOUSING FOR CONTROL UNITS
          RIGHT
          from £19.98
          from £19.98
          # 016
          MPN: 4S0937503
          RELAY PLATE
          RIGHT
          from £13.79
          from £13.79
          # 016
          MPN: 4S0937507
          RELAY PLATE
          LEFT
          from £10.12
          from £10.12
          # 017
          MPN: 4S0937554A
          COVER
          RIGHT
          from £10.30
          from £10.30
          # 017
          MPN: 4S0937555A
          COVER
          LEFT
          from £10.30
          from £10.30
          # 018
          MPN: N90739704
          PANEL SCREW
          TP5X22-5X22
          from £0.57
          from £0.57
          # 019
          MPN: N10653201
          HEX COLLARED BOLT
          M6X16-M6X16
          from £1.32
          from £1.32
          # 020
          MPN: N10196103
          OVAL SOCKET HEAD BOLT WITH HEX DRIVE
          M6X16-M6X18
          from £0.78
          from £0.78
          # 021
          MPN: 04C907601
          IMPULSE SENDER
          M6X16
          Supersession
          Supersession
