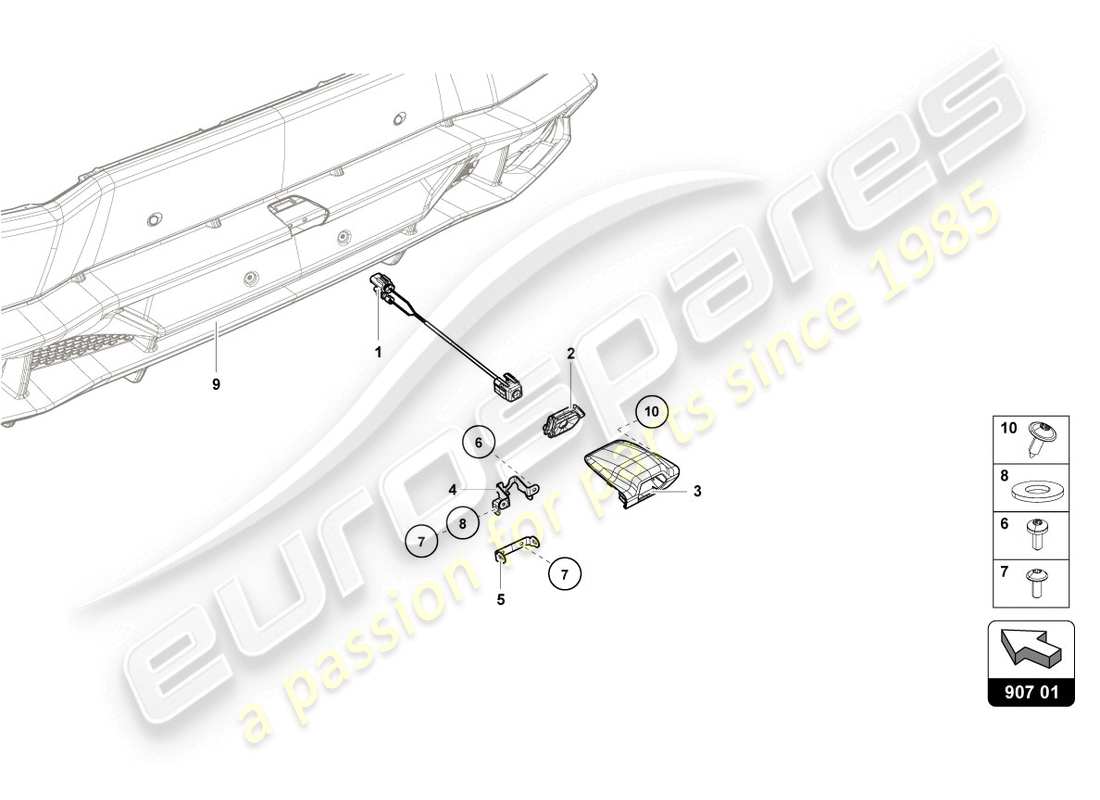

lamborghini lp610-4 coupe (2016) reversing camera parts diagram

907.01.00 - REVERSING CAMERA

Lamborghini LP610-4 COUPE (2016) REVERSING CAMERA Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 5Q0980551C
          REVERSING CAMERA
          from £280.15
          from £280.15
          # 002
          MPN: 4T0807005
          COVER
          from £117.60
          from £117.60
          # 003
          MPN: 4T0807245
          COVER
          OUTER
          from £151.31
          from £151.31
          # 004
          MPN: 4T0807286
          ARM
          from £26.08
          from £26.08
          # 005
          MPN: 4T0807001
          ARM
          from £17.90
          from £17.90
          # 006
          MPN: N10656202
          HEXAGON SOCKET HEAD BOLT
          ST3.5X9.5
          from £0.84
          from £0.84
          # 007
          MPN: N90455206
          HEXAGON SOCKET FLAT HEAD BOLT
          M4X10
          from £0.53
          from £0.53
          # 008
          MPN: N01152221
          WASHER
          4.3X9X0.8-4,3X9X0,8
          from £0.53
          from £0.53
          This part replaces part number 008400401
          # 009
          -
          BUMPER
          SEE ILLUSTRATION : 807.02-REAR
          # 010
          MPN: N90986804
          HEXAGON SOCKET HEAD PANEL BOLT
          4,2X13
          from £0.53
          from £0.53
