lamborghini lp610-4 coupe (2016) headlight washer system parts diagram

955.02.00 - HEADLIGHT WASHER SYSTEM

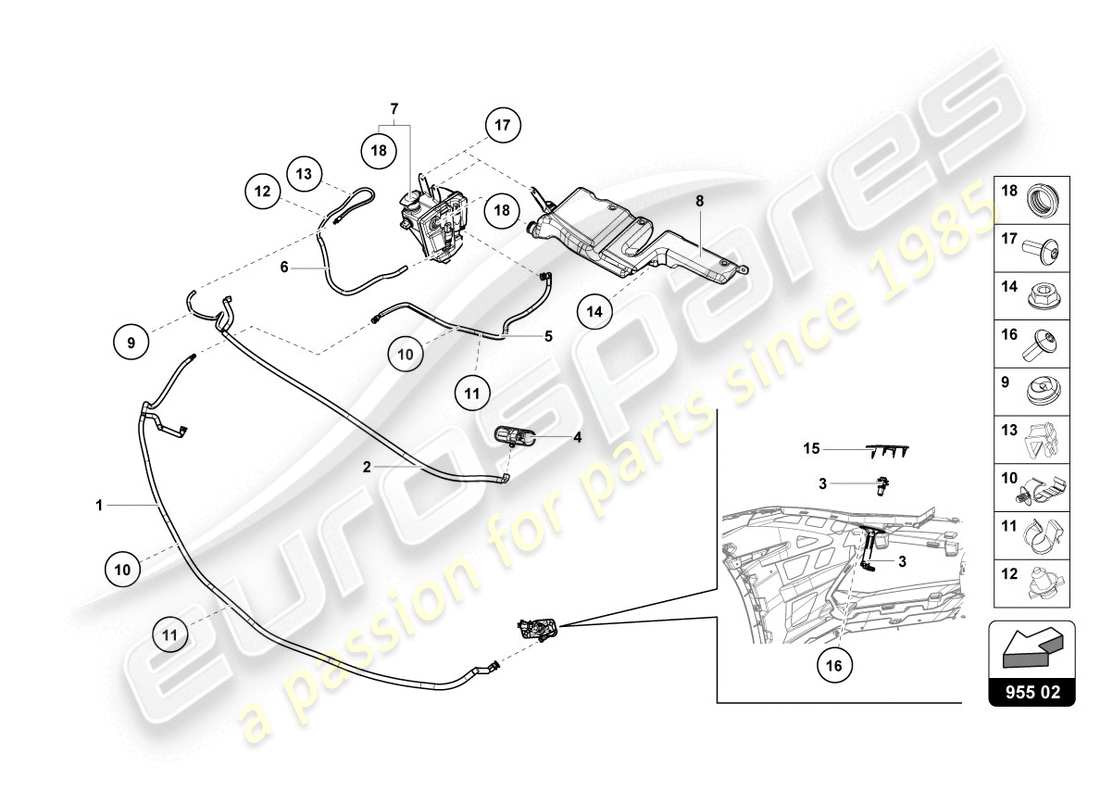

Lamborghini LP610-4 COUPE (2016) HEADLIGHT WASHER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 4T1955970
                      WIRING HARNESS FOR HEADLIGHT WASHER SYSTEM
                      LHD (EUROPE, USA spec vehicles)
                      from £42.11
                      from £42.11
                      HOSE Genuine Lamborghini - New (to order)
                      # 001
                      MPN: 4T2955970
                      WIRING HARNESS FOR HEADLIGHT WASHER SYSTEM
                      RHD (UK spec vehicles)
                      from £42.85
                      from £42.85
                      HOSE LAVAFARI Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 4T0955964A
                      PIPE
                      from £50.94
                      from £50.94
                      HOSE Genuine Lamborghini - New In stock
                      # 003
                      MPN: 4T0955101
                      INJECTOR UNIT FOR HEADLIGHT CLEANING
                      LEFT
                      from £34.02
                      from £34.02
                      EYE BALL HOLDER Genuine Lamborghini - New In stock
                      # 003
                      MPN: 4T0955102
                      INJECTOR UNIT FOR HEADLIGHT CLEANING
                      RIGHT
                      from £34.02
                      from £34.02
                      EYE BALL HOLDER Genuine Lamborghini - New In stock
                      # 004
                      MPN: 5M0955985C
                      WATER JET
                      from £2.95
                      from £2.95
                      SPRAY JET FRONT (UNBEHEIZT) Genuine Lamborghini - New In stock
                      # 004
                      MPN: 5M0955986C
                      SPRAY NOZZLE, HEATED
                      HEATED
                      Supersession
                      Supersession
                      Genuine Lamborghini (no longer available to order)
                      # 005
                      MPN: 4T0955962
                      PIPE
                      from £7.21
                      from £7.21
                      HOSE DA TERGI/PARAURTI Genuine Lamborghini - New (to order)
                      HOSE DA TERGI/PARAURTI Genuine Lamborghini - Used In stock
                      # 006
                      MPN: 4T0955972A
                      CORRUGATED PIPE
                      from £13.98
                      from £13.98
                      SCHLAUCH Genuine Lamborghini - New (to order)
                      SCHLAUCH Genuine Lamborghini - Used In stock
                      # 007
                      MPN: 4T1955449A
                      CONTAINER FOR CLEANING MATERIAL
                      LHD (EUROPE, USA spec vehicles)
                      from £74.02
                      from £74.02
                      WATER RESERVOIR Genuine Lamborghini - New (to order)
                      # 007
                      MPN: 4T2955449A
                      CONTAINER FOR CLEANING MATERIAL
                      RHD (UK spec vehicles)
                      from £74.10
                      from £74.10
                      WATER RESERVOIR Genuine Lamborghini - New (to order)
                      # 008
                      MPN: 4T1955945A
                      CONTAINER FOR CLEANING MATERIAL
                      LHD (EUROPE, USA spec vehicles)
                      from £28.68
                      from £28.68
                      WATER RESERVOIR Genuine Lamborghini - New (to order)
                      WATER RESERVOIR Genuine Lamborghini - Used In stock
                      # 008
                      MPN: 4T2955945A
                      CONTAINER FOR CLEANING MATERIAL
                      RHD (UK spec vehicles)
                      from £28.68
                      from £28.68
                      WATER RESERVOIR Genuine Lamborghini - New (to order)
                      WATER RESERVOIR Genuine Lamborghini - Used In stock
                      # 009
                      MPN: 420955997
                      GROMMET
                      from £1.98
                      from £1.98
                      GROMMET FRA Genuine Lamborghini - New In stock
                      # 010
                      MPN: N90681601
                      CORRUGATED TUBE CLIP
                      from £0.53
                      from £0.53
                      CORRUGATED HOSE A13 Genuine Lamborghini - New (to order)
                      # 011
                      MPN: 1J0955846
                      TERMINAL
                      from £0.66
                      from £0.66
                      HOSE SUPPORT Genuine Lamborghini - New In stock
                      # 012
                      MPN: 3D0971838K
                      CABLE TIES
                      from £0.80
                      from £0.80
                      CABLE TIE Genuine Lamborghini - New In stock
                      # 013
                      MPN: 7L5971847B
                      CABLE TIE WITH TERMINAL SOCKET
                      from £1.90
                      from £1.90
                      CABLE CLAMP 193.00X1.00-45.00 Genuine Lamborghini - New In stock
                      # 014
                      MPN: N91173301
                      HEX. NUT WITH WASHER
                      from £1.47
                      from £1.47
                      HEXAGON NUT W. M6 Genuine Lamborghini - New (to order)
                      hex. nut with washer (N 91173301) Genuine Porsche Part - New (to order)
                      # 015
                      MPN: 4T0955259
                      COVER
                      LEFT
                      from £95.11
                      from £95.11
                      CAP WASHER COVER ASSY Genuine Lamborghini - New In stock
                      # 015
                      MPN: 4T0955260
                      COVER
                      RIGHT
                      from £95.11
                      from £95.11
                      CAP WASHER COVER ASSY Genuine Lamborghini - New In stock
                      # 016
                      MPN: N90698605
                      HEXAGON SOCKET HEAD PANEL BOLT
                      ST4,2X16
                      from £1.00
                      from £1.00
                      HEXAGON SOCKET HEAD PANEL BOLT, M4.2 x 16 Genuine Lamborghini - New In stock
                      Hexagon socket head panel bolt (N 90698605) Genuine Porsche Part - New (to order)
                      # 017
                      MPN: N91042302
                      OVAL HEXAGON SOCKET HEAD BOLT
                      M6X16
                      from £0.63
                      from £0.63
                      HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
                      Oval hexagon socket head bolt (N 91042302) Genuine Porsche Part - New In stock
                      # 018
                      MPN: 4T0955193
                      SEAL
                      from £3.07
                      from £3.07
                      GASKET Genuine Lamborghini - New (to order)
