lamborghini lp610-4 coupe (2017) aerial parts diagram

035.02.00 - aerial

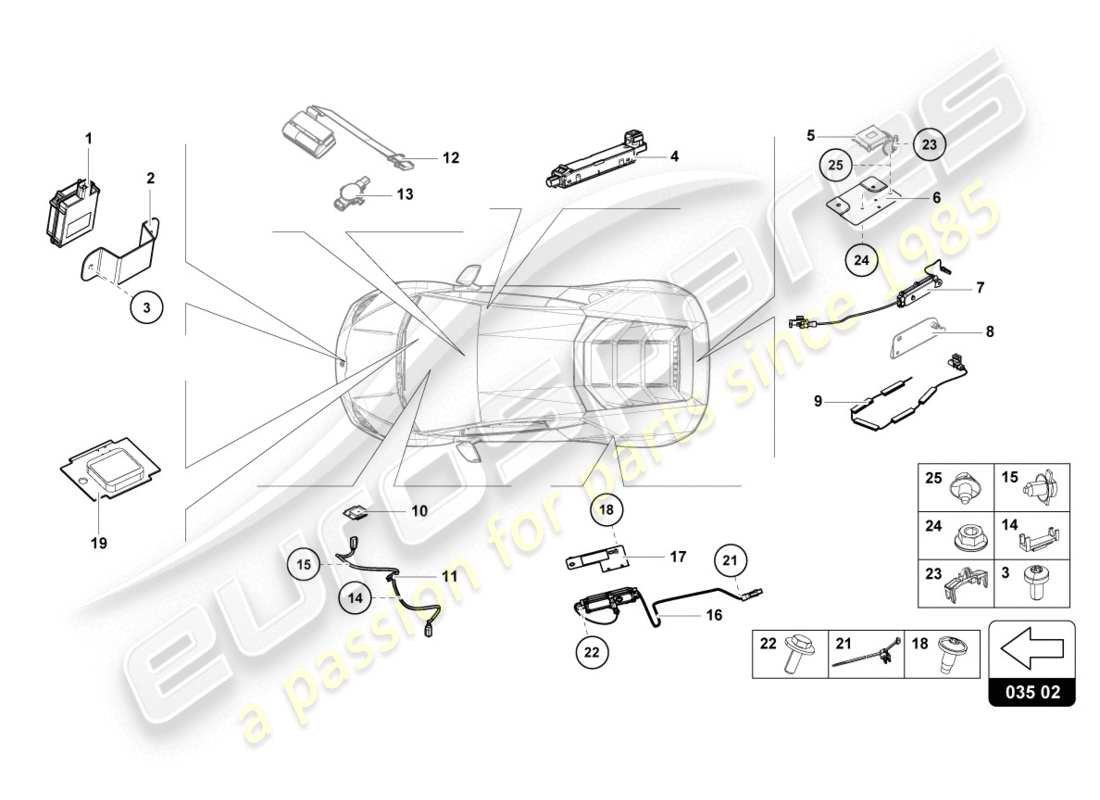

Lamborghini LP610-4 COUPE (2017) AERIAL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4G0907410
          CONTROL UNIT FOR OPENING GARAGE DOOR
          (EUROPE, UK spec vehicles)
          from £475.56
          from £475.56
          # 001
          MPN: 4G0907410A
          CONTROL UNIT FOR OPENING GARAGE DOOR
          (USA spec vehicles)
          from £864.65
          from £864.65
          # 002
          MPN: 470807777
          BRACKET
          from £6.59
          from £6.59
          # 003
          MPN: N10657201
          OVAL HEAD PANEL SCREW
          6,3X16
          from £0.51
          from £0.51
          # 004
          MPN: 4S0035225A
          AERIAL AMPLIFIER
          FM-WINDSCREEN FRAME RIGHT (EUROPE, UK spec vehicles)
          from £59.23
          from £59.23
          # 004
          MPN: 4S0035225D
          AERIAL AMPLIFIER
          FM/DAB-WINDSCREEN FRAME RIGHT
          from £32.58
          from £32.58
          # 004
          MPN: 4S0035225G
          AERIAL AMPLIFIER
          FZV-WINDSCREEN FRAME LEFT
          from £32.58
          from £32.58
          # 005
          MPN: 4S0035503A
          -SDARS- AERIAL
          NAR (USA spec vehicles)
          from £269.77
          from £269.77
          # 006
          -
          ARM
          # 006
          -
          ARM
          # 007
          MPN: 4S0035225
          AERIAL AMPLIFIER
          AM/FM-REAR
          from £66.10
          from £66.10
          # 008
          -
          BRACKET
          # 009
          MPN: 4T8035507A
          aerial
          FM
          from £102.03
          from £102.03
          # 010
          MPN: 8F0919889
          aerial
          GPS-'GPS'
          from £32.53
          from £32.53
          # 011
          MPN: 4T0971650
          CONNECTION CABLE
          LHD (EUROPE, USA spec vehicles)
          from £22.85
          from £22.85
          # 011
          MPN: 4T2971650
          CONNECTION CABLE
          RHD (UK spec vehicles)
          from £24.26
          from £24.26
          # 012
          -
          aerial
          # 013
          -
          SENSOR FOR RAIN AND LIGHT RECOGNITION
          # 014
          MPN: 7L6937545
          BRACKET FOR CONNECTOR HOUSING
          1 POINT
          from £1.57
          from £1.57
          # 015
          MPN: 1J0906029A
          BRACKET FOR CONNECTOR HOUSING
          6R0 973 735 1J0 973 835
          from £4.28
          from £4.28
          # 016
          -
          AERIAL AMPLIFIER
          # 017
          -
          BRACKET
          # 018
          -
          FLAT ROUND HEAD BOLT
          # 019
          -
          aerial
          # 020
          -
          SOUND ABSORBER PIECE
          # 021
          MPN: 3D0971838L
          CABLE TIE WITH TERMINAL SOCKET
          4,6X200MM
          from £1.90
          from £1.90
          # 022
          MPN: N10009506
          HEXAGON HEAD BOLT (COMBI)
          from £0.59
          from £0.59
          # 023
          MPN: 1K0937545M
          BRACKET FOR CONNECTOR HOUSING
          from £1.70
          from £1.70
          # 024
          MPN: N10017307
          HEXAGON COLLAR NUT
          from £1.23
          from £1.23
          # 025
          MPN: 3W0971838
          CABLE TIES
          4,6X193MM 6,5/0,3-3,0MM
          from £0.79
          from £0.79
