109.03.00 - TIMING CHAIN

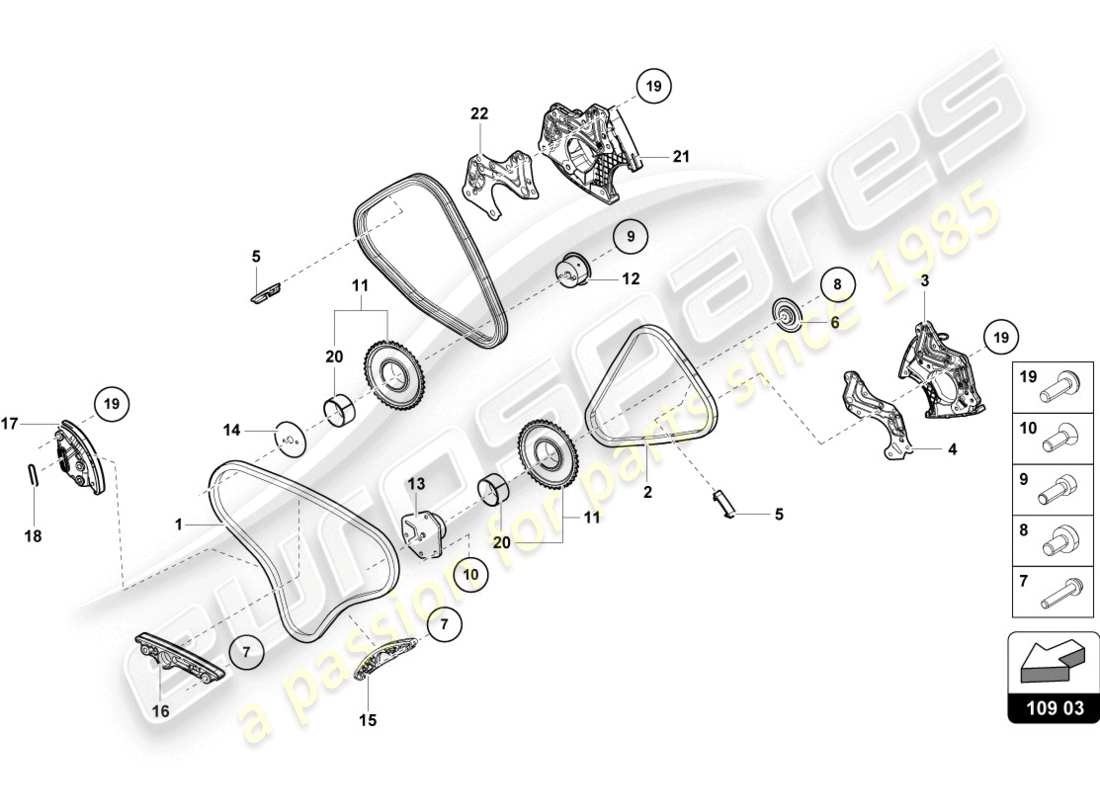

Lamborghini LP610-4 COUPE (2017) TIMING CHAIN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 06E109465BC
TIMING CHAIN
UPPER CENTRE
Supersession
Supersession
# 002
MPN: 06E109465AS
TIMING CHAIN
RIGHT
Supersession
Supersession
# 002
MPN: 06E109465AT
TIMING CHAIN
LEFT
Supersession
Supersession
# 003
MPN: 079109217S
CHAIN TENSIONER
LEFT
Supersession
Supersession
# 004
MPN: 079109139J
SEAL
LEFT
from £11.51
from £11.51
# 005
MPN: 079109470
COVERING
from £3.38
from £3.38
# 006
MPN: 079109180A
AXIAL BEARING
from £12.93
from £12.93
# 007
MPN: N91129001
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M7X36
from £3.16
from £3.16
# 008
MPN: N90888502
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X16
from £1.65
from £1.65
# 009
MPN: N90962301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X30
from £3.63
from £3.63
# 010
MPN: N90954903
HEX SOCKET COUNTERSUNK BOLT
M6X18
from £0.58
from £0.58
# 011
MPN: 06E109077N
CHAIN SPROCKET
Z=24
from £140.51
from £140.51
# 012
MPN: 079109224E
BEARING PIN
RIGHT
from £55.44
from £55.44
# 013
MPN: 079109224F
BEARING PIN
LEFT
from £61.05
from £61.05
# 014
MPN: 079109180D
AXIAL BEARING
from £6.58
from £6.58
# 015
MPN: 079109469AL
GUIDE RAIL
from £19.42
from £19.42
# 016
MPN: 079109469AM
GUIDE RAIL
from £16.91
from £16.91
# 017
MPN: 079109507AP
CHAIN TENSIONER
from £80.33
from £80.33
This part replaces part number 079109507T
# 018
MPN: 079109139L
SEAL
from £9.18
from £9.18
# 019
MPN: N10124304
OVAL HEXAGON SOCKET HEAD BOLT
M6X20
from £0.97
from £0.97
# 020
MPN: 079109247P
BEARING BUSH
from £8.48
from £8.48
# 021
MPN: 079109218AB
CHAIN TENSIONER
from £103.32
from £103.32
This part replaces part number 079109218S
# 022
MPN: 079109139K
SEAL
RIGHT
from £11.51
from £11.51
