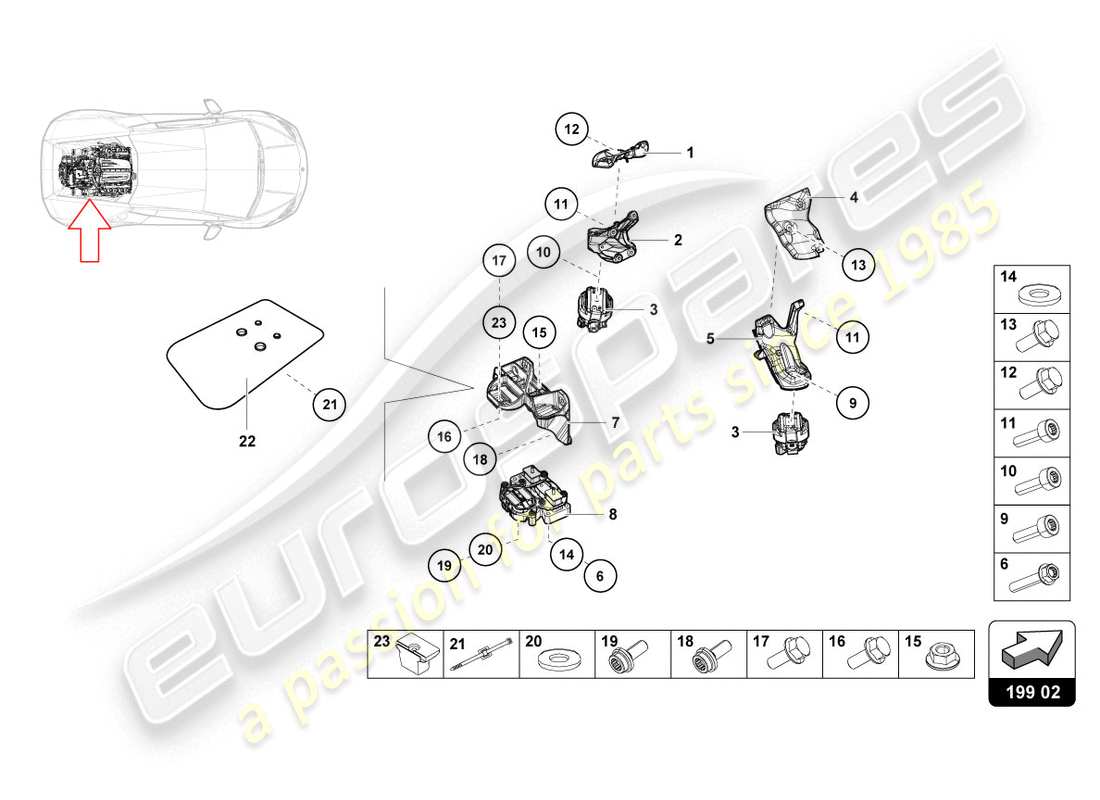

199.02.00 - SECURING PARTS FOR ENGINE

Lamborghini LP610-4 COUPE (2017) SECURING PARTS FOR ENGINE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 420199387E
          GUARD PLATE
          LEFT
          from £7.85
          from £7.85
          # 002
          MPN: 420199307H
          SUPPORT
          LEFT
          from £94.88
          from £94.88
          # 003
          MPN: 420199381AA
          Engine Mounting
          from £189.27
          from £189.27
          This part replaces part number 420199381Q - and 3 more. Click to view details
          # 004
          MPN: 4S0199388A
          GUARD PLATE
          RIGHT
          from £7.85
          from £7.85
          # 005
          MPN: 4S0199308B
          SUPPORT
          RIGHT
          from £83.46
          from £83.46
          # 006
          MPN: N10683301
          HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
          M10X115
          from £3.90
          from £3.90
          # 007
          MPN: 420399115E
          GEARBOX SUPPORT
          from £230.00
          from £230.00
          # 008
          MPN: 420399419D
          gearbox mounting
          from £397.74
          from £397.74
          # 009
          MPN: N10702603
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M10X35
          from £2.42
          from £2.42
          # 010
          MPN: N91146901
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M10X30
          from £2.33
          from £2.33
          # 011
          MPN: N10702701
          HEXAGON BOLT
          M10X40
          from £2.73
          from £2.73
          # 012
          MPN: N10305302
          HEXAGON HEAD BOLT (COMBI)
          M6X20
          from £1.34
          from £1.34
          # 013
          MPN: N10718801
          HEX COLLARED BOLT
          M6X17
          from £0.59
          from £0.59
          # 014
          MPN: N90315204
          WASHER
          10,5X34X4
          from £0.98
          from £0.98
          # 015
          MPN: N91157402
          HEXAGON COLLAR NUT
          M8
          from £1.34
          from £1.34
          # 016
          MPN: N10640801
          HEXAGON BOLT
          M8X50
          from £2.01
          from £2.01
          # 017
          MPN: N10626603
          HEX COLLARED BOLT
          M8X30
          from £1.43
          from £1.43
          # 017
          MPN: N91073401
          HEX COLLARED BOLT
          M8X75
          from £2.15
          from £2.15
          # 018
          MPN: N10720402
          SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
          M10X40
          from £2.47
          from £2.47
          # 019
          MPN: N10689301
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M8X25
          from £1.96
          from £1.96
          # 020
          MPN: N90033308
          WASHER
          8.4X20X2.5
          from £0.77
          from £0.77
          # 021
          MPN: 5M0971838
          CABLE TIE WITH TERMINAL SOCKET
          4,6X200MM
          from £1.70
          from £1.70
          # 022
          MPN: 420825773
          HEAT SHIELD PLATE
          from £39.47
          from £39.47
          # 023
          MPN: 4S0199503
          BALANCE WEIGHT
          800G
          from £86.32
          from £86.32
