lamborghini lp610-4 coupe (2017) fuel filler neck parts diagram

201.08.00 - FUEL FILLER NECK

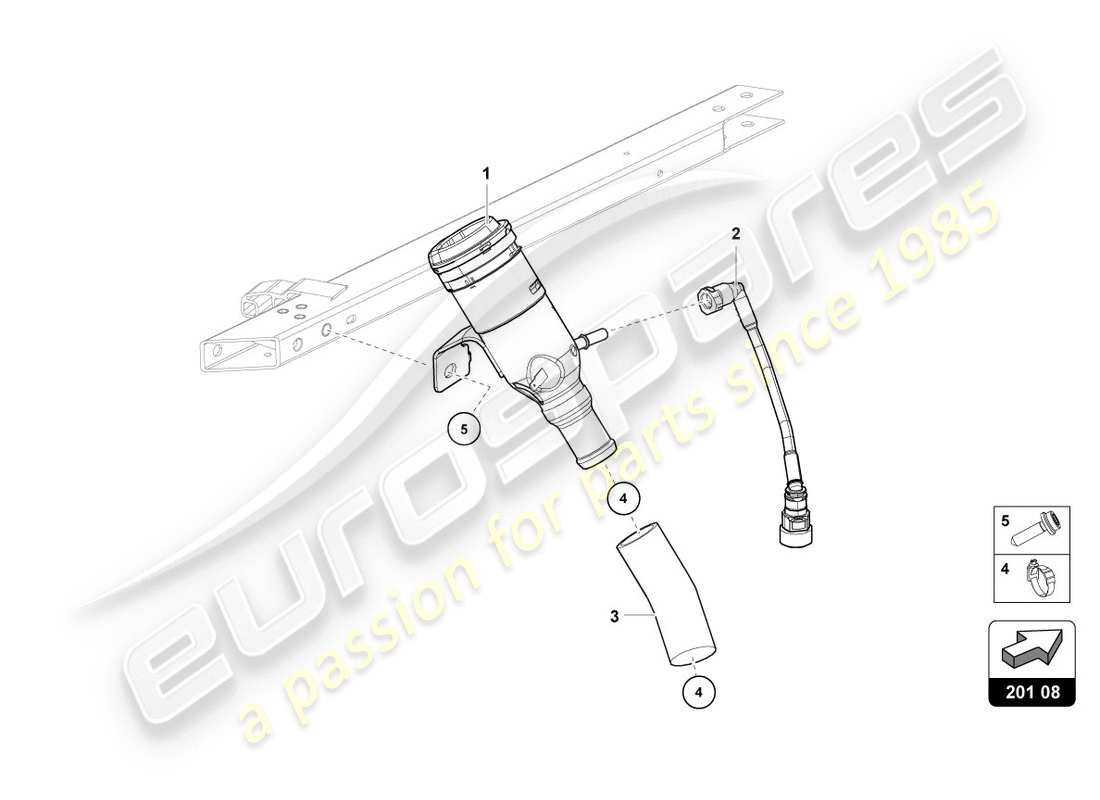

Lamborghini LP610-4 COUPE (2017) FUEL FILLER NECK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 4T8201135H
        FUEL FILLER NECK
        from £323.38
        from £323.38
        # 002
        MPN: 4T8201163A
        FUEL LINE
        from £273.45
        from £273.45
        # 003
        MPN: 4T8201609A
        FUEL HOSE
        from £34.90
        from £34.90
        # 004
        MPN: N91104001
        SPRING BAND CLAMP
        25-40X9
        from £4.03
        from £4.03
        # 005
        MPN: N91215101
        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
        M8X25
        from £1.43
        from £1.43
