lamborghini lp610-4 coupe (2017) drive shaft parts diagram

521.01.00 - DRIVE SHAFT

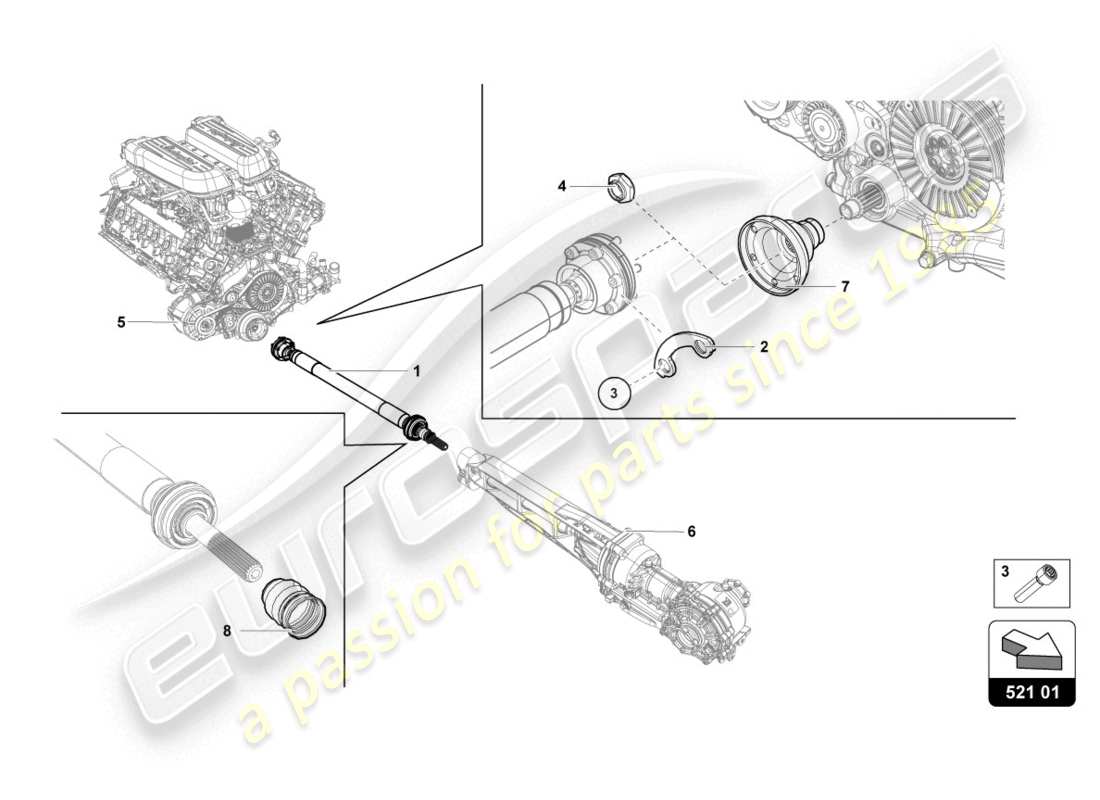

Lamborghini LP610-4 COUPE (2017) DRIVE SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 4T0521101
        CARDAN SHAFT
        from £775.16
        from £775.16
        # 002
        MPN: 420407357
        SPACER
        15,0MM
        from £1.38
        from £1.38
        # 003
        MPN: N10698301
        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
        M8X38X28
        from £1.43
        from £1.43
        # 004
        MPN: 086311495
        HEXAGON NUT
        M10X1,5
        from £19.77
        from £19.77
        # 005
        -
        engine
        # 006
        -
        front axle differential
        # 007
        MPN: 086311807C
        FLANGE
        from £98.58
        from £98.58
        # 008
        MPN: 4T0598777
        DUST COVER
        from £78.95
        from £78.95
