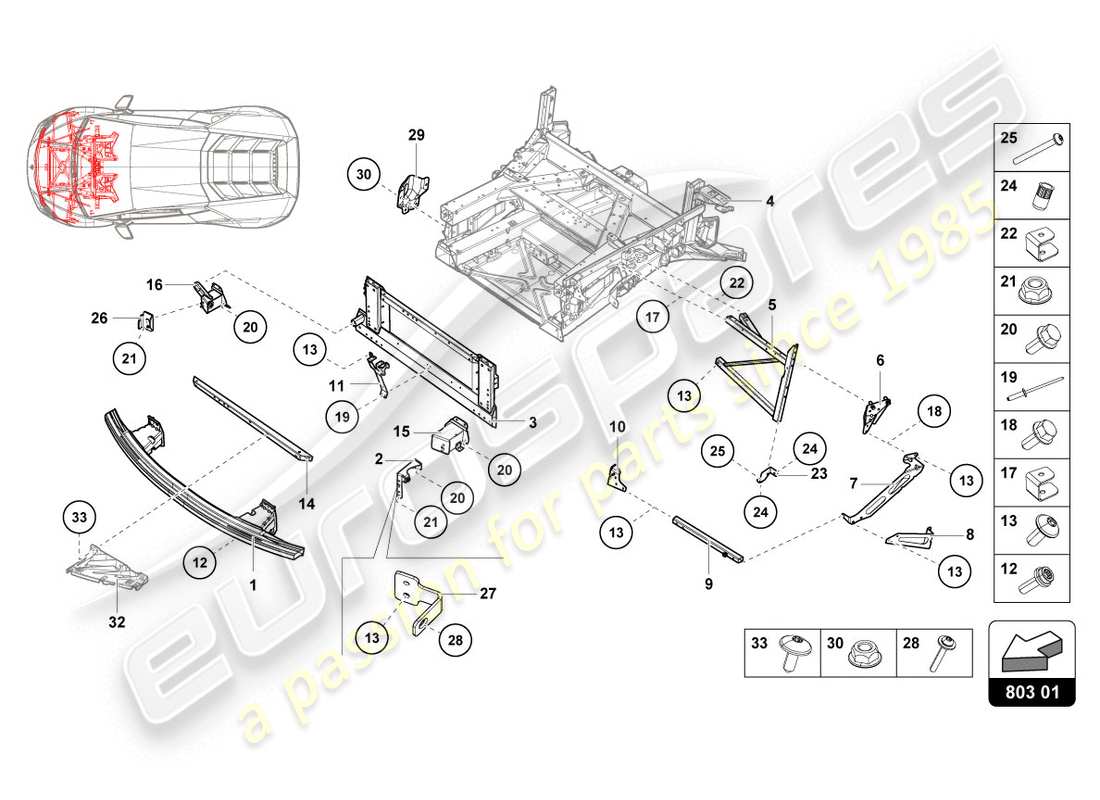

803.01.00 - FRONT FRAME

Lamborghini LP610-4 COUPE (2017) FRONT FRAME Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 4T0807109C
    STORAGE FRAME
    CONTACT YOUR AREA MANAGER-FRONT (EUROPE, UK spec vehicles)
    from £2,091.38
    from £2,091.38
    # 001
    MPN: 4T0807109D
    STORAGE FRAME
    CONTACT YOUR AREA MANAGER-FRONT (USA spec vehicles)
    from £1,621.22
    from £1,621.22
    # 002
    MPN: 4T0805177A
    MOUNTING BAR
    LEFT
    Supersession
    Supersession
    # 002
    MPN: 4T0805178A
    MOUNTING BAR
    RIGHT
    Supersession
    Supersession
    # 003
    MPN: 4T0805851C
    CROSS MEMBER
    CONTACT YOUR AREA MANAGER-FRONT
    from £619.95
    from £619.95
    # 004
    -
    CHASSIS
    # 005
    MPN: 4T0806191B
    BRACE
    CONTACT YOUR AREA MANAGER-LEFT
    from £907.90
    from £907.90
    # 005
    MPN: 4T0806192B
    BRACE
    CONTACT YOUR AREA MANAGER-RIGHT
    from £907.90
    from £907.90
    # 006
    MPN: 4T0806125D
    SUPPORT
    LEFT
    Supersession
    Supersession
    This part replaces part number 4T0806125C
    # 006
    MPN: 4T0806126D
    SUPPORT
    CONTACT YOUR AREA MANAGER-RIGHT
    Supersession
    Supersession
    # 007
    MPN: 4T0805327C
    ARM
    CONTACT YOUR AREA MANAGER-LEFT FRONT
    from £61.04
    from £61.04
    # 007
    MPN: 4T0805328C
    ARM
    CONTACT YOUR AREA MANAGER-RIGHT FRONT
    from £122.08
    from £122.08
    # 008
    MPN: 4T0805379C
    ARM
    CONTACT YOUR AREA MANAGER-LEFT FRONT
    from £54.60
    from £54.60
    # 008
    MPN: 4T0805380C
    ARM
    CONTACT YOUR AREA MANAGER-RIGHT FRONT
    from £109.20
    from £109.20
    # 009
    MPN: 4T0805667C
    REINFORCEMENT
    LEFT
    Supersession
    Supersession
    # 009
    MPN: 4T0805668C
    REINFORCEMENT
    RIGHT
    Supersession
    Supersession
    # 010
    MPN: 4T0805255D
    REINFORCEMENT
    LEFT
    from £27.63
    from £27.63
    # 010
    MPN: 4T0805256D
    REINFORCEMENT
    RIGHT
    from £27.63
    from £27.63
    # 011
    MPN: 4T0805532B
    ARM
    CONTACT YOUR AREA MANAGER
    from £63.36
    from £63.36
    # 012
    MPN: N91104901
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
    M8X25
    from £1.07
    from £1.07
    # 013
    MPN: N91042302
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X16
    from £0.63
    from £0.63
    # 014
    MPN: 4T0805563B
    LOCK CARRIER
    CONTACT YOUR AREA MANAGER
    from £100.26
    from £100.26
    # 015
    MPN: 4T0807551E
    ARM
    CONTACT YOUR AREA MANAGER-LEFT
    from £247.73
    from £247.73
    This part replaces part number 4T0807551D
    # 016
    MPN: 4T0807552E
    ARM
    CONTACT YOUR AREA MANAGER-RIGHT
    from £194.98
    from £194.98
    This part replaces part number 4T0807552D
    # 017
    MPN: 4S0806507B
    RETAINING PLATE
    LEFT
    from £10.34
    from £10.34
    # 017
    MPN: 4S0806508B
    RETAINING PLATE
    RIGHT
    from £18.17
    from £18.17
    # 018
    MPN: N90533005
    HEXAGON HEAD BOLT (COMBI)
    M6X20
    from £1.21
    from £1.21
    This part replaces part number N90533002
    # 019
    MPN: N90692402
    POP RIVET
    4,8X10 N906924
    from £1.13
    from £1.13
    # 020
    MPN: N10049308
    HEXAGON HEAD BOLT (COMBI)
    M8X20
    from £1.06
    from £1.06
    # 021
    MPN: N10609201
    HEXAGON COLLAR NUT
    M8
    from £0.53
    from £0.53
    # 022
    MPN: 4S0805371B
    RETAINING PLATE
    LEFT
    from £16.44
    from £16.44
    # 022
    MPN: 4S0805372B
    RETAINING PLATE
    RIGHT
    from £16.44
    from £16.44
    # 023
    MPN: 4T0805259B
    BRACKET
    CONTACT YOUR AREA MANAGER-LEFT LOWER
    from £8.37
    from £8.37
    # 023
    MPN: 4T0805260B
    BRACKET
    CONTACT YOUR AREA MANAGER-RIGHT LOWER
    from £8.37
    from £8.37
    # 024
    MPN: N91097301
    HEXAGON SOCKET FLAT HEAD BOLT
    M6X45
    from £1.23
    from £1.23
    # 025
    MPN: N10009507
    HEXAGON HEAD BOLT (COMBI)
    M6X18
    from £0.52
    from £0.52
    # 026
    MPN: 4T0803662
    REINFORCEMENT
    (USA spec vehicles)
    from £19.72
    from £19.72
    # 027
    -
    ARM
    # 028
    -
    HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
    # 029
    MPN: 4T0806591B
    BRACKET
    LEFT
    from £40.12
    from £40.12
    # 029
    MPN: 4T0806592B
    BRACKET
    RIGHT
    from £40.12
    from £40.12
    # 030
    MPN: N01508210
    HEXAGON COLLAR NUT
    M6
    from £1.21
    from £1.21
    # 031
    MPN: WHT007052
    FLOW DRILL SCREW
    from £0.52
    from £0.52
    # 032
    -
    BRACKET
    # 033
    MPN: N91042302
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X16
    from £0.63
    from £0.63
