lamborghini lp610-4 coupe (2017) for pick parts diagram

899.03.00 - FOR PICK

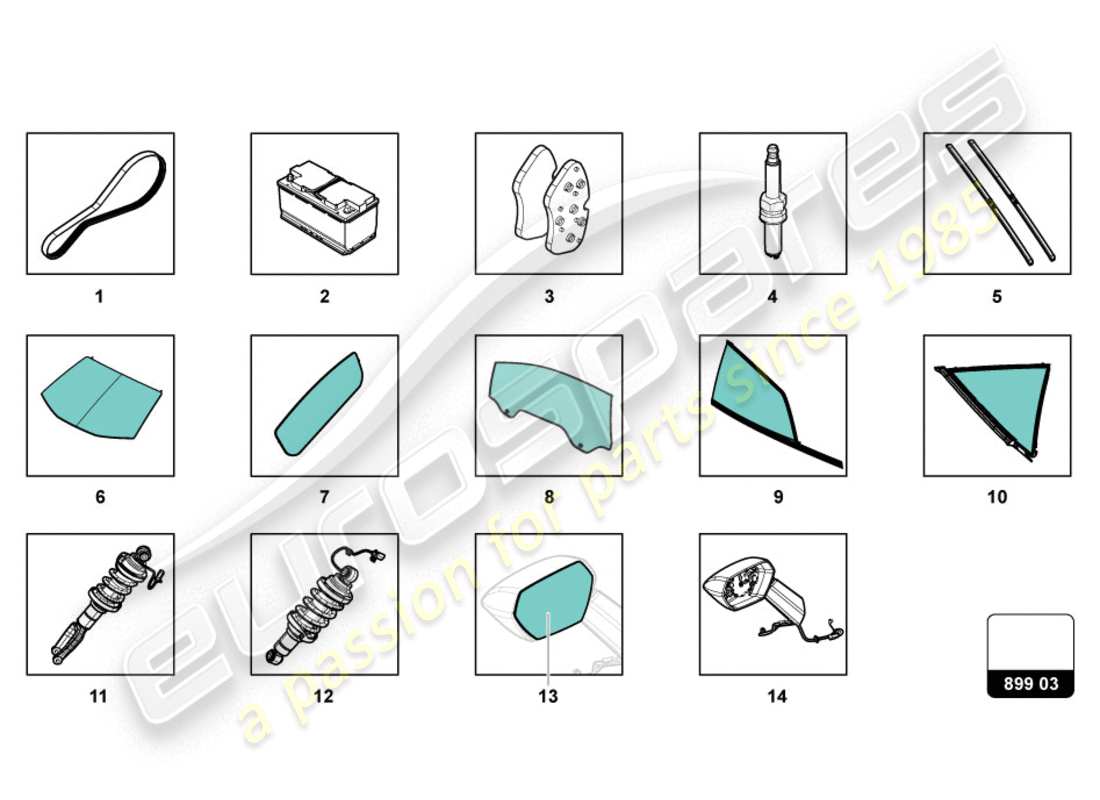

Lamborghini LP610-4 COUPE (2017) FOR PICK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 07L903137T
POLY-V-BELT
17,8X970MM (USA spec vehicles)
from £52.40
from £52.40
# 002
MPN: 7P0915105C
BATTERY, FILLED AND CHARGED
(USA spec vehicles)
Supersession
Supersession
# 003
MPN: 4S0615301A
CERAMIC BRAKE DISC (VENTED)
LEFT FRONT (USA spec vehicles)
from £4,530.73
from £4,530.73
# 003
MPN: 4S0615302A
CERAMIC BRAKE DISC (VENTED)
RIGHT FRONT (USA spec vehicles)
from £4,530.73
from £4,530.73
# 003
MPN: 4S0615601A
CERAMIC BRAKE DISC (VENTED)
LEFT REAR (USA spec vehicles)
from £4,530.73
from £4,530.73
# 003
MPN: 4S0615602A
CERAMIC BRAKE DISC (VENTED)
RIGHT REAR (USA spec vehicles)
from £2,491.90
from £2,491.90
This part replaces part number 420615602F which we have in stock - and 2 more. Click to view details
# 004
MPN: 06H905601C
SPARK PLUG LONGLIFE
(USA spec vehicles)
from £21.15
from £21.15
This part replaces part number 06H905601A which we have in stock - and 2 more. Click to view details
# 005
MPN: 4T1955405
AERO WIPER ARM
DRIVER SIDE (USA spec vehicles)
from £218.76
from £218.76
# 005
MPN: 4T1955406A
AERO WIPER ARM
PASSENGER SIDE (USA spec vehicles)
from £218.76
from £218.76
# 006
MPN: 4T0845099G
WINDSCREEN
(USA spec vehicles)
from £2,727.95
from £2,727.95
# 007
MPN: 4T8845501B
REAR WINDOW
(USA spec vehicles)
from £266.79
from £266.79
# 008
MPN: 4T8845201
DOOR WINDOW
LEFT (USA spec vehicles)
from £545.59
from £545.59
# 008
MPN: 4T8845202
DOOR WINDOW
RIGHT (USA spec vehicles)
from £545.59
from £545.59
# 009
MPN: 4T8845299D
side window (fixed)
LEFT REAR (USA spec vehicles)
from £546.45
from £546.45
# 009
MPN: 4T8845300D
side window (fixed)
RIGHT REAR (USA spec vehicles)
from £300.55
from £300.55
# 010
MPN: 4T0845115C
side window (fixed)
LEFT FRONT (USA spec vehicles)
from £244.44
from £244.44
# 010
MPN: 4T0845116C
side window (fixed)
RIGHT FRONT (USA spec vehicles)
from £244.44
from £244.44
# 011
MPN: 4T0412019AC
Shock Absorbers
AMR-FRONT (USA spec vehicles)
from £2,014.75
from £2,014.75
# 011
MPN: 4T0412019AD
Shock Absorbers
AMR + LIFTING SYSTEM-FRONT (USA spec vehicles)
from £3,573.46
from £3,573.46
This part replaces part number 4T0412019R which we have in stock
# 011
MPN: 4T0412019AF
Shock Absorbers
LIFTING SYSTEM-FRONT (USA spec vehicles)
Supersession
Supersession
# 011
MPN: 4T0412019D
Shock Absorbers
SPORT-FRONT (USA spec vehicles)
from £936.90
from £936.90
# 011
MPN: 4T0412019M
Shock Absorbers
STANDARD-FRONT (USA spec vehicles)
from £928.60
from £928.60
# 012
MPN: 4T0512019AE
Shock Absorbers
MAGNETIC RIDE-REAR (USA spec vehicles)
from £3,797.33
from £3,797.33
This part replaces part number 4T0512019L
# 012
MPN: 4T0512019N
Shock Absorbers
STANDARD-REAR (USA spec vehicles)
from £634.26
from £634.26
# 013
MPN: 4T0857521G
MIRROR GLASS (CONVEX)
FOR USA, CANADA AND SOUTH KOREA-LEFT (USA spec vehicles)
from £91.22
from £91.22
This part replaces part number 4T0857521
# 013
MPN: 4T0857522G
MIRROR GLASS (CONVEX)
FOR USA, CANADA AND SOUTH KOREA-RIGHT (USA spec vehicles)
from £91.22
from £91.22
# 014
MPN: 4T0857387C001
EXTERIOR MIRROR
SUPPLY VIN - LEFT-INTERMEDIATE PRIMER (USA spec vehicles)
from £1,936.81
from £1,936.81
# 014
MPN: 4T0857388C001
EXTERIOR MIRROR
SUPPLY VIN - RIGHT-INTERMEDIATE PRIMER (USA spec vehicles)
from £1,936.81
from £1,936.81
# 014
MPN: 4T0857507A
EXTERIOR MIRROR
SUPPLY VIN-LEFT (USA spec vehicles)
from £1,603.92
from £1,603.92
# 014
MPN: 4T0857508B
EXTERIOR MIRROR
SUPPLY VIN-RIGHT (USA spec vehicles)
from £1,603.92
from £1,603.92
