915.01.00 - Battery

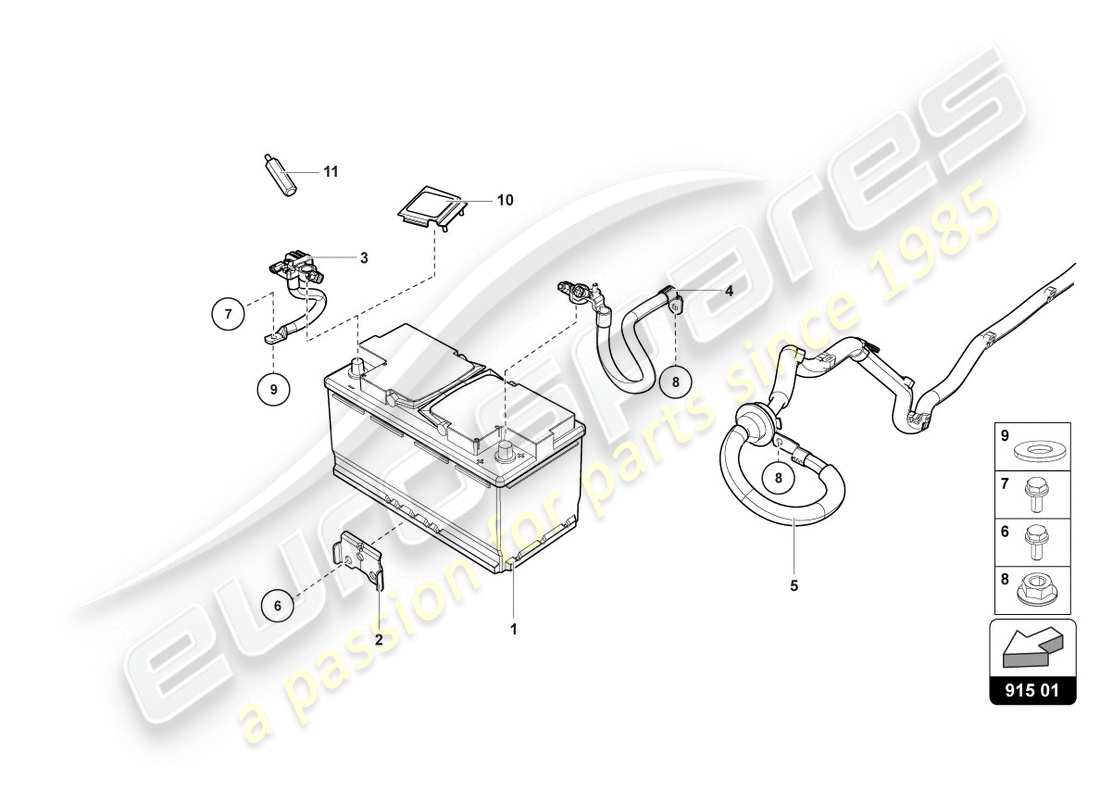

Lamborghini LP610-4 COUPE (2017) BATTERY Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 7P0915105C
BATTERY, FILLED AND CHARGED
58AH/340A
Supersession
Supersession
# 002
MPN: 4S0805137D
RETAINER FOR BATTERY
LOWER
from £28.58
from £28.58
# 003
MPN: 4S0915181
CONTROL UNIT FOR BATTERY MONITORING
from £92.26
from £92.26
# 004
MPN: 4S0971225
WIRING SET FOR BATTERY +
from £26.59
from £26.59
# 005
MPN: 4T0971224A
WIRING SET FOR THREE-PHASE ALTERNATOR
from £89.88
from £89.88
# 006
MPN: N10006706
HEXAGON HEAD BOLT (COMBI)
M8X22-M8X22
from £1.84
from £1.84
# 007
MPN: N90848003
HEX COLLARED BOLT
M8X20-M8X18
from £2.90
from £2.90
# 008
MPN: N90295502
HEXAGON COLLAR NUT
M8
from £1.42
from £1.42
# 009
MPN: N01152527
WASHER
8,4X16X1,6
from £0.53
from £0.53
This part replaces part number N01152520
# 010
MPN: 1K0971813F
COVER CAP
from £2.13
from £2.13
# 011
MPN: 4S0972501
SLAVE START SOCKET
from £10.30
from £10.30
