971.03.00 - WIRING

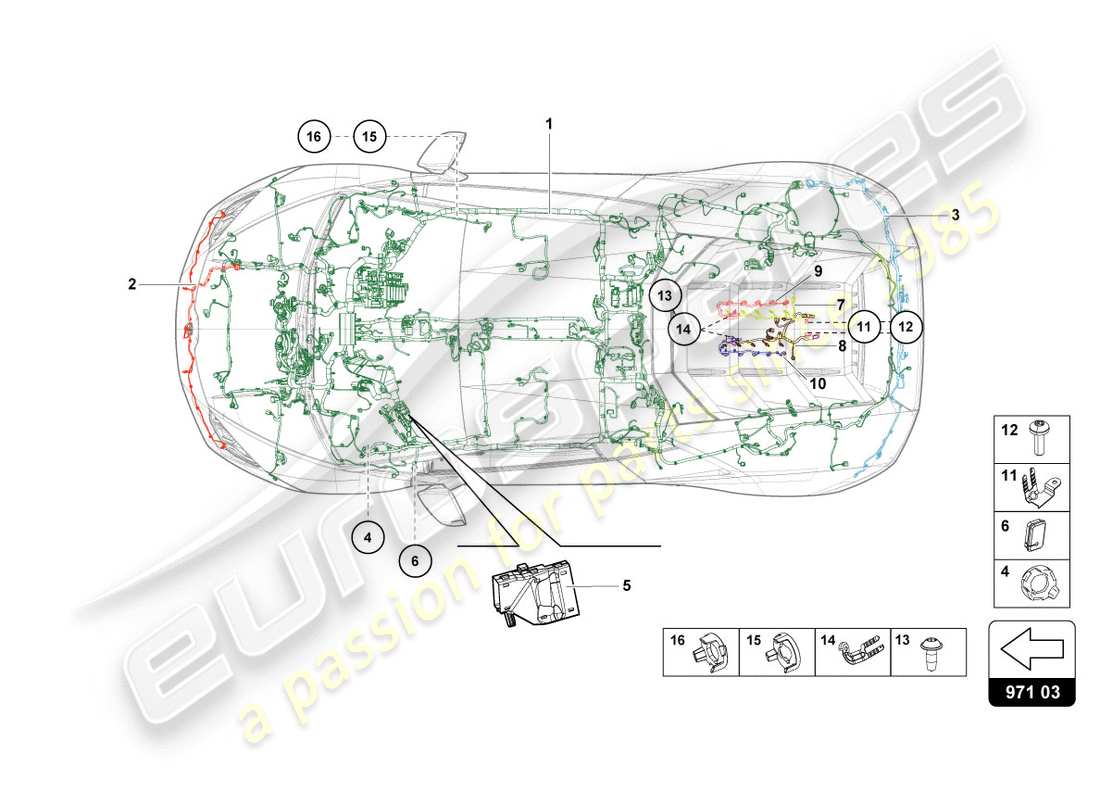

Lamborghini LP610-4 COUPE (2017) WIRING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 000
          MPN: 4T0951195
          HOSE REINFORCEMENT
          CAMPAIGN L624-A.07.15
          from £0.69
          from £0.69
          # 001
          MPN: 4T8998786
          WIRE SET
          SUPPLY VIN-'MAIN HARNESS'
          from £7,708.72
          from £7,708.72
          # 002
          MPN: 4T0971095C
          WIRE SET
          PARKING SENSORS-FRONT
          from £274.10
          from £274.10
          # 002
          MPN: 4T0971095D
          WIRE SET
          HOMELINK-FRONT
          from £41.90
          from £41.90
          # 002
          MPN: 4T0971095E
          WIRE SET
          HOMELINK / PARKING SENSORS-FRONT
          from £102.03
          from £102.03
          # 003
          MPN: 4T0971085
          WIRE SET
          PLATE LIGHTS-REAR (EUROPE, UK spec vehicles)
          from £36.80
          from £36.80
          # 003
          MPN: 4T0971085A
          WIRE SET
          PLATE LIGHTS / PARKING SENSORS-REAR (EUROPE, UK spec vehicles)
          from £63.25
          from £63.25
          # 003
          MPN: 4T0971085B
          WIRE SET
          PLATE LIGHTS / SIDEMARKERS-REAR (USA spec vehicles)
          from £78.25
          from £78.25
          # 003
          MPN: 4T0971085C
          WIRE SET
          WITH PARK DISTANCE CONTROL AND PARKING SENSORS FRONT AND REAR + WITHOUT REARVIEW CAMERA-REAR (USA spec vehicles)
          from £133.16
          from £133.16
          # 003
          MPN: 4T0971085D
          WIRE SET
          PLATE LIGHTS / REAR VIEW CAMERA / PARKING SENSORS-REAR (EUROPE, UK spec vehicles)
          from £343.27
          from £343.27
          # 003
          MPN: 4T0971085E
          WIRE SET
          PLATE LIGHTS / REAR VIEW CAMERA / PARKING SENSORS / SIDEMARKERS-REAR (USA spec vehicles)
          from £468.64
          from £468.64
          # 004
          MPN: N90937701
          CABLE TIES
          C4.6X193-4.6X193 OUTER
          from £1.06
          from £1.06
          # 005
          MPN: 4S0971341J
          CABLE GUIDE
          from £12.62
          from £12.62
          # 006
          MPN: 8J0959841
          FOAM FILLER PIECE
          from £3.16
          from £3.16
          # 007
          MPN: 07L971627AD
          WIRING HARNESS FOR INJECTORS
          DIRECT
          from £98.58
          from £98.58
          # 008
          MPN: 07L971627AC
          WIRING HARNESS FOR INJECTORS
          CILYNDER HEAD
          from £210.55
          from £210.55
          # 009
          MPN: 07L971627AE
          WIRING HARNESS FOR INJECTORS
          INDIRECT - INTAKE MANIFOLD - CYLINDER 1- 5
          from £98.58
          from £98.58
          # 010
          MPN: 07L971627AF
          WIRING HARNESS FOR INJECTORS
          INDIRECT - INTAKE MANIFOLD - CYLINDER 6- 10
          from £98.58
          from £98.58
          # 011
          MPN: 420971503A
          BRACKET FOR CONNECTOR HOUSING
          BANK 1
          from £5.97
          from £5.97
          # 011
          MPN: 420971503B
          BRACKET FOR CONNECTOR HOUSING
          BANK 2
          from £5.97
          from £5.97
          # 012
          MPN: N10196103
          OVAL SOCKET HEAD BOLT WITH HEX DRIVE
          M6X18-M6X18
          from £0.78
          from £0.78
          # 013
          MPN: N90925202
          HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
          TP6X16-6X16
          from £0.53
          from £0.53
          # 014
          MPN: 07L971845AQ
          BRACKET FOR CONNECTOR HOUSING
          LH
          from £3.03
          from £3.03
          # 014
          MPN: 07L971845AR
          BRACKET FOR CONNECTOR HOUSING
          RH
          from £3.03
          from £3.03
          # 015
          MPN: 4H0971260
          ANTI-TWIST DEVICE
          from £1.21
          from £1.21
          # 016
          MPN: 4B0971260A
          ANTI-TWIST DEVICE
          from £2.27
          from £2.27
          # 017
          MPN: 893971850C
          CABLE TIES
          4,6X200
          from £0.54
          from £0.54
