103.01.00 - engine oil sump

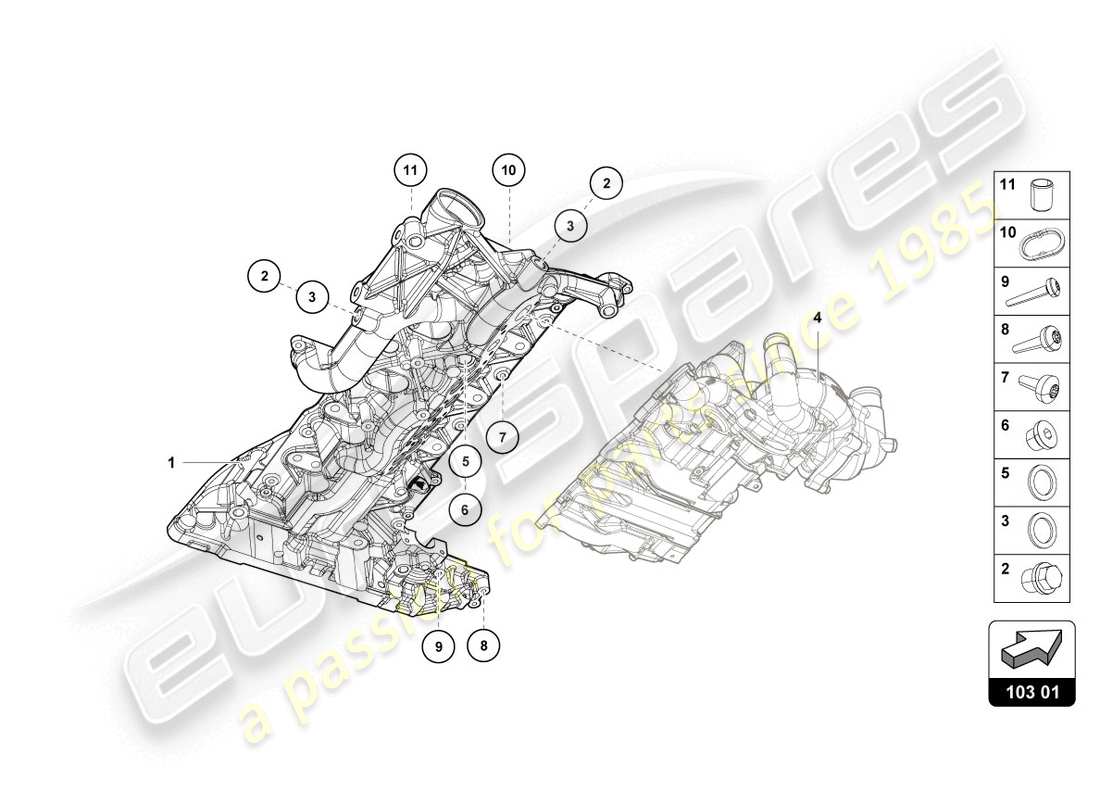

Lamborghini LP610-4 COUPE (2018) ENGINE OIL SUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L103601F
engine oil sump
INCLUDES REF 2,3
from £1,811.43
from £1,811.43
# 002
MPN: N0297014
OIL DRAIN PLUG
M14X1,50
from £3.93
from £3.93
# 003
MPN: N0138493
SEAL RING
14X20 ALUMINIUM
from £2.33
from £2.33
# 004
-
oil pump
# 005
MPN: N0138326
SEAL RING
18X22
from £1.49
from £1.49
# 006
MPN: N0160293
SEALING PLUG
M18X1,5
from £5.53
from £5.53
# 007
MPN: N10124306
OVAL HEXAGON SOCKET HEAD BOLT
M6X20
from £0.89
from £0.89
# 008
MPN: N10554005
ROUND HD. SCREW
M6X35
from £1.80
from £1.80
# 009
MPN: N10405702
HEXAGON SOCKET HEAD BOLT
M6X45
from £0.62
from £0.62
# 010
MPN: 07L103121S
SEAL
from £5.80
from £5.80
# 011
MPN: 077115143D
CENTRE SLEEVE
10,4X12X12
from £8.73
from £8.73
This part replaces part number 077115143
