103.03.00 - cover for timing case

Lamborghini LP610-4 COUPE (2018) COVER FOR TIMING CASE Parts Diagram

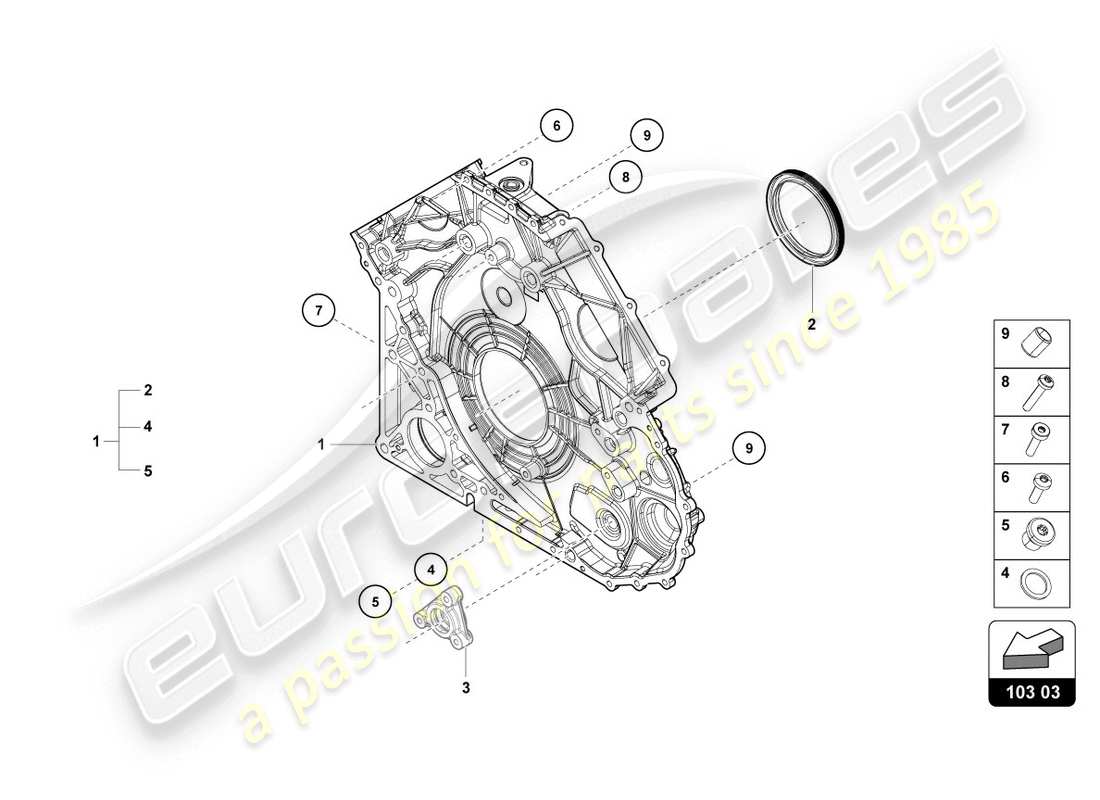

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 07L103171BC
    SEALING FLANGE
    rear
    from £785.10
    from £785.10
    # 002
    MPN: 079103051F
    SHAFT OIL SEAL
    Supersession
    Supersession
    # 003
    -
    REMOVABLE LID
    SEE ILLUSTRATION : 115.02
    # 004
    MPN: N0138063
    SEAL RING
    10X14
    from £2.18
    from £2.18
    # 005
    MPN: N91119401
    SEALING PLUG
    M10X1X10
    from £2.62
    from £2.62
    This part replaces part number N90281702
    # 006
    MPN: N10124306
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X20
    from £0.89
    from £0.89
    # 007
    MPN: N91068601
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
    M8X32
    from £1.60
    from £1.60
    # 008
    MPN: N10156206
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X30
    from £0.89
    from £0.89
    # 009
    MPN: 022103139B
    DOWEL SLEEVE
    16X13,5
    from £2.73
    from £2.73
