103.05.00 - COMPLETE CYLINDER HEAD

Lamborghini LP610-4 COUPE (2018) COMPLETE CYLINDER HEAD Parts Diagram

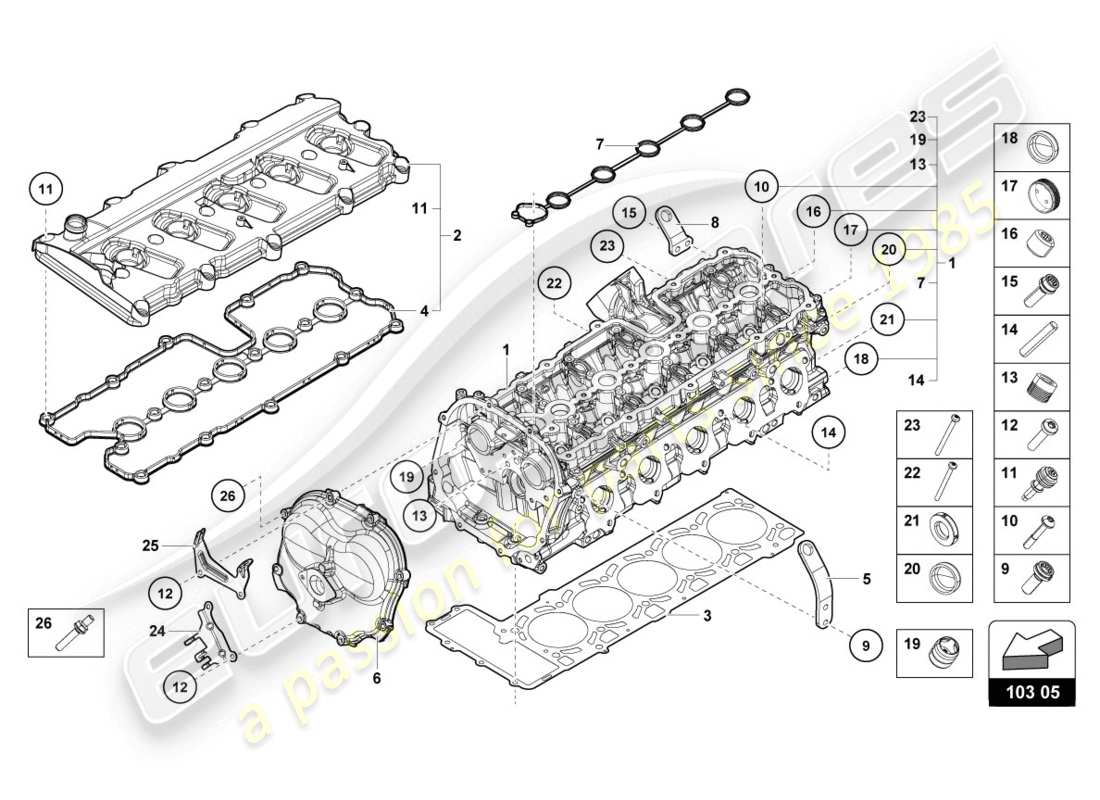

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 07L103064BK
                      COMPLETE CYLINDER HEAD
                      CYLINDERS 1-5 RIGHT
                      from £6,347.43
                      from £6,347.43
                      # 002
                      MPN: 07L103472D
                      CYLINDER HEAD COVER WITH GASKET
                      RIGHT
                      from £481.61
                      from £481.61
                      # 003
                      MPN: 07L103383BB
                      CYLINDER HEAD GASKET
                      CYLINDERS 1-5 RIGHT
                      from £105.49
                      from £105.49
                      This part replaces part number 07L103383AG - and 1 more. Click to view details
                      # 004
                      MPN: 07L103484F
                      SEAL
                      from £31.12
                      from £31.12
                      # 005
                      MPN: 07L103390M
                      TRANSPORTATION SHACKLE
                      from £11.51
                      from £11.51
                      # 006
                      MPN: 07L109286M
                      COVER
                      RIGHT
                      from £181.57
                      from £181.57
                      # 007
                      MPN: 07L103650A
                      SEAL
                      CYLINDERS 1-5
                      from £13.84
                      from £13.84
                      # 008
                      MPN: 07L103390R
                      TRANSPORTATION SHACKLE
                      from £4.28
                      from £4.28
                      # 009
                      MPN: N91084201
                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
                      M8X25
                      from £2.13
                      from £2.13
                      # 010
                      MPN: N91127602
                      HEXAGON SOCKET FLAT HEAD BOLT
                      M6X35X16
                      from £1.27
                      from £1.27
                      # 011
                      MPN: 06B103831J
                      HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE
                      from £6.19
                      from £6.19
                      # 012
                      MPN: N91068001
                      HEXAGON SOCKET FLAT HEAD BOLT
                      M6X28
                      from £1.07
                      from £1.07
                      # 013
                      MPN: 07L109291
                      BUNGS
                      from £8.00
                      from £8.00
                      # 014
                      MPN: N0145555
                      THREADED PIN
                      M8X44
                      from £2.34
                      from £2.34
                      # 015
                      MPN: N91139201
                      SCREW WITH INT. SERRATIONS
                      M8X20
                      from £1.31
                      from £1.31
                      # 016
                      MPN: N10630302
                      SEALING PLUG
                      M10X1
                      from £2.34
                      from £2.34
                      # 017
                      MPN: 06B103113C
                      END CAP
                      26
                      from £5.41
                      from £5.41
                      # 018
                      MPN: N0119078
                      END CAP
                      14
                      from £0.92
                      from £0.92
                      # 019
                      MPN: 079103175H
                      NON-RETURN VALVE
                      from £19.07
                      from £19.07
                      # 020
                      MPN: 036103113A
                      END CAP
                      36,6
                      from £5.41
                      from £5.41
                      # 021
                      MPN: 06D103377
                      WASHER
                      from £3.55
                      from £3.55
                      # 022
                      MPN: WHT001411
                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                      M10X138
                      from £2.95
                      from £2.95
                      # 023
                      MPN: N10720801
                      ROUND-HEAD SCREW
                      from £0.66
                      from £0.66
                      # 024
                      -
                      ARM
                      # 025
                      -
                      ARM
                      # 026
                      MPN: N91184801
                      12-POINT SOCKET HEAD BOLT (COMBI)
                      M6X28-M6X10
                      from £1.98
                      from £1.98
