103.07.00 - breather line

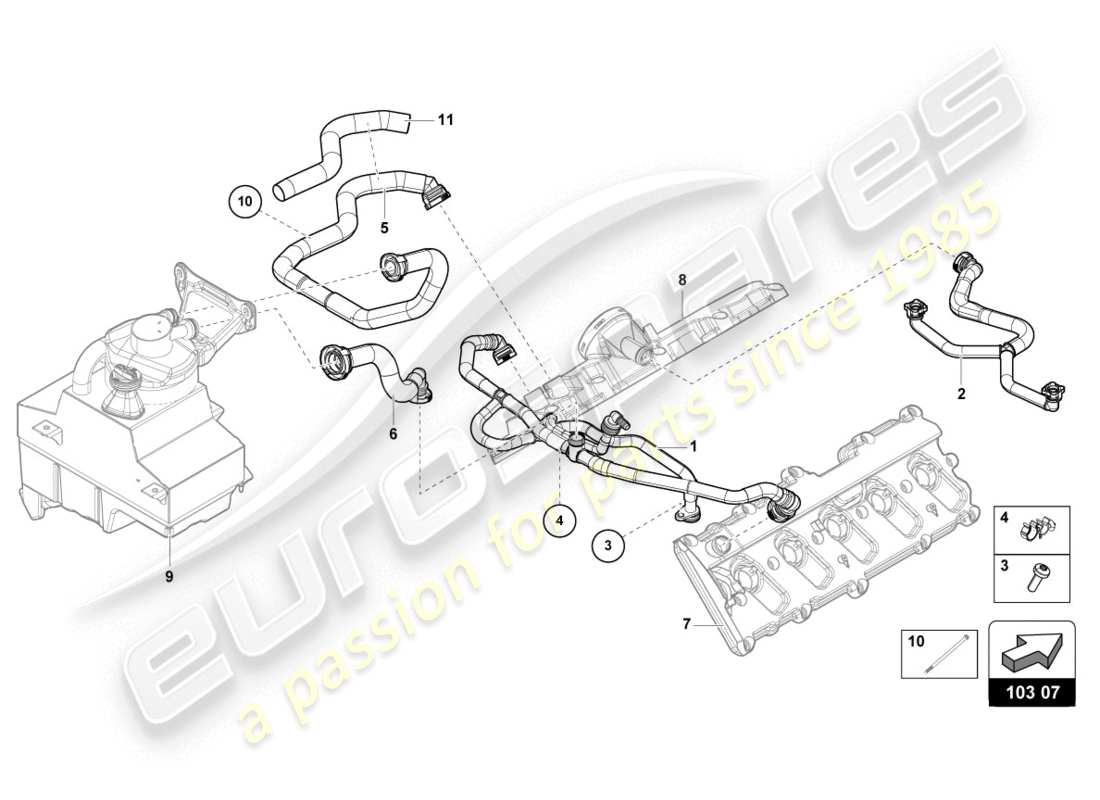

Lamborghini LP610-4 COUPE (2018) BREATHER LINE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L103209AC
VENT HOSE
from £143.10
from £143.10
# 002
MPN: 07L103209AB
VENT HOSE
from £48.69
from £48.69
# 003
MPN: N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
M6X18
from £0.78
from £0.78
# 004
MPN: N10733501
RETAINER FOR BREATHER HOSE
from £2.90
from £2.90
# 005
MPN: 4S0103218B
breather line
from £22.13
from £22.13
# 006
MPN: 4S0103211
breather line
from £16.34
from £16.34
# 007
-
CYLINDER HEAD COVER WITH GASKET
SEE ILLUSTRATION : 103.05-RIGHT
# 008
-
CYLINDER HEAD COVER WITH GASKET
SEE ILLUSTRATION : 103.06-LEFT
# 009
-
OIL CONTAINER
SEE ILLUSTRATION : 115.01
# 010
MPN: 8A0971850C
CABLE TIES
7,6X302
from £0.62
from £0.62
# 011
-
HEAT SHIELD
NOT FOR THIS MODEL
