109.04.00 - TIMING CHAIN

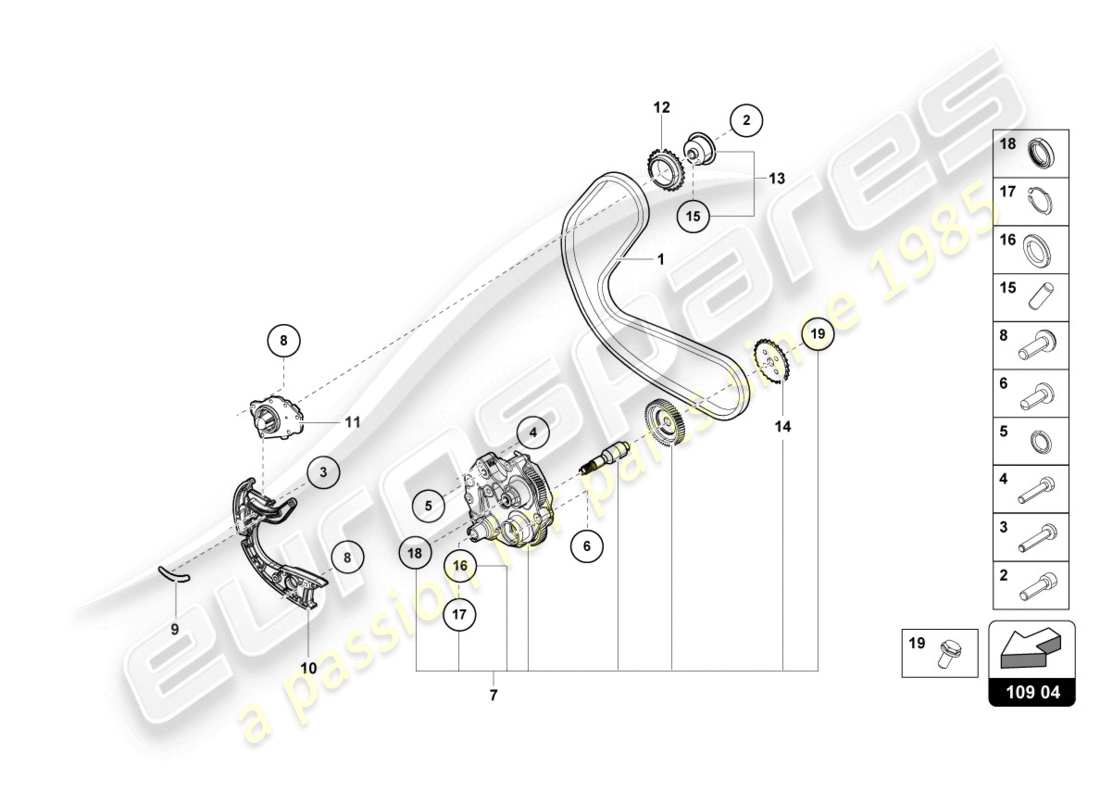

Lamborghini LP610-4 COUPE (2018) TIMING CHAIN Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 06E109465BA
              TIMING CHAIN
              LOWER CENTRE
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 002
              MPN: N10660901
              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
              M10X40
              from £4.28
              from £4.28
              TRIPLE SQUARE BOLT M10X40 Genuine Lamborghini - New In stock
              bolt, with polygon socket hd. (N 10660901) Genuine Porsche Part - New (to order)
              # 003
              MPN: N10554005
              ROUND HD. SCREW
              M6X35
              from £1.85
              from £1.85
              SCREW M6X35 Genuine Lamborghini - New In stock
              Genuine Porsche Part (no longer available to order)
              # 004
              MPN: N91119601
              SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
              M8X45
              from £2.81
              from £2.81
              12-POINT SOCKET Genuine Lamborghini - New In stock
              # 005
              MPN: N90740801
              O-RING
              7,65X1,78
              from £2.33
              from £2.33
              O RING Genuine Lamborghini - New In stock
              O-Ring (N 90740801) Genuine Porsche Part - New (to order)
              # 006
              MPN: N91046302
              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
              M8X28
              from £1.36
              from £1.36
              12-POINT SOCKET Genuine Lamborghini - New In stock
              bolt, with polygon socket hd. (N 91046302) Genuine Porsche Part - New (to order)
              # 007
              MPN: 07L109359T
              PLATE
              from £721.11
              from £721.11
              SUPPORTING PLATE Genuine Lamborghini - New (to order)
              # 008
              MPN: N10124304
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X20
              from £0.97
              from £0.97
              HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
              Oval hexagon socket head bolt (N 10124304) Genuine Porsche Part - New (to order)
              # 009
              MPN: 079109139M
              SEAL
              LOWER CENTRE
              from £6.19
              from £6.19
              GASKET Genuine Lamborghini - New In stock
              # 010
              MPN: 079109507AF
              CHAIN TENSIONER
              from £123.22
              from £123.22
              CHAIN TENSIONER Genuine Lamborghini - New (to order)
              # 011
              MPN: 079103337G
              BRACKET
              from £29.14
              from £29.14
              MOUNTING BRACKET Genuine Lamborghini - New (to order)
              # 012
              MPN: 079109570AT
              CHAIN SPROCKET
              Z=25
              from £58.37
              from £58.37
              SPROCKET Genuine Lamborghini - New (to order)
              # 013
              MPN: 06E109220A
              BEARING PIN
              from £53.79
              from £53.79
              BEARING PIN Genuine Lamborghini - New (to order)
              # 014
              MPN: 079109570AP
              CHAIN SPROCKET
              Z=25
              from £58.37
              from £58.37
              SPROCKET Genuine Lamborghini - New (to order)
              # 015
              MPN: N10478301
              CYLINDER PIN
              5X14
              from £0.89
              from £0.89
              PARALLEL PIN Genuine Lamborghini - New In stock
              # 016
              MPN: 079109135E
              SPACER BUSH
              from £9.08
              from £9.08
              BUSHING Genuine Lamborghini - New (to order)
              # 017
              MPN: N0124161
              SECURING RING
              16X1
              from £0.53
              from £0.53
              RETAINING RING Genuine Lamborghini - New In stock
              lock ring - 16 X 1 (N 0124161) Genuine Porsche Part - New (to order)
              # 018
              MPN: 079103051E
              SHAFT OIL SEAL
              from £25.73
              from £25.73
              SHIM Genuine Lamborghini - New In stock
              # 019
              MPN: N90893202
              FITTED BOLT, HEXAGON HEAD
              M10X20
              from £2.05
              from £2.05
              SCREW Genuine Lamborghini - New In stock
              fitted bolt, hex. head (N 90893202) Genuine Porsche Part - New (to order)
