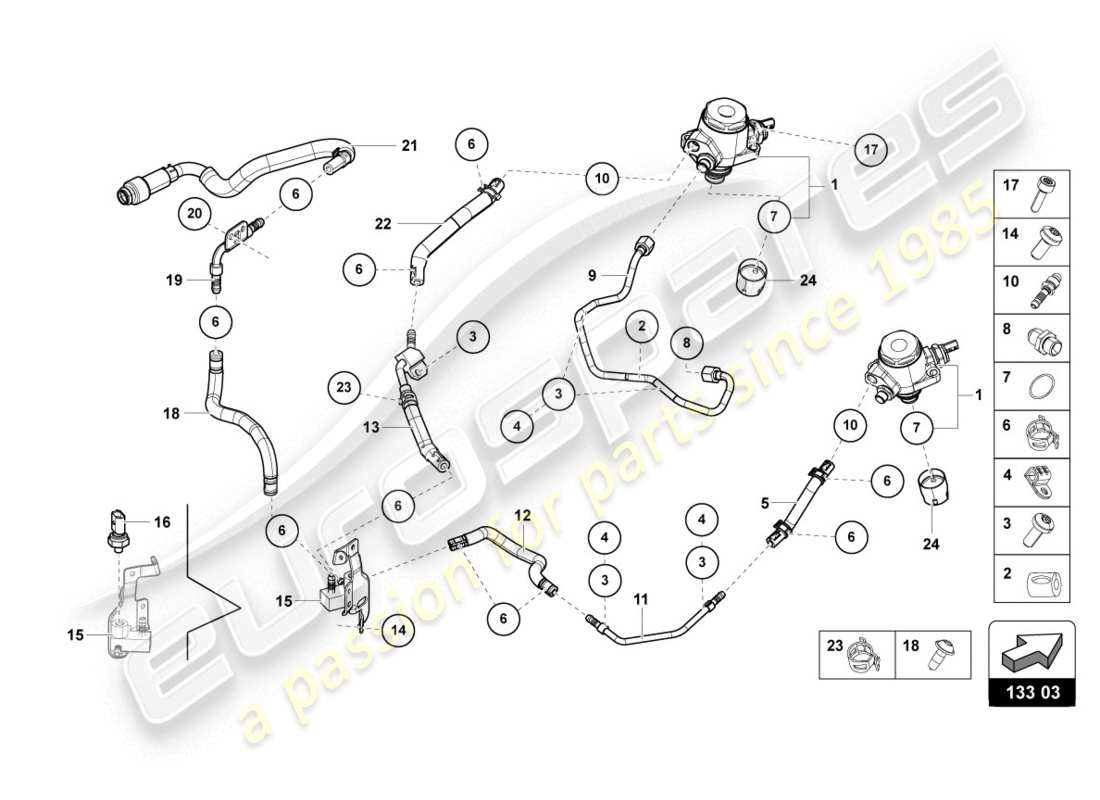

133.03.00 - fuel pump

Lamborghini LP610-4 COUPE (2018) FUEL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 07L127025H
              fuel pump
              Supersession
              Supersession
              # 002
              MPN: 079121129
              SPACER BUSH
              8X18X20
              from £2.09
              from £2.09
              # 003
              MPN: N10451408
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.95
              from £0.95
              # 004
              MPN: 07L127411E
              RETAINER FOR FUEL LINE
              from £9.08
              from £9.08
              # 005
              MPN: 07L127509BK
              FUEL HOSE
              RIGHT
              from £11.16
              from £11.16
              # 005
              MPN: 07L127509CF
              FUEL HOSE
              C6A-RIGHT
              from £41.68
              from £41.68
              # 006
              MPN: N90986501
              SPRING BAND CLAMP
              14,5X12
              from £1.51
              from £1.51
              # 007
              MPN: WHT005184
              O-RING
              31X2
              from £4.28
              from £4.28
              # 008
              MPN: 07L127065
              ADAPTER
              from £8.17
              from £8.17
              # 009
              MPN: 07L127501BJ
              FUEL LINE
              RIGHT
              from £60.02
              from £60.02
              # 009
              MPN: 07L127501BQ
              FUEL LINE
              LEFT
              from £106.36
              from £106.36
              # 010
              MPN: 06E127065C
              CONNECTOR UNION
              Ø5
              from £6.75
              from £6.75
              # 011
              MPN: 07L127509BR
              FUEL LINE
              RIGHT
              from £26.81
              from £26.81
              # 012
              MPN: 07L127509BE
              FUEL HOSE
              5 LAYER-RIGHT
              from £18.33
              from £18.33
              # 012
              MPN: 07L127509CG
              FUEL HOSE
              C6A-RIGHT
              from £55.60
              from £55.60
              # 013
              MPN: 07L127509CD
              FUEL HOSE
              LEFT
              from £119.32
              from £119.32
              # 013
              MPN: 07L127509CH
              FUEL HOSE
              C6A-LEFT REAR
              from £176.39
              from £176.39
              # 014
              MPN: N10405604
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X14
              from £0.86
              from £0.86
              # 015
              MPN: 07L127503AE
              Fuel Rail
              CENTRE/REAR
              from £68.92
              from £68.92
              # 016
              MPN: 06E906051K
              LOW-PRESSURE SENSOR
              from £71.60
              from £71.60
              # 017
              MPN: N91076601
              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
              M8X30-M8X30
              from £1.96
              from £1.96
              # 018
              MPN: 07L127509AN
              FUEL HOSE
              LEFT
              from £63.73
              from £63.73
              # 018
              MPN: 07L127509CK
              FUEL HOSE
              C6A-LEFT REAR
              from £83.44
              from £83.44
              # 019
              MPN: 07L127503AC
              Fuel Rail
              from £37.49
              from £37.49
              # 020
              MPN: N90925202
              HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
              6X16
              from £0.53
              from £0.53
              # 021
              MPN: 07L201215A
              FUEL LINE
              from £27.06
              from £27.06
              # 021
              MPN: 07L201215C
              FUEL LINE
              C6A
              from £47.91
              from £47.91
              # 022
              MPN: 07L127509BQ
              FUEL HOSE
              LEFT
              Supersession
              Supersession
              # 022
              MPN: 07L127509CJ
              FUEL HOSE
              C6A-LEFT REAR
              from £11.72
              from £11.72
              # 023
              MPN: N91020301
              SPRING BAND CLAMP
              14,5X12
              from £1.32
              from £1.32
              # 024
              MPN: 06L109311
              TAPPETS
              from £34.67
              from £34.67
