lamborghini lp610-4 coupe (2018) lifting device parts diagram

403.01.00 - LIFTING DEVICE

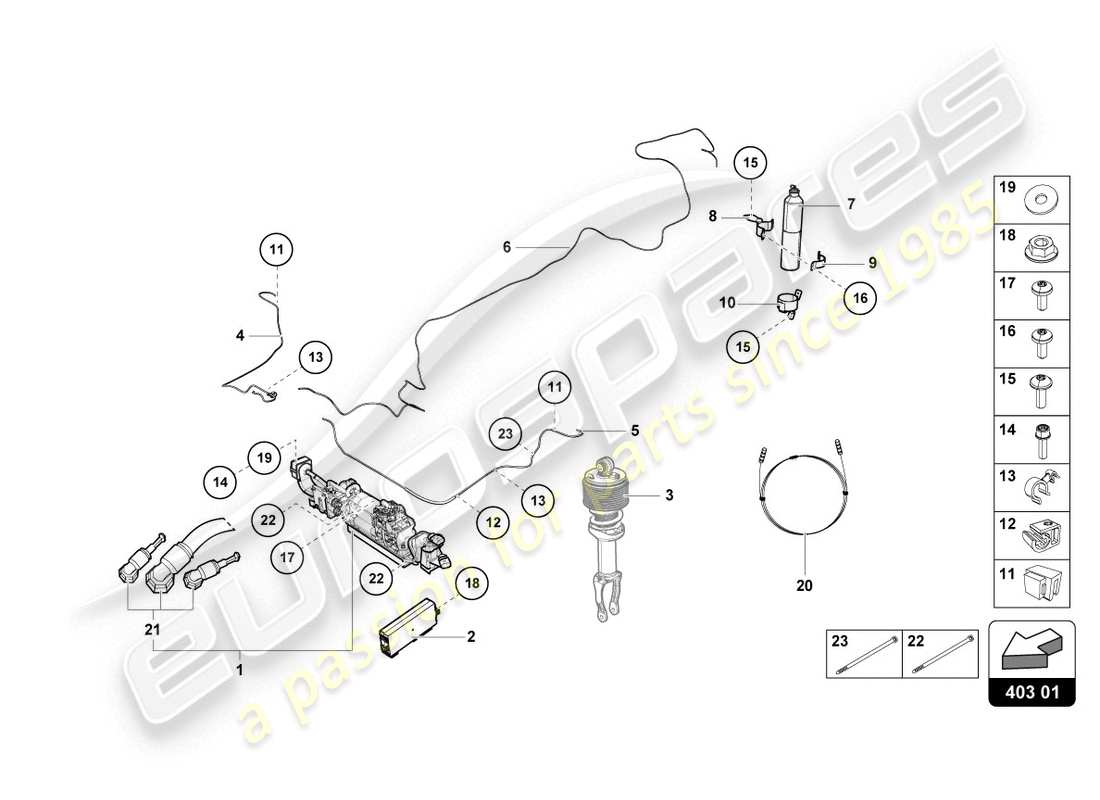

Lamborghini LP610-4 COUPE (2018) LIFTING DEVICE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 4T0616007A
                HYDRAULIC PUMP
                from £2,275.03
                from £2,275.03
                # 002
                MPN: 4S0959257A
                CONTROL UNIT
                FROM VIN 5186
                from £704.75
                from £704.75
                # 003
                -
                SHOCK ABSORBER
                SEE ILLUSTRATION : 411.01
                # 004
                MPN: 4S0616620A
                PRESSURE HOSE
                RIGHT FRONT
                from £9.91
                from £9.91
                # 005
                MPN: 4S0616619A
                PRESSURE HOSE
                LEFT FRONT
                from £11.41
                from £11.41
                # 006
                -
                PRESSURE HOSE
                CANNOT BE SOLD; INCLUDED IN REF.: 20-REAR LHD
                # 006
                -
                PRESSURE HOSE
                CANNOT BE SOLD; INCLUDED IN REF.: 20-REAR RHD
                # 007
                MPN: 4S0616203
                PRESSURE ACCUMULATOR
                from £129.35
                from £129.35
                # 008
                MPN: 4S0616250B
                ARM
                from £25.87
                from £25.87
                # 009
                MPN: 4S0616251A
                ARM
                from £15.82
                from £15.82
                # 010
                MPN: 4S0616249B
                ARM
                from £59.45
                from £59.45
                # 011
                MPN: 5M0971838A
                CABLE TIE WITH TERMINAL SOCKET
                AMR + LS-4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE
                from £0.47
                from £0.47
                # 012
                MPN: 7LP611794
                BRACKET
                from £1.08
                from £1.08
                # 013
                MPN: N10567002
                CABLE TIES
                from £1.35
                from £1.35
                # 014
                MPN: N91048802
                SCREW WITH INT. SERRATIONS
                M8X20
                from £1.69
                from £1.69
                # 015
                MPN: N91096801
                HEXAGON SOCKET FLAT HEAD BOLT
                M6X20
                from £0.89
                from £0.89
                # 016
                MPN: N90780904
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X16
                from £0.82
                from £0.82
                # 017
                MPN: N10714801
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X18
                from £0.56
                from £0.56
                # 018
                MPN: N10017304
                HEXAGON COLLAR NUT
                M5
                from £1.08
                from £1.08
                # 019
                MPN: N90033308
                WASHER
                8.4X20X2.5
                from £0.81
                from £0.81
                # 020
                MPN: 4E0698141
                REPAIR SET FOR AIR CHANNEL
                4X1
                from £74.53
                from £74.53
                # 021
                MPN: 4T0698030
                1 SET REMOVABLE HOUSING
                3X L- CONNECTOR 415 910 053 4 WITH 3X VOSS- CONNECTOR 893 803 820 0 (FOR TUBE Ø4) 1X L- CONNECTOR 415 907 050 4 WITH 1X VOSS- CONNECTOR 893 803 821 0 (FOR TUBE Ø6)
                from £364.89
                from £364.89
                # 022
                MPN: 893971850C
                CABLE TIES
                4,6X200
                from £0.53
                from £0.53
                This part replaces part number 008830305
                # 023
                MPN: N90937701
                CABLE TIES
                4.6X193 OUTER
                from £1.04
                from £1.04
