505.01.00 - rear axle

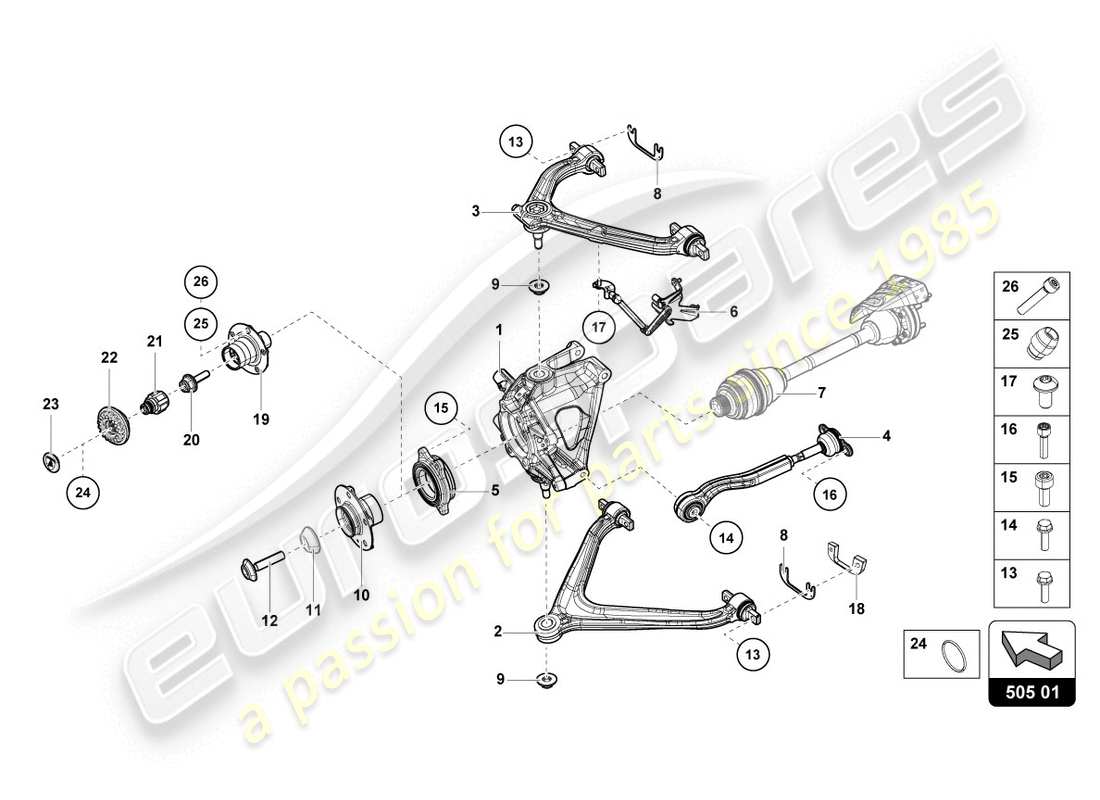

Lamborghini LP610-4 COUPE (2018) REAR AXLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0505433E
WHEEL BEARING HOUSING
LEFT REAR
from £477.93
from £477.93
# 001
MPN: 4T0505434E
WHEEL BEARING HOUSING
RIGHT REAR
from £868.97
from £868.97
# 002
MPN: 4T0505311A
WISHBONE
CONTACT YOUR AREA MANAGER-LEFT LOWER
from £386.50
from £386.50
# 002
MPN: 4T0505312A
WISHBONE
CONTACT YOUR AREA MANAGER-RIGHT LOWER
from £386.50
from £386.50
# 003
MPN: 4T0505323
WISHBONE
CONTACT YOUR AREA MANAGER-LEFT UPPER
from £369.20
from £369.20
# 003
MPN: 4T0505324
WISHBONE
CONTACT YOUR AREA MANAGER-RIGHT UPPER
from £732.35
from £732.35
# 004
MPN: 4T0501529B
TRACK ROD
from £374.39
from £374.39
This part replaces part number 4T0501529A
# 005
MPN: 8K0407625Q
DUOBLE BALL BEARING
Supersession
Supersession
This part replaces part number 8K0407625N
# 006
MPN: 4S0941273D
LEVEL SENSOR WITH POLES
LEFT
from £138.78
from £138.78
# 006
MPN: 4S0941274D
LEVEL SENSOR WITH POLES
RIGHT
from £76.33
from £76.33
# 007
-
AXLE SHAFT
# 008
MPN: 4S0407203C
BALANCING PLATE
1,0 MM-1MM
from £4.88
from £4.88
# 008
MPN: 4S0407203D
BALANCING PLATE
2,0 MM-2MM
from £4.88
from £4.88
# 008
MPN: 4S0407203E
BALANCING PLATE
3,0 MM-3MM
from £4.88
from £4.88
# 008
MPN: 4S0407203G
BALANCING PLATE
0,5 MM-0,5MM
from £4.88
from £4.88
# 009
MPN: WHT004898
HEXAGON COLLAR NUT SELF-LOCKING
M14X1,5-M14X1,5
from £3.77
from £3.77
# 010
MPN: 8K0407613B
WHEEL HUB
from £99.63
from £99.63
# 011
-
LENGTH-MEASURING DEVICE
# 012
MPN: 8E0407643A
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M16X72-M16X1,5X72
from £4.61
from £4.61
# 013
MPN: N10706902
HEXAGON FLANGE SCREW
M10X40-M10X55
from £2.32
from £2.32
# 013
MPN: WHT007142
HEXAGON BOLT
M10X40-M10X40
from £5.10
from £5.10
# 014
MPN: WHT002059
BOLT,HEX.HD.WITH SHOUL.(COMBI)
AM12X1,5X80-M12X1,5X80
from £3.16
from £3.16
# 015
MPN: WHT000237
BALL SCREW
M12X45-M12X1,5X45
from £3.93
from £3.93
# 016
MPN: N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40-M10X40
from £4.28
from £4.28
# 017
MPN: N10405604
OVAL HEXAGON SOCKET HEAD BOLT
M6X14-M6X14
from £0.79
from £0.79
# 018
-
COMPENSATING PIECE
# 019
-
WHEEL HUB
# 020
-
SHOULDERED BOLT
# 021
-
SUSPENSION BLOCKS
# 022
-
NUT
# 023
-
HUP CAP
# 024
MPN: 470698009
O-RING
from £5.93
from £5.93
# 025
MPN: 470615315
FOLLOWER
from £13.05
from £13.05
# 026
MPN: WHT008292
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
M6X16
from £1.21
from £1.21
