805.02.00 - CHASSIS

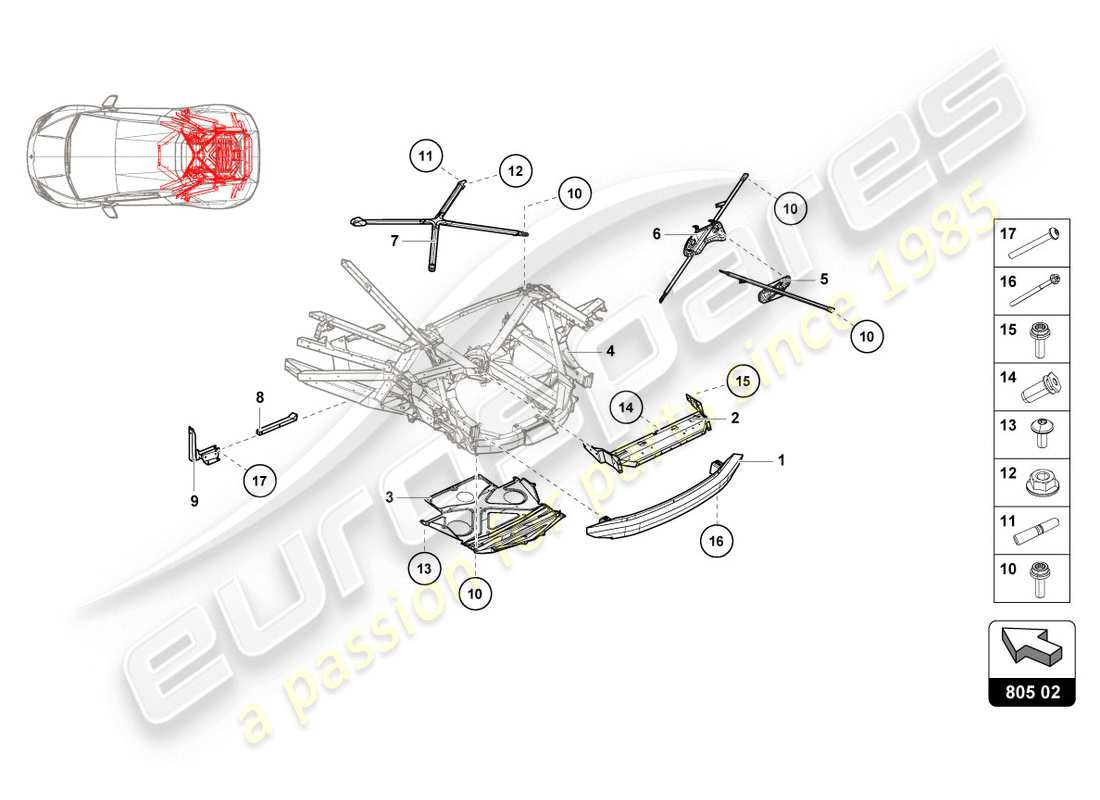

Lamborghini LP610-4 COUPE (2018) CHASSIS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0807313B
CROSS MEMBER
CONTACT YOUR AREA MANAGER-REAR
from £719.82
from £719.82
# 002
MPN: 4T8813335B
REAR CARRIER
CONTACT YOUR AREA MANAGER
from £1,464.75
from £1,464.75
# 003
MPN: 4S0825203D
UNDERBODY TRIM
CONTACT YOUR AREA MANAGER
from £126.02
from £126.02
# 004
-
Frame
# 005
MPN: 4S0813905C
BRACE
CONTACT YOUR AREA MANAGER
from £42.75
from £42.75
# 006
MPN: 4S0813906C
BRACE
CONTACT YOUR AREA MANAGER
from £77.73
from £77.73
# 007
MPN: 4T8814587E
SUPPORT ELEMENT
from £295.71
from £295.71
# 008
MPN: 4T0801781B
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT
from £49.54
from £49.54
# 008
MPN: 4T0801782B
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT
from £49.54
from £49.54
# 009
MPN: 4T0814541G
BRACKET
CONTACT YOUR AREA MANAGER-LEFT
from £42.29
from £42.29
# 009
MPN: 4T0814542B
BRACKET
CONTACT YOUR AREA MANAGER-RIGHT
from £90.79
from £90.79
# 010
MPN: N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
from £0.92
from £0.92
# 011
MPN: N91145002
THREADED PIN
M8X42
from £2.21
from £2.21
# 012
MPN: N90798808
HEXAGON COLLAR NUT
M8
from £1.42
from £1.42
# 013
MPN: N91042302
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
from £0.63
from £0.63
# 014
MPN: 8H0806221
COMPENSATING PIECE
from £5.15
from £5.15
# 015
MPN: N91176701
INNER MULTIPOINT FITTING SCREW
M8X8.5X22
from £1.60
from £1.60
# 016
MPN: N10714501
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X90X80
from £1.28
from £1.28
# 017
MPN: N91097301
HEXAGON SOCKET FLAT HEAD BOLT
M6X45
from £1.25
from £1.25
# 018
-
RETAINING BRACKET
# 019
MPN: N10405604
OVAL HEXAGON SOCKET HEAD BOLT
M6X14
from £0.84
from £0.84
