lamborghini lp610-4 coupe (2018) air vent parts diagram

819.01.00 - AIR VENT

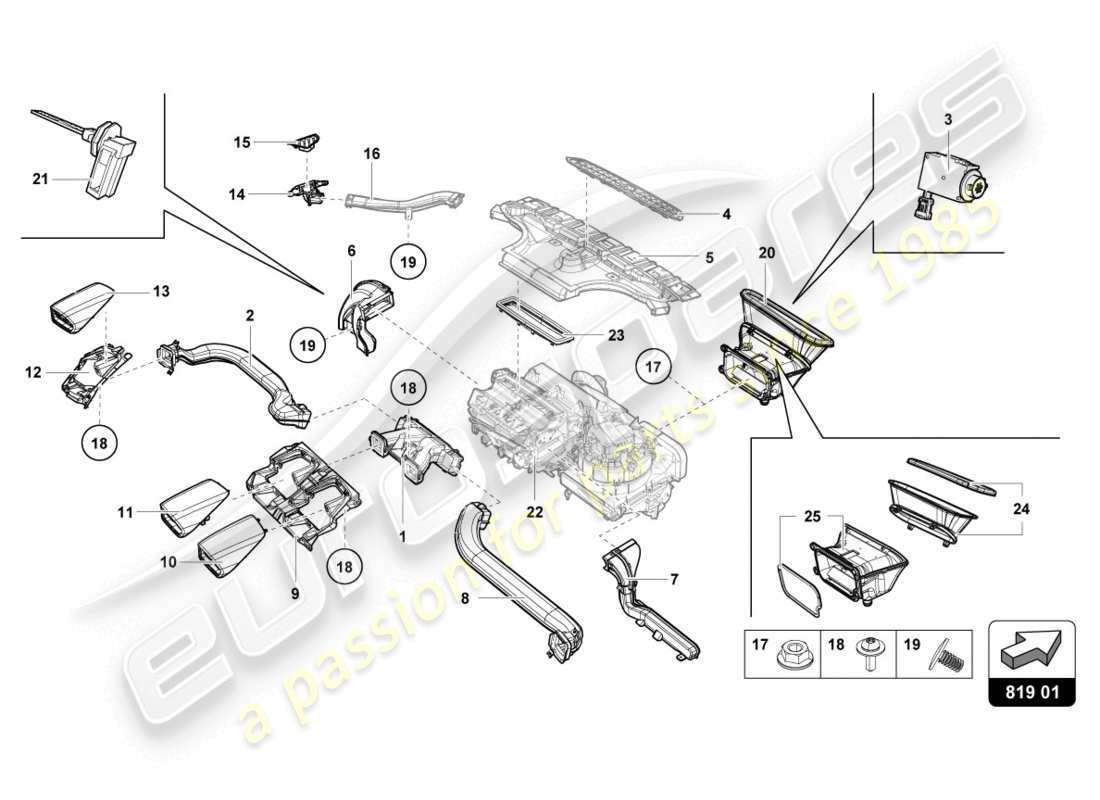

Lamborghini LP610-4 COUPE (2018) AIR VENT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 4T0819382A
              AIR GUIDE
              from £43.90
              from £43.90
              This part replaces part number 4T0819382 which we have in stock - and 2 more. Click to view details
              # 002
              MPN: 4T1819383A
              AIR GUIDE
              LEFT LHD (EUROPE, USA spec vehicles)
              from £39.14
              from £39.14
              # 002
              MPN: 4T2819383A
              AIR GUIDE
              LEFT RHD (UK spec vehicles)
              from £38.85
              from £38.85
              This part replaces part number 4T2819383 which we have in stock - and 1 more. Click to view details
              # 003
              MPN: 4H0907658B
              SENSOR FOR AIR QUALITY AND AIR HUMIDITY
              from £45.79
              from £45.79
              # 004
              -
              VENT GRILLE
              SEE ILLUSTRATION : 857.03-CENTER
              # 005
              -
              BLANKET
              SEE ILLUSTRATION : 857.03
              # 006
              MPN: 4T1819667
              AIR GUIDE CHANNEL
              LEFT LHD (EUROPE, USA spec vehicles)
              from £15.65
              from £15.65
              # 006
              MPN: 4T2819667A
              AIR GUIDE CHANNEL
              LEFT RHD (UK spec vehicles)
              from £14.03
              from £14.03
              # 007
              MPN: 4T1819668
              AIR GUIDE CHANNEL
              RIGHT LHD (EUROPE, USA spec vehicles)
              from £32.91
              from £32.91
              # 007
              MPN: 4T2819668
              AIR GUIDE CHANNEL
              RIGHT RHD (UK spec vehicles)
              from £28.44
              from £28.44
              # 008
              MPN: 4T1819384A
              AIR GUIDE CHANNEL
              RIGHT LHD (EUROPE, USA spec vehicles)
              from £29.91
              from £29.91
              # 008
              MPN: 4T2819384A
              AIR GUIDE CHANNEL
              RIGHT RHD (UK spec vehicles)
              from £39.90
              from £39.90
              This part replaces part number 4T2819384 which we have in stock - and 1 more. Click to view details
              # 009
              MPN: 4T0819267A
              ATTACHMENT BARS
              from £55.64
              from £55.64
              # 010
              MPN: 4T0819904B
              FRESH AIR VENT
              FORGED - SMALL FORGED CARBON PACKAGE-RIGHT
              from £991.53
              from £991.53
              # 010
              MPN: 4T0819904H
              FRESH AIR VENT
              SOUL 6PS & CHROME - STD-RIGHT
              from £310.42
              from £310.42
              # 010
              MPN: 4T0819904J
              FRESH AIR VENT
              FLEX METALLIC STEEL & CHROME-RIGHT
              from £310.42
              from £310.42
              # 010
              MPN: 4T0819904K
              FRESH AIR VENT
              DARK CHROME / LEATHER PACKAGE I + CHROME - AIR OUTLET STANDARD-RIGHT
              from £310.42
              from £310.42
              # 010
              MPN: 4T0819904L
              FRESH AIR VENT
              FLEX METALLIC STEEL & DARK CHROME-RIGHT
              from £325.97
              from £325.97
              # 010
              MPN: 4T0819904M
              FRESH AIR VENT
              CARBON PACK II + DARK CHROME-RIGHT
              from £1,010.55
              from £1,010.55
              # 011
              MPN: 4T0819903B
              FRESH AIR VENT
              FORGED - SMALL FORGED CARBON PACKAGE-LEFT
              from £1,802.79
              from £1,802.79
              # 011
              MPN: 4T0819903H
              FRESH AIR VENT
              SOUL 6PS & CHROME - STD-LEFT
              from £310.42
              from £310.42
              # 011
              MPN: 4T0819903J
              FRESH AIR VENT
              FLEX METALLIC STEEL & CHROME-LEFT
              from £310.42
              from £310.42
              # 011
              MPN: 4T0819903K
              FRESH AIR VENT
              DARK CHROME / LEATHER PACKAGE I + CHROME - AIR OUTLET STANDARD-LEFT
              from £310.42
              from £310.42
              # 011
              MPN: 4T0819903L
              FRESH AIR VENT
              LEFT
              from £325.97
              from £325.97
              # 011
              MPN: 4T0819903M
              FRESH AIR VENT
              CARBON PACK II + DARK CHROME-LEFT
              from £1,010.55
              from £1,010.55
              # 012
              MPN: 4T0819559B
              ARM
              SIDE, LEFT
              from £47.25
              from £47.25
              # 012
              MPN: 4T0819560B
              ARM
              SIDE, RIGHT
              from £82.58
              from £82.58
              # 013
              MPN: 4T0819705H
              FRESH AIR VENT
              SOUL 6PS - CHROME-LEFT
              from £310.42
              from £310.42
              # 013
              MPN: 4T0819705J
              FRESH AIR VENT
              FLEX METALLIC STEEL - CHROME-LEFT
              from £310.42
              from £310.42
              # 013
              MPN: 4T0819705K
              FRESH AIR VENT
              DARK CHROME-LEFT
              from £310.42
              from £310.42
              # 013
              MPN: 4T0819705L
              FRESH AIR VENT
              MAT PAINT-LEFT
              from £325.97
              from £325.97
              # 013
              MPN: 4T0819705Q
              FRESH AIR VENT
              CARBON PACK II + CHROME - DECAL - UNTIL VIN 09433 ORDER WITH RIGHT-LEFT
              from £1,850.34
              from £1,850.34
              # 013
              MPN: 4T0819705R
              FRESH AIR VENT
              DECAL - UNTIL VIN 09433 ORDER WITH RIGHT-LEFT
              from £1,122.31
              from £1,122.31
              # 013
              MPN: 4T0819706H
              FRESH AIR VENT
              SOUL 6PS - CHROME-RIGHT
              from £170.73
              from £170.73
              # 013
              MPN: 4T0819706J
              FRESH AIR VENT
              FLEX METALLIC STEEL - CHROME-RIGHT
              from £170.73
              from £170.73
              # 013
              MPN: 4T0819706K
              FRESH AIR VENT
              DARK CHROME-RIGHT
              from £310.42
              from £310.42
              # 013
              MPN: 4T0819706L
              FRESH AIR VENT
              MAT PAINT-RIGHT
              from £325.97
              from £325.97
              # 013
              MPN: 4T0819706Q
              FRESH AIR VENT
              CARBON PACK II + CHROME - DECAL - UNTIL VIN 09433 ORDER WITH LEFT-RIGHT
              from £1,850.34
              from £1,850.34
              # 013
              MPN: 4T0819706R
              FRESH AIR VENT
              DECAL - UNTIL VIN 09433 ORDER WITH LEFT-RIGHT
              from £1,941.13
              from £1,941.13
              # 014
              MPN: 4T0819945
              ARM
              SIDE, LEFT
              from £7.33
              from £7.33
              # 014
              MPN: 4T0819946
              ARM
              SIDE, RIGHT
              from £7.33
              from £7.33
              # 015
              MPN: 4T0819889B
              AIR GUIDE GRILLE
              LEFT
              from £84.39
              from £84.39
              # 015
              MPN: 4T0819890B
              AIR GUIDE GRILLE
              RIGHT
              from £84.39
              from £84.39
              # 016
              -
              AIR GUIDE CHANNEL
              SEE ILLUSTRATION : 857.03
              # 017
              MPN: N91173301
              HEX. NUT WITH WASHER
              from £1.15
              from £1.15
              # 018
              MPN: N10738101
              HEX SOCKET HEAD BOLT (COMBI)
              M5X16
              from £0.49
              from £0.49
              # 019
              MPN: 400863119
              BUNGS
              8X14,5
              from £0.50
              from £0.50
              This part replaces part number 008930807
              # 020
              -
              INTAKE DUCT
              INCLUDED IN REF.: 24 AND 25- RHD
              # 021
              MPN: 4B0820539
              TEMPERATURE SENSOR
              from £14.79
              from £14.79
              # 022
              -
              AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C SYSTEM
              SEE ILLUSTRATION : 820.01
              # 023
              MPN: 4T0819621
              BLANKET
              from £34.29
              from £34.29
              # 024
              MPN: 4T1820155A
              INTAKE DUCT
              LHD UPPER (EUROPE, USA spec vehicles)
              from £40.55
              from £40.55
              # 024
              MPN: 4T2820155
              INTAKE DUCT
              RHD UPPER (UK spec vehicles)
              from £61.35
              from £61.35
              # 025
              MPN: 4T1820582A
              INTAKE DUCT
              LHD LOWER (EUROPE, USA spec vehicles)
              from £79.18
              from £79.18
              # 025
              MPN: 4T2820582
              INTAKE DUCT
              RHD LOWER (UK spec vehicles)
              from £79.18
              from £79.18
