lamborghini lp610-4 coupe (2018) wing protector parts diagram

821.01.00 - WING PROTECTOR

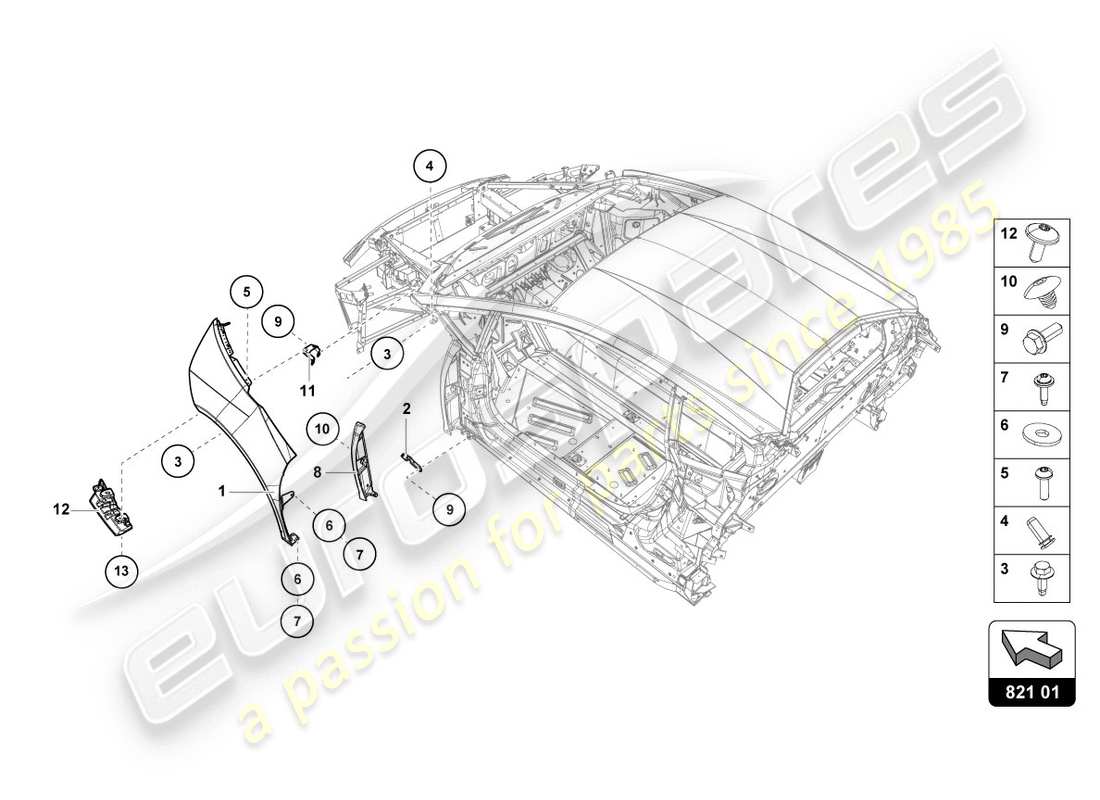

Lamborghini LP610-4 COUPE (2018) WING PROTECTOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 4T0821021D
    WING
    CONTACT YOUR AREA MANAGER-LEFT
    from £2,400.00
    from £2,400.00
    LEFT FRONT FENDER Genuine Lamborghini - New (to order)
    LEFT FRONT FENDER Genuine Lamborghini - Used In stock
    LEFT FRONT FENDER Genuine Lamborghini - Damaged In stock
    # 001
    MPN: 4T0821022D
    WING
    CONTACT YOUR AREA MANAGER-RIGHT
    from £2,100.00
    from £2,100.00
    RIGHT FRONT FENDER Genuine Lamborghini - New In stock
    RIGHT FRONT FENDER Genuine Lamborghini - Used In stock
    # 002
    MPN: 4T0821117C
    MUD WING COMPENSATION PLATE
    LEFT
    from £28.27
    from £28.27
    REINFORCEMENT Genuine Lamborghini - New (to order)
    # 002
    MPN: 4T0821118C
    MUD WING COMPENSATION PLATE
    RIGHT
    from £31.26
    from £31.26
    REINFORCEMENT Genuine Lamborghini - New (to order)
    # 003
    MPN: N91095301
    HEXAGON HEAD BOLT (COMBI)
    M6X40
    from £0.85
    from £0.85
    DUO BOLT W.WASHER Genuine Lamborghini - New In stock
    bolt, hex. hd. (combi.) (N 91095301) Genuine Porsche Part - New (to order)
    # 004
    MPN: 8H0806221
    COMPENSATING PIECE
    from £5.15
    from £5.15
    ADJUSTMENT PART Genuine Lamborghini - New In stock
    # 005
    MPN: N91140401
    HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
    M6X20
    from £1.06
    from £1.06
    HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
    Hexagon socket oval head bolt (N 91140401) Genuine Porsche Part - New (to order)
    # 006
    MPN: N01166623
    WASHER
    6,4X18X1,6
    from £0.91
    from £0.91
    This part replaces part number WHT000909
    WASHER Genuine Lamborghini - New In stock
    # 007
    MPN: N10558102
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
    M6X18
    from £2.55
    from £2.55
    HEXALOBULAR SOCKET HEAD BOLT Genuine Lamborghini - New In stock
    # 008
    MPN: 4T0806523A
    CLOSING PLATE
    LEFT
    from £16.14
    from £16.14
    Fender Foam Genuine Lamborghini - New In stock
    # 008
    MPN: 4T0806524A
    CLOSING PLATE
    RIGHT
    from £16.14
    from £16.14
    Fender Foam Genuine Lamborghini - New In stock
    # 009
    MPN: N90533005
    HEXAGON HEAD BOLT (COMBI)
    M6X20
    from £1.21
    from £1.21
    This part replaces part number N90533002
    HEXAGON HEAD BOLT M6X20-S1 Genuine Lamborghini - New In stock
    bolt, hex. hd. (combi.) (N 90533005) Genuine Porsche Part - New (to order)
    # 010
    MPN: N90584102
    BUNGS
    7,5X14,5X20,7
    from £0.60
    from £0.60
    FIXING PLUG A8.5X17.25X20.7 Genuine Lamborghini - New In stock
    plug (N 90584102) Genuine Porsche Part - New (to order)
    # 011
    MPN: 4T0821163B
    ARM
    LEFT
    from £10.99
    from £10.99
    BRACKET,FENDER Genuine Lamborghini - New In stock
    # 011
    MPN: 4T0821164B
    ARM
    RIGHT
    from £10.99
    from £10.99
    BRACKET,FENDER Genuine Lamborghini - New In stock
    # 012
    MPN: 4T0807283B
    BRACKET
    LEFT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 012
    MPN: 4T0807284B
    BRACKET
    RIGHT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 013
    MPN: N91042302
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X16
    from £0.63
    from £0.63
    HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
    Oval hexagon socket head bolt (N 91042302) Genuine Porsche Part - New In stock
