821.03.00 - WHEEL HOUSING TRIM

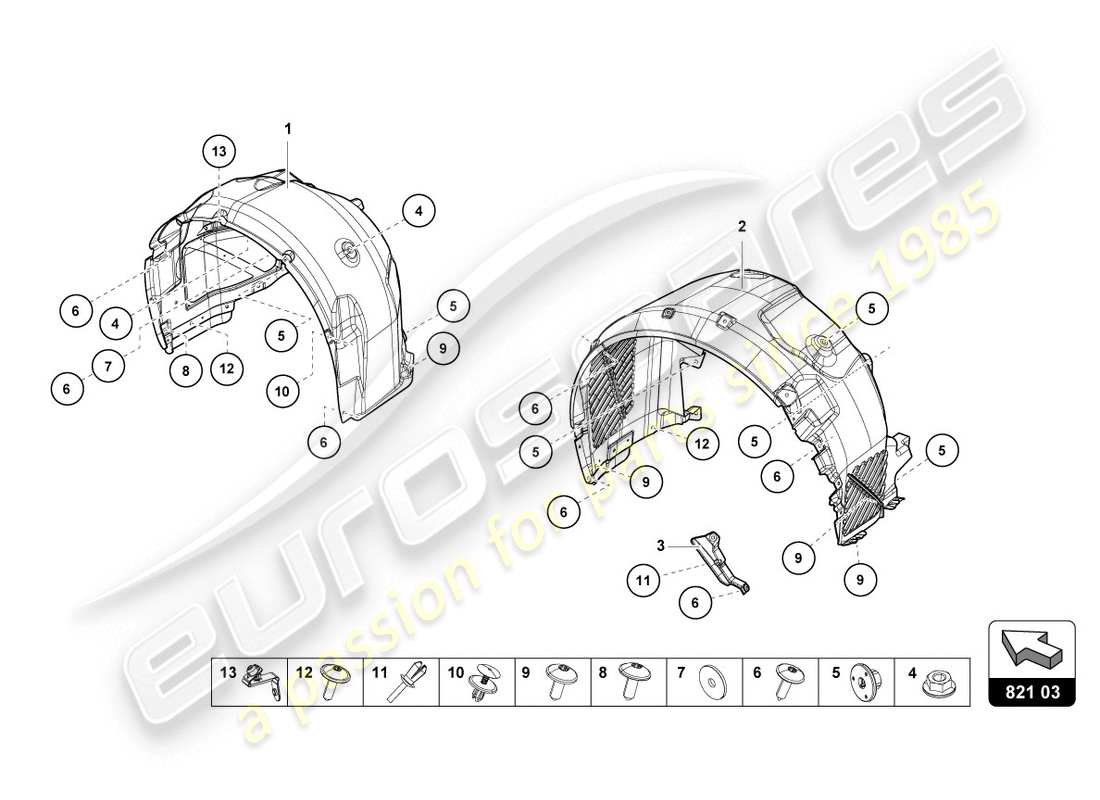

Lamborghini LP610-4 COUPE (2018) WHEEL HOUSING TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0821171C
WHEEL HOUSING LINER
LEFT FRONT
from £174.66
from £174.66
This part replaces part number 4T0821177
# 001
MPN: 4T0821172C
WHEEL HOUSING LINER
RIGHT FRONT
from £174.66
from £174.66
This part replaces part number 4T0821178 which we have in stock
# 002
MPN: 4T0810171A
WHEEL HOUSING LINER
LEFT REAR
from £174.66
from £174.66
# 002
MPN: 4T0810172A
WHEEL HOUSING LINER
RIGHT REAR
from £174.66
from £174.66
This part replaces part number 4T0810982 which we have in stock
# 003
MPN: 4T0806077A
TRIM FOR WHEEL APERTURE
LEFT (EUROPE, UK spec vehicles)
from £2.99
from £2.99
# 003
MPN: 4T0806078A
TRIM FOR WHEEL APERTURE
RIGHT (EUROPE, UK spec vehicles)
from £2.99
from £2.99
# 004
MPN: WHT000713
HEXAGON COLLAR NUT
from £1.11
from £1.11
# 005
MPN: WHT003207
HEXAGON PLASTIC COLLAR NUT
T5
from £1.10
from £1.10
# 006
MPN: N90775001
HEXAGON SOCKET HEAD PANEL BOLT
4,8X16
from £1.15
from £1.15
# 007
MPN: N90225901
WASHER
6,2X24X2 N902259
from £0.73
from £0.73
# 008
MPN: N90698605
HEXAGON SOCKET HEAD PANEL BOLT
ST4,2X16
from £0.95
from £0.95
# 009
MPN: N91042302
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
from £0.63
from £0.63
# 010
MPN: 701867299E
CLIP
from £0.53
from £0.53
# 011
MPN: N0385012
SPREADER RIVET
6X12
from £0.66
from £0.66
# 012
-
HEXAGON SOCKET HEAD BOLT
# 013
MPN: 8E0821989B
SECURING ELEMENT
from £0.56
from £0.56
