971.10.00 - FUSES

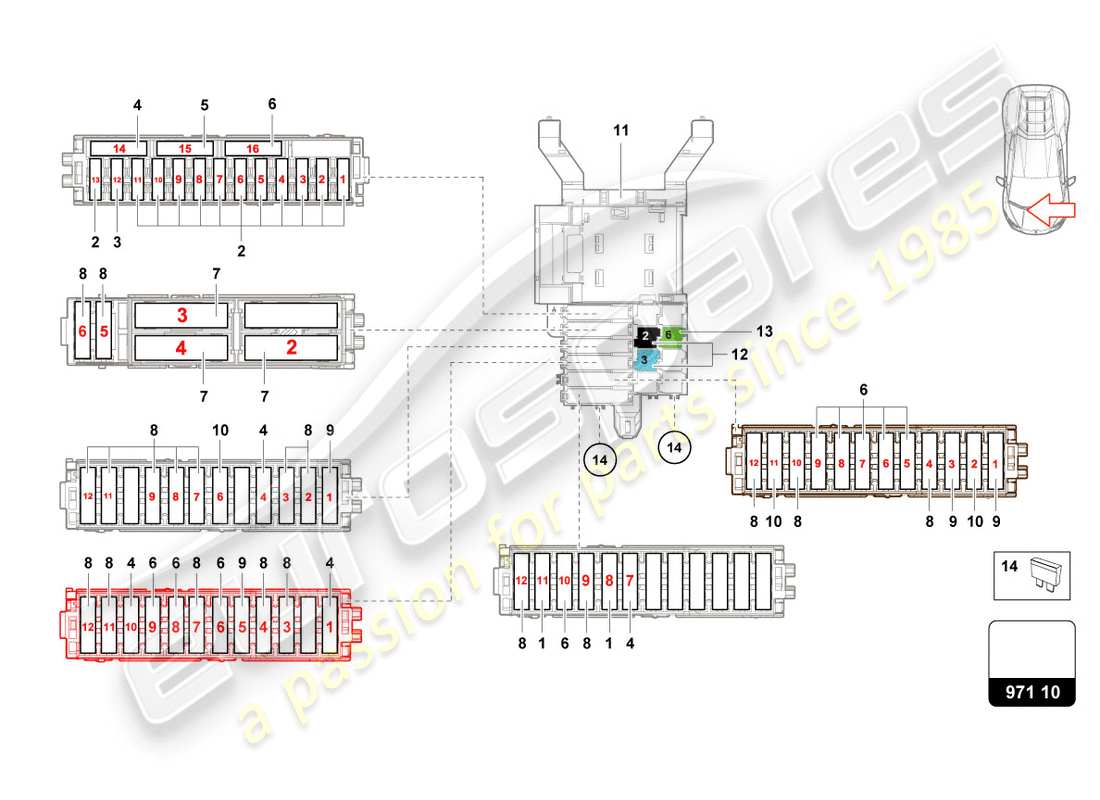

Lamborghini LP610-4 COUPE (2018) FUSES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N01713118
FLAT FUSE 19/2X5
7.5A-7.5A -BROWN-
from £0.80
from £0.80
# 002
MPN: N10261501
FLAT FUSE 10/2X2,8
5A MINI FUSE-5A -LT BROWN-
from £0.75
from £0.75
# 003
MPN: N10261507
FLAT FUSE 10/2X2,8
15A MINI FUSE-15A -LT BLUE-
from £0.81
from £0.81
# 004
MPN: N01713112
FLAT FUSE 19/2X5
15A-15A -LT BLUE-
from £0.77
from £0.77
# 005
MPN: N01713120
FLAT FUSE 19/2X5
40A-40A -ORANGE-
from £0.92
from £0.92
# 006
MPN: N01713115
FLAT FUSE 19/2X5
30A-30A-LT GREEN-
from £0.51
from £0.51
# 007
MPN: N10251901
FLAT FUSE 29/2X8
40A MAXI FUSE-40A -ORANGE-
from £3.63
from £3.63
# 008
MPN: N01713116
FLAT FUSE 19/2X5
5A-5A -LT BROWN-
from £0.72
from £0.72
# 009
MPN: N01713111
FLAT FUSE 19/2X5
10A-10A -RED-
from £0.77
from £0.77
# 010
MPN: N01713113
FLAT FUSE 19/2X5
20A-20A -YELLOW-
from £0.78
from £0.78
# 011
-
RETAINING BASE
# 012
MPN: 4H0951253C
RELAY
SPECIFY COLOR : BLUE OR BLACK- /646
from £15.47
from £15.47
# 013
MPN: 4H0951253
RELAY
GREEN- /644 100
from £15.47
from £15.47
# 014
MPN: 443937105B
THERMAL FUSE
15A-15A -LT BLUE-
from £15.27
from £15.27
