lamborghini lp610-4 coupe (2015) engine block parts diagram

103.02.00 - engine block

Lamborghini LP610-4 Coupe (2015) ENGINE BLOCK Parts Diagram

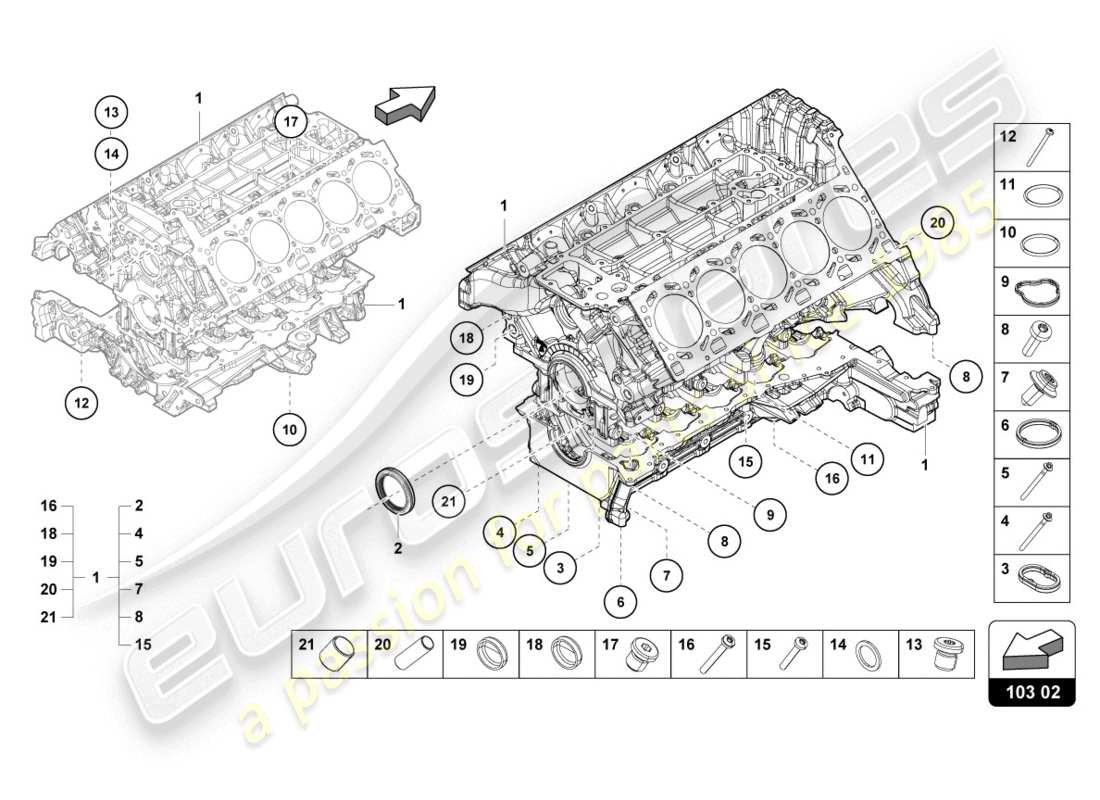

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 07L103011BQ
                CRANKCASE HOUSING
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 002
                MPN: 07L103051D
                SHAFT OIL SEAL
                55X74X10
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 003
                MPN: 07L103121S
                SEAL
                from £5.80
                from £5.80
                GASKET Genuine Lamborghini - New (to order)
                # 004
                MPN: WHT003328
                BEARING SCREW
                M10X116
                from £2.95
                from £2.95
                MAIN-BEARING BOLT Genuine Lamborghini - New In stock
                # 005
                MPN: WHT002235
                BEARING SCREW
                M10X125
                from £2.95
                from £2.95
                MAIN-BEARING BOLT Genuine Lamborghini - New In stock
                # 006
                MPN: 07L103121D
                SEAL
                from £6.19
                from £6.19
                GASKET Genuine Lamborghini - New (to order)
                # 007
                MPN: N90989102
                SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                M8X16
                from £2.09
                from £2.09
                SCREW Genuine Lamborghini - New In stock
                socket hd. screw with (N 90989102) Genuine Porsche Part - New (to order)
                # 008
                MPN: N10124306
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X20
                from £0.89
                from £0.89
                HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                Oval hexagon socket head bolt (N 10124306) Genuine Porsche Part - New In stock
                # 009
                MPN: 079103121AM
                SEAL
                from £10.38
                from £10.38
                GASKET Genuine Lamborghini - New (to order)
                # 010
                MPN: N90713202
                SEAL RING
                31X3
                from £2.95
                from £2.95
                O-RING Genuine Lamborghini - New In stock
                seal ring (N 90713202) Genuine Porsche Part - New (to order)
                # 011
                MPN: N91008501
                O-RING
                35X3
                from £4.91
                from £4.91
                O-RING Genuine Lamborghini - New In stock
                O-Ring (N 91008501) Genuine Porsche Part - New (to order)
                # 012
                MPN: N91097501
                HEXAGON SOCKET FLAT HEAD BOLT
                M6X85
                from £3.38
                from £3.38
                HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                Hexagon socket flat (N 91097501) Genuine Porsche Part - New (to order)
                # 013
                MPN: N91119401
                SEALING PLUG
                M10X1X10
                from £2.68
                from £2.68
                This part replaces part number N90281702
                SCREW PLUG Genuine Lamborghini - New In stock
                threaded plug (N 91119401) Genuine Porsche Part - New (to order)
                # 014
                MPN: N0138063
                SEAL RING
                10X14
                from £2.18
                from £2.18
                O-RING Genuine Lamborghini - New In stock
                seal ring (N 0138063) Genuine Porsche Part - New (to order)
                # 015
                MPN: N10582103
                OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD
                M6X40
                from £0.99
                from £0.99
                This part replaces part number N10331201 - and 1 more. Click to view details
                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                screw, csk. with polygon (N 10582103) Genuine Porsche Part - New In stock
                # 016
                MPN: N10470703
                ROUND HD. SCREW
                M6X50
                from £1.46
                from £1.46
                This part replaces part number N10470701
                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                round hd. screw (N 10470703) Genuine Porsche Part - New (to order)
                # 017
                MPN: 07L103271A
                CHOKE
                from £8.48
                from £8.48
                REDUCTION Genuine Lamborghini - New (to order)
                # 018
                MPN: N01190310
                END CAP
                from £0.84
                from £0.84
                COVER Genuine Lamborghini - New In stock
                sealing cap (N 01190310) Genuine Porsche Part - New (to order)
                # 019
                MPN: N0119078
                END CAP
                14
                from £0.92
                from £0.92
                COVER Genuine Lamborghini - New In stock
                sealing cap (N 0119078) Genuine Porsche Part - New (to order)
                # 020
                MPN: 055105277
                SPRING PIN
                from £1.34
                from £1.34
                BUSH Genuine Lamborghini - New In stock
                # 021
                MPN: 077115143D
                CENTRE SLEEVE
                10,4X12X12
                from £8.73
                from £8.73
                This part replaces part number 077115143
                SLEEVE Genuine Lamborghini - New (to order)
